LEGEND
POS.
DESCRIPTION
AR Air ow rate
POW SUPPY Power supply
HP Nominal power
kW Nominal consumption
Max kW Full load consumption
RLA Nominal Current
FLA Full load current
LRA Locked rotor current
TOTAL A Total current
CONNECTION Air connections
AIR T Air inlet temperature
AIR T MAX Max. air inlet temperature
AMB T Ambient temperature
AMB T MIN-MAX Min-Max. ambient
temperature
AIR W PRESS Air working pressure
POS.
DESCRIPTION
AIR PRESS MAX Max. air pressure
DEWP Pressure dew point
REF. Refrigerant
MAX FUSE Max fuse size
MINCIRCUIT
AMPACITY
Minimum circuit
ampacity
W Weight
EVAP. TEMP. Evaporation
Temperature
SUCTION TEMP. Suction Temperature
DISCH. PRESS. Discharge Pressure
HP SWITCH SETTING High pressure switch
setting
THERMOSTAT SWITCH
SETTING
Thermostat switch
setting

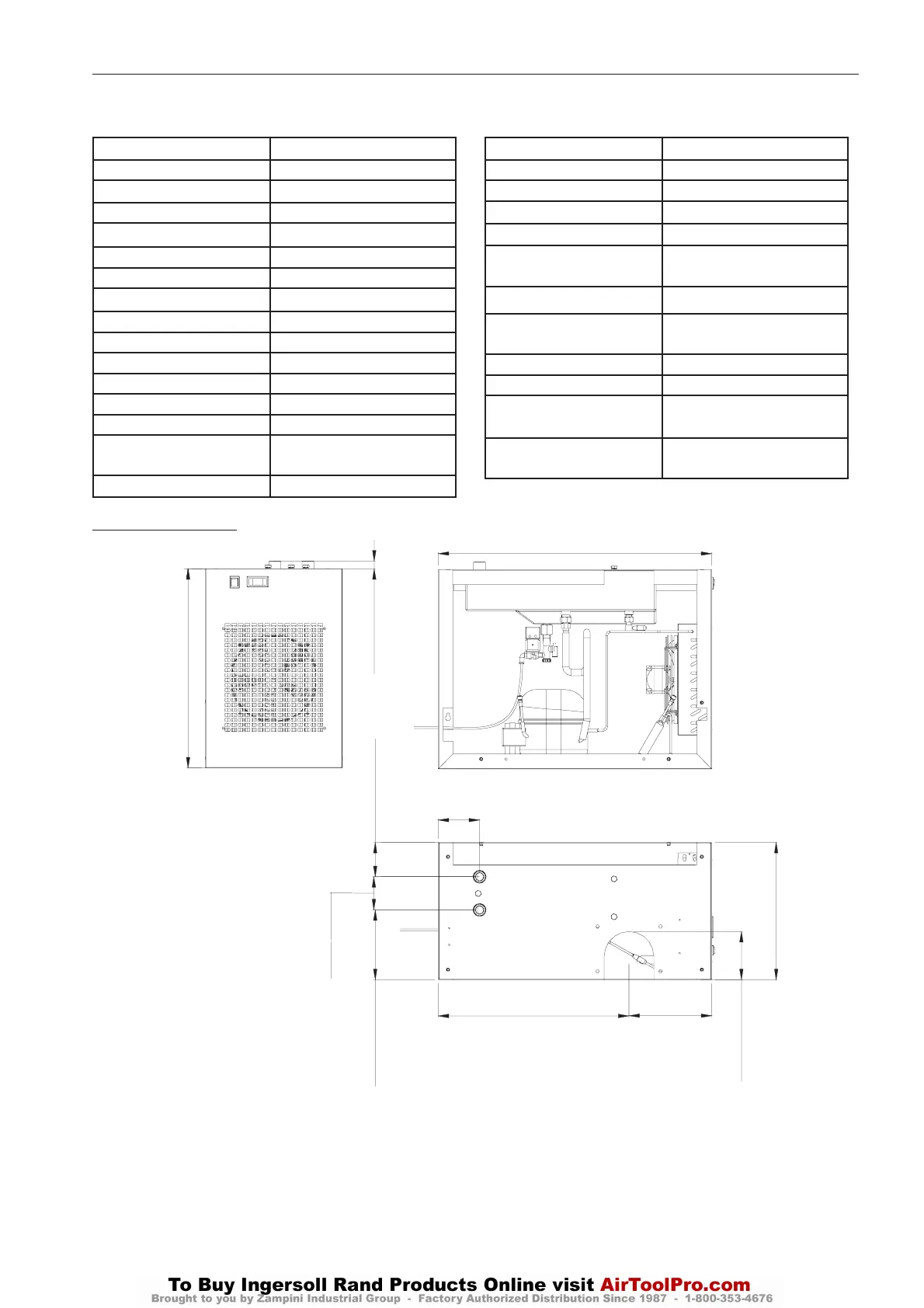

DRYER DIMENSIONS
AIR IN
AIR OUT
210 (8.27”)
145 (5.71”)
413 (16.28”)
100 (3.94”)
103 (4.07”)
600 (23.62”)
23 (0.91”)
576 (22.67”)
250 (9.85”)
125 (4.92”)
826 (32.52”)
38
DRYER OPTION
UP6 15, UP6 20, UP6 25, UP6 30
