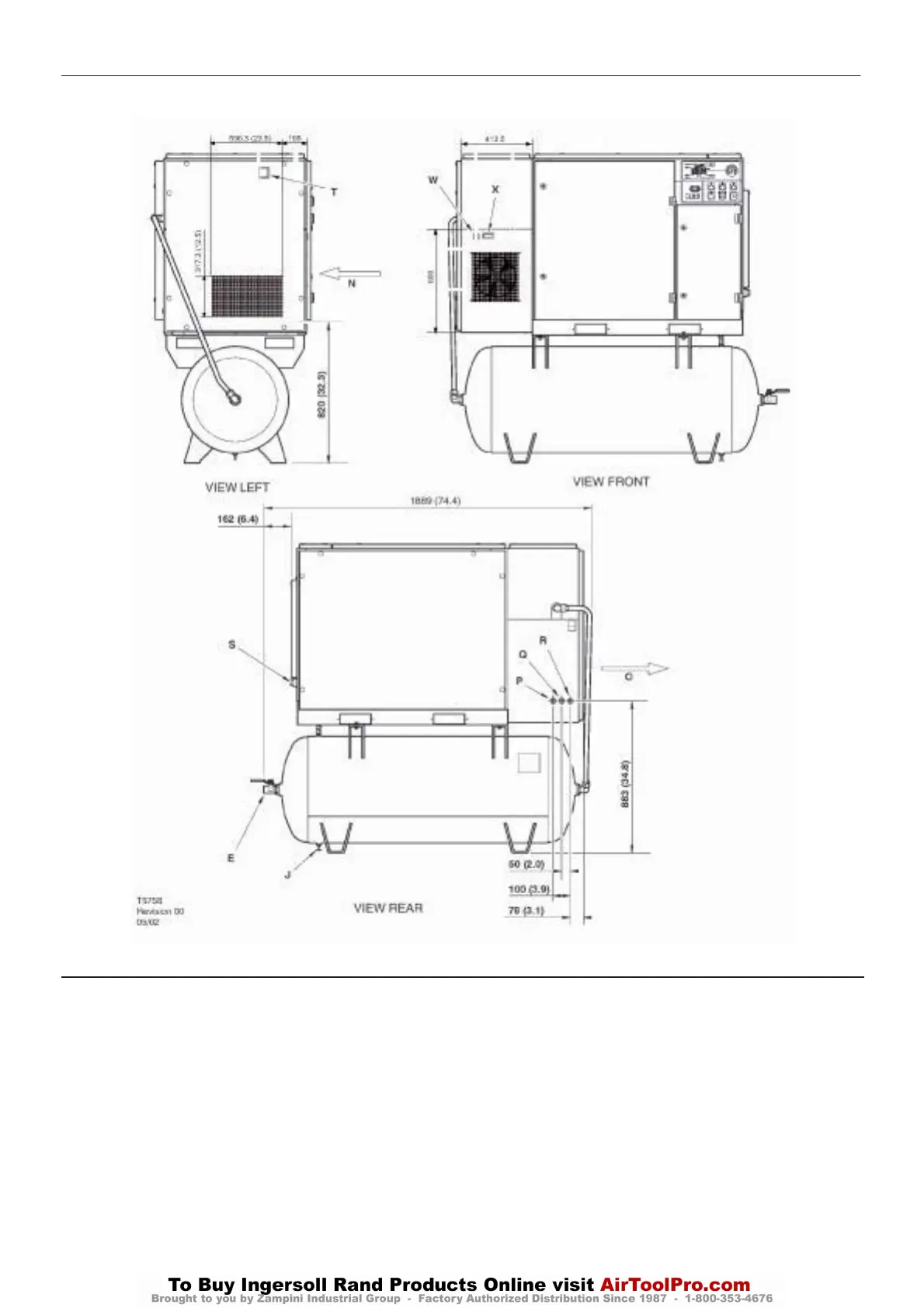

TANK MOUNTED (120 GALLON)
60 Hz UNITS
KEY
A Pre filter
B Compressor and cooling air intake
C Starter box
D Cooling air exhaust
E 1.00” BSPT air discharge
F Customer power inlet
G Fork lift openings
H Air receiver (120 gallons)
I Automatic drain valve
J Valve, drain
K Button, emergency stop
L Primary compressor service door
M Inspection port
N Dryer air inlet
O Dryer air exhaust
P 0.25 inch BSPT moisture separator drain
Q 0.25 inch BSPT dryer drain
R 0.25 inch BSPT air filter drain
S 1.00 inch NPT plug
T Filter restriction indicator
W Dryer On/Off switch
X Dew point indicator
DRYER OPTION
