Integra DHC-80.1 User Manual

19

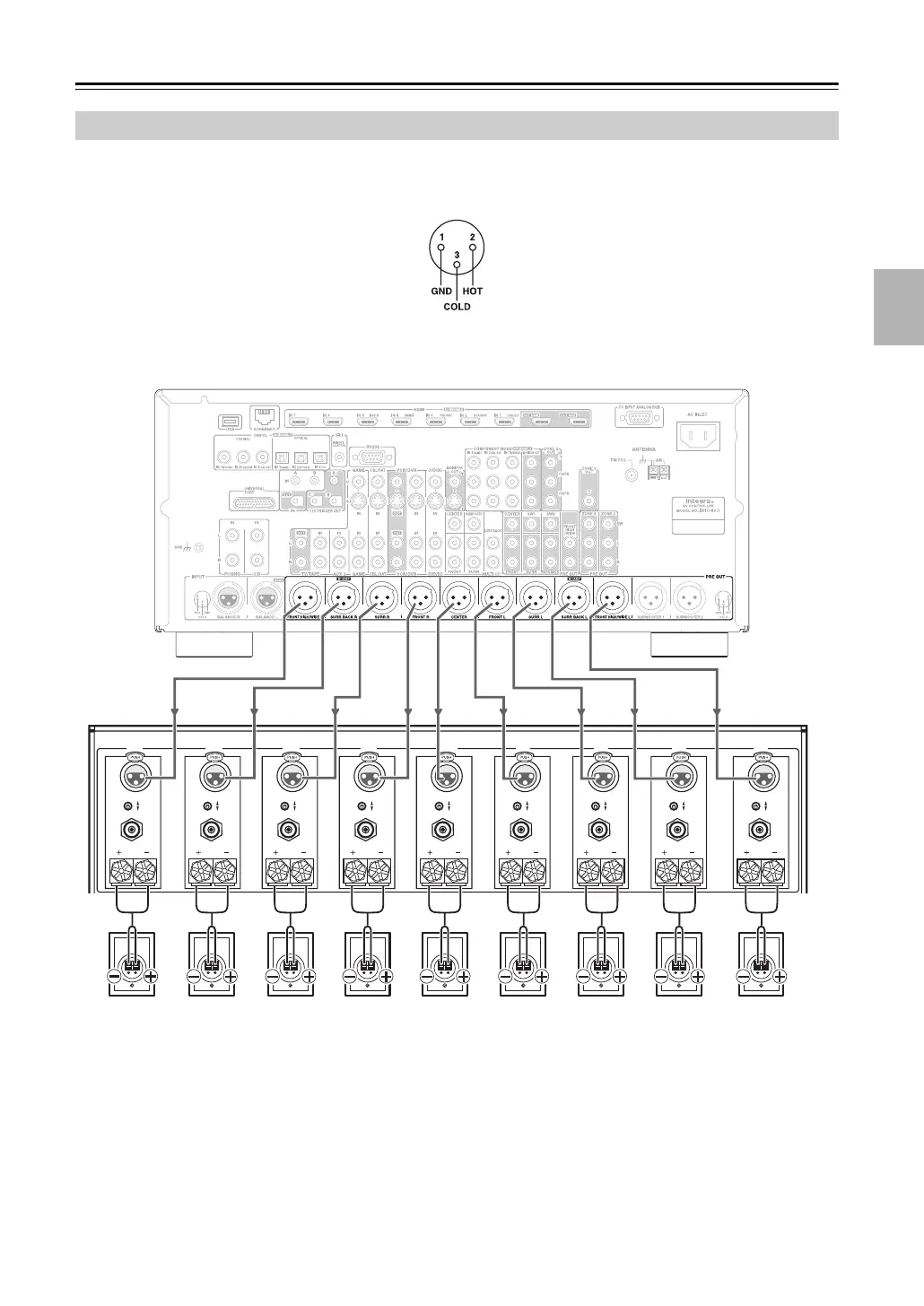

Connecting the AV controller—Continued
You can connect the AV controller to a multichannel power amplifier with balanced XLR input jacks by using several
XLR audio cables.
The AV controller’s balanced PRE OUT XLR jacks are wired as shown.
See your multichannel power amplifier’s instruction manual for more information on connecting speakers.
Note:
* Specify crossover frequency for the channel that you want to output in “Speaker Configuration” (see page 98).
Connecting a Power Amplifier with XLR Inputs
SPEAKER IMPEDANCE
4 OHMS MIN. PER EACH
SPEAKER TERMINAL
AC INLET
SEVEN CHANNEL AMPLIFIER
MODEL NO. RDA-7.1
INPUT
SELECT
FUSE
SURR OUND B A CK
RIGHT
SURR OUND
RIGHT
12V TRIGGER
IN OUT
SURR OUND
LEFT
CENTER
FR ONT
LEFT
SURR OUND B A CK
LEFT
FR ONT
RIGHT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT
FRONT HIGH/
FRONTWIDE
LEFT
INPUT
SELECT
OUTPUT
FRONT HIGH/
FRONT WIDE
RIGHT
INPUT
SELECT
OUTPUT
Surround
back right
speaker
AV controller
Multichannel
power amplifier
Surround
right
speaker
Front right
speaker
Center
speaker
Front left
speaker
Surround
left
speaker
Surround
back left
speaker
Front high/
Front wide
right speaker*
Front high/
Front wide
left speaker*
