Connecting the AV controller—Continued
■ CD Player or Turntable (MM) with Built-in Phono Preamp
• With connection , you can listen to and record audio from your CD player or listen in Zone 2 or Zone 3.
• To connect the CD player digitally, use connection or . (To record or listen in Zone 2 or Zone 3 as well,
use and , or and .)
■ Turntable (MM) with no Phono Preamp Built-in
The AV controller’s PHONO IN is designed for use with a mov-
ing magnet (MM) type cartridge.
Use an analog audio cable to connect the AV controller’s
PHONO IN L/R jacks to the audio output on your turntable.
Notes:
• If your turntable has a ground wire, connect it to the AV con-
troller’s GND screw. With some turntables, connecting the
ground wire may produce an audible hum.
If this happens, disconnect it.
• If your turntable has a moving coil (MC) type cartridge,
you’ll need a commercially available MC head amp or MC
transformer. Connect your turntable to the head amp or trans-
former, and connect that to the AV controller’s PHONO IN
L/R jacks.
• You can also use a phono equalizer to connect a turntable
with an MC-type cartridge. See your phono equalizer’s man-
ual for details.

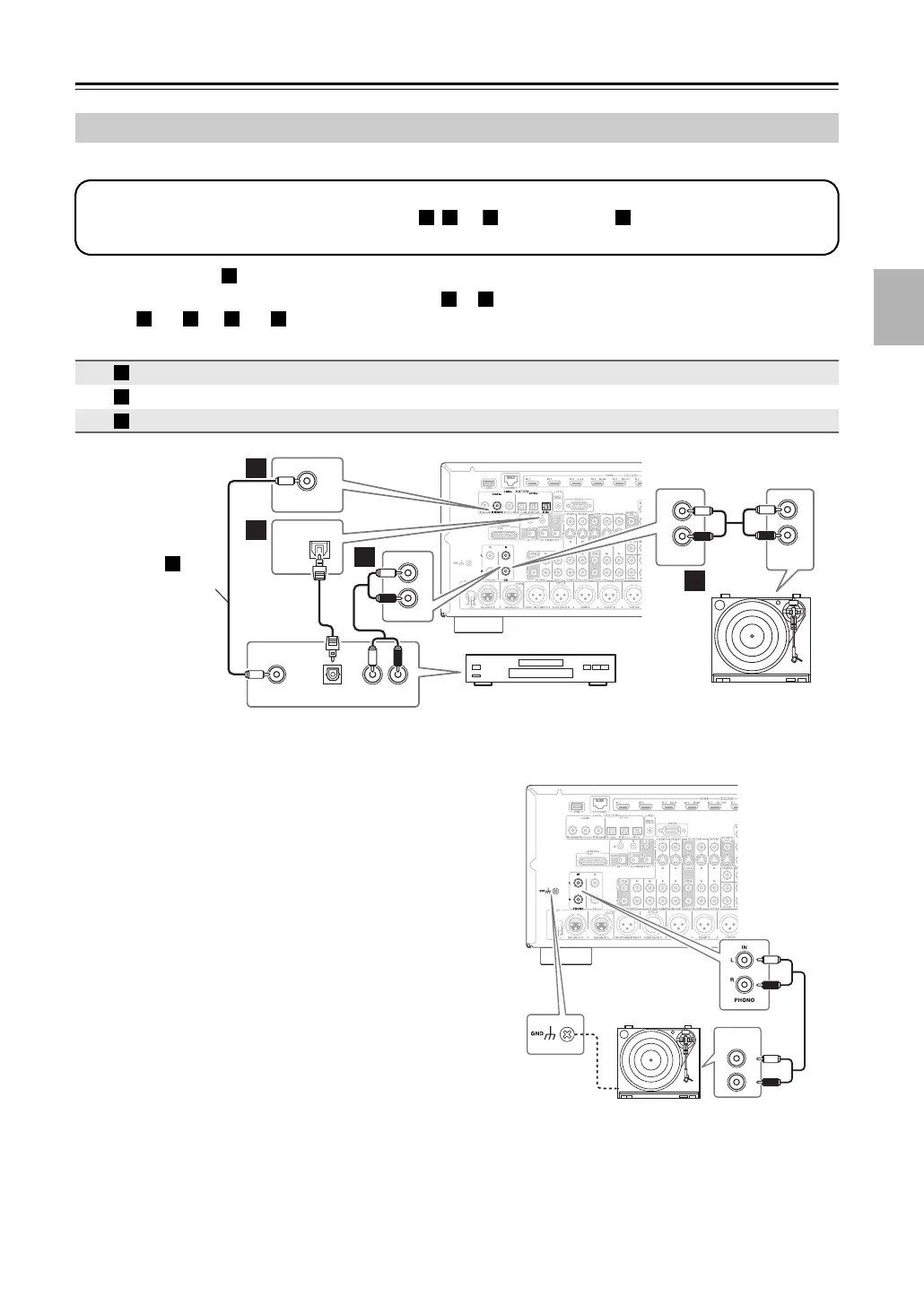

Connecting a CD Player or Turntable
Connection AV controller Signal flow CD or turntable
CD IN L/R ⇐ Analog audio L/R output
DIGITAL COAXIAL IN 2 (VCR/DVR) ⇐ Digital coaxial output
DIGITAL OPTICAL IN 3 (CD) ⇐ Digital optical output
Step 1:
Choose a connection that matches your CD player ( , , or ). Use connection for a turntable with a built-in
phono preamp.
a b c a
a
b c
a b a c
a
b
c
IN 3
(CD)
OPTICAL
IN
L
R
L
R
CD
AUDIO
OUTPUT
OPTICAL
OUT
AUDIO
OUT
LR
COAXIAL
OUT
L
R
IN
IN 2
COAXIAL
(VCR/DVR)
CD
a
b
a
c
Turntable (MM) with
built-in phono preamp
CD player
When you use
connection , you
need to assign the
digital audio input
(see page 49).
b
L
R
AUDIO
OUTPUT
Turntable (MM) with no
phono preamp built-in
