Integra DHC-80.1 User Manual

38

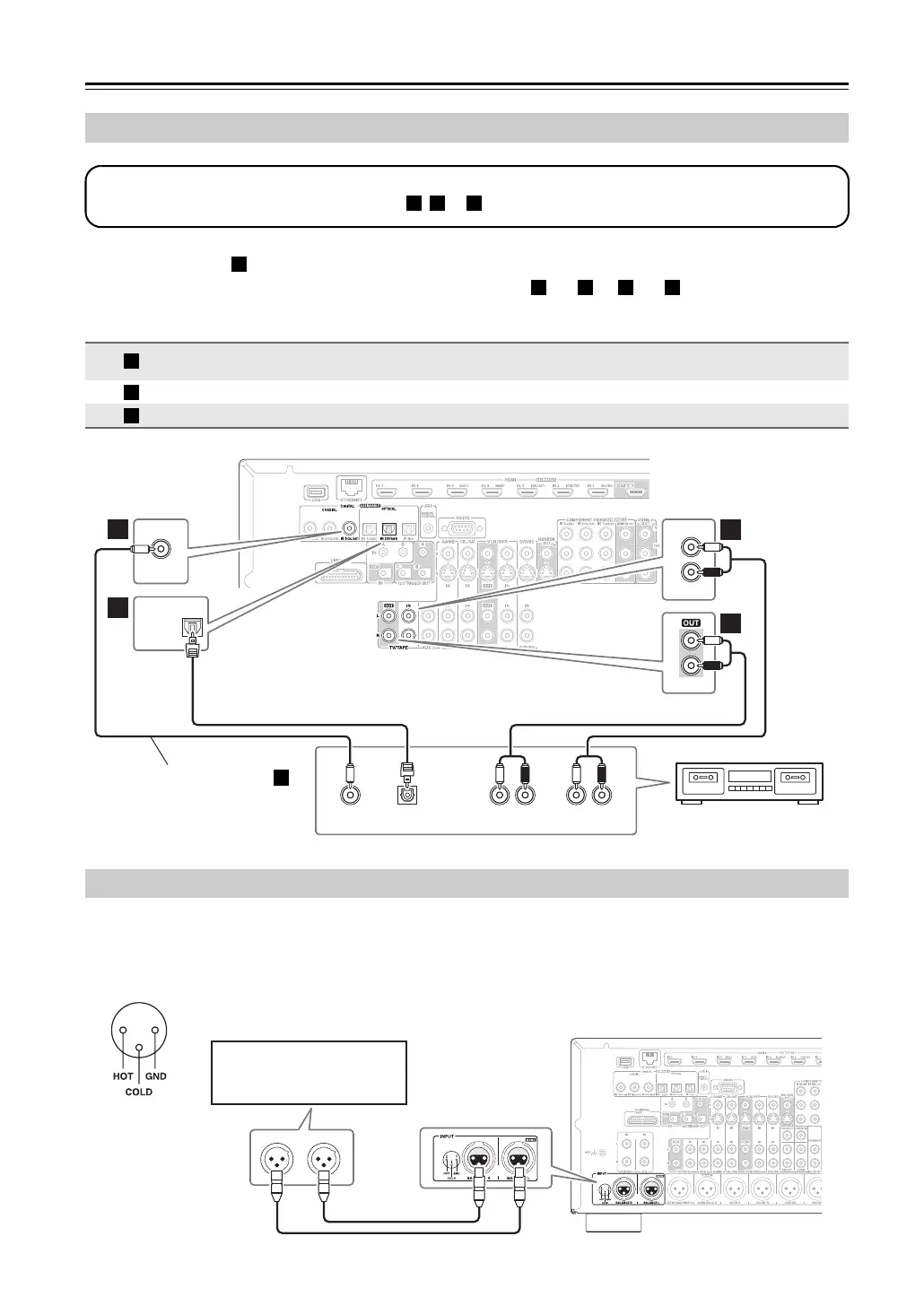

Connecting the AV controller—Continued
• With connection , you can play and record or listen in Zone 2 or Zone 3.
• To connect the recorder digitally for playback, use connections and , or and .
You can connect a balanced audio source to the AV controller’s BALANCE L/R XLR jacks by using two XLR audio
cables. To use the balanced input, you must assign it to an input selector (see page 50). If you connect a mono source,
use the BALANCE L XLR jack and set the “Input Channel” setting to “Mono(L)” (see page 50). The AV controller’s
balanced INPUT XLR jacks are wired as shown.
Connecting a Cassette, CDR, MiniDisc, or DAT Recorder
Step 1:
Choose a connection that matches the recorder ( , or ), and then make the connection.
a b c
a
a b a c
Connection AV controller Signal flow Cassette, CDR, MD, or DAT recorder
TV/TAPE IN L/R
TV/TAPE OUT L/R
⇐
⇒
Analog audio L/R output
Analog audio L/R input
DIGITAL COAXIAL IN 3 (CBL/SAT) ⇐ Digital coaxial output
DIGITAL OPTICAL IN 2 (TV/TAPE) ⇐ Digital optical output
Connecting a Balanced Audio Source
a
b
c
AUDIO
IN
L R
L
R
IN
TV/TAPE
AUDIO
OUT
L R
L
R
TV/TAPE
COAXIAL
OUT
OPTICAL
OUT
COAXIAL
OPTICAL
IN 3
(CBL/SAT)
IN 2
(TV/TAPE)
a
a
b
c
Cassette, CDR, MD, or
DAT recorder
When you use connection ,
you need to assign the digital
audio input (see page 49).
b
12
3
Stereo audio source with
balanced XLR output
