Server Board Overview Intel® Server Board S5500WB TPS
Revision 1.3
Intel order number E53971-004
8
2.2.1 Board Rear Connector Placement
The Intel
®
Server Board S5500WB has the following board rear connector placement:

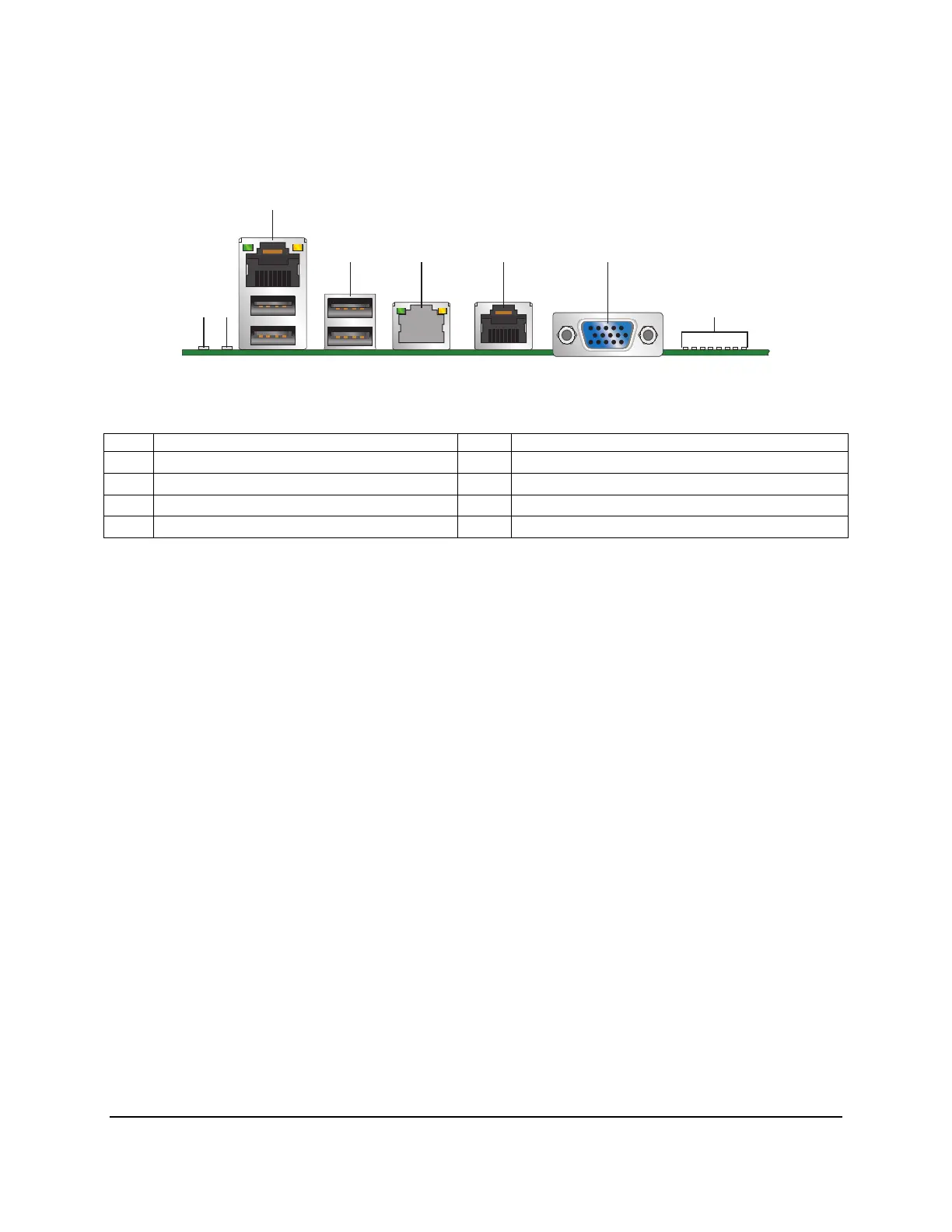

AF003052
C
A HB
DE F G
Figure 4. Rear Panel Connector Placement:
Description Description
A ID LED E RJ-45 GbE LAN connector
B Status LED F RJ-45 Serial port connector
C RJ-45 GbE/Dual USB connector G DB15 Video
D Dual USB connector H Diagnostic LEDs
2.2.2 Server Board Mechanical Drawings
The following figures are mechanical drawings for the Intel
®
Server Board S5500WB.
