• Threshold Settings
DVB Detect Level: displays and sets signal detection threshold level
when the DVB tracking mode is in use.
DVB Tracking Level: displays and sets signal tracking threshold
level when the DVB tracking mode is in use.
NBD Detect Level: displays and sets signal detection threshold
level when the NBD tracking mode is in use.
NBD Tracking Level: displays and sets signal tracking threshold
level when the NBD tracking mode is in use.
TX Enable Threshold: displays and sets up TX enable threshold.
Satellite View
This view provides information on the Satellite’s Information, Common Tracking,
Information, DVB and NBD Tracking Transponder, LNB Local Frequency, and the
Satellite Library. Some settings can be varied by model defendant on specic functions
of the antennas. This view shows a graphic UI of the current satellite at which the
antenna is pointing, and the satellites that are located at a 180° arc on the horizon
with reference to the current position (See gure 105).
Note: Based on the satellite EIRP footprint and the size of the antenna, you may
not be able to track all the satellites visible in 180° arc

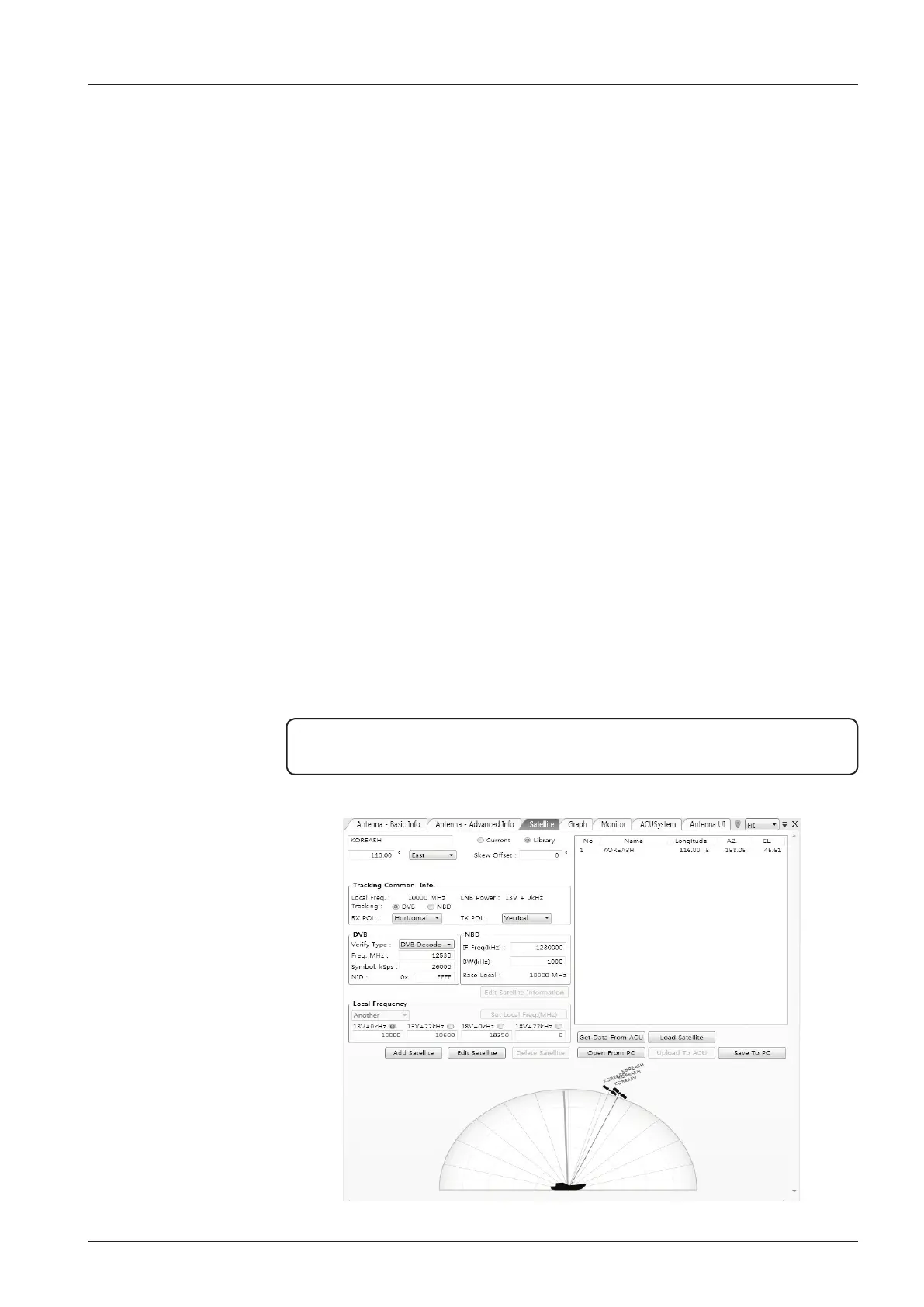

Figure 105. Antenna - Satellite View Tab
To Next Page
