Intermec PF8D User Manual

Chapter 1 — Using the PF8 Printers
PF8d and PF8t Desktop Printer User’s Guide 5

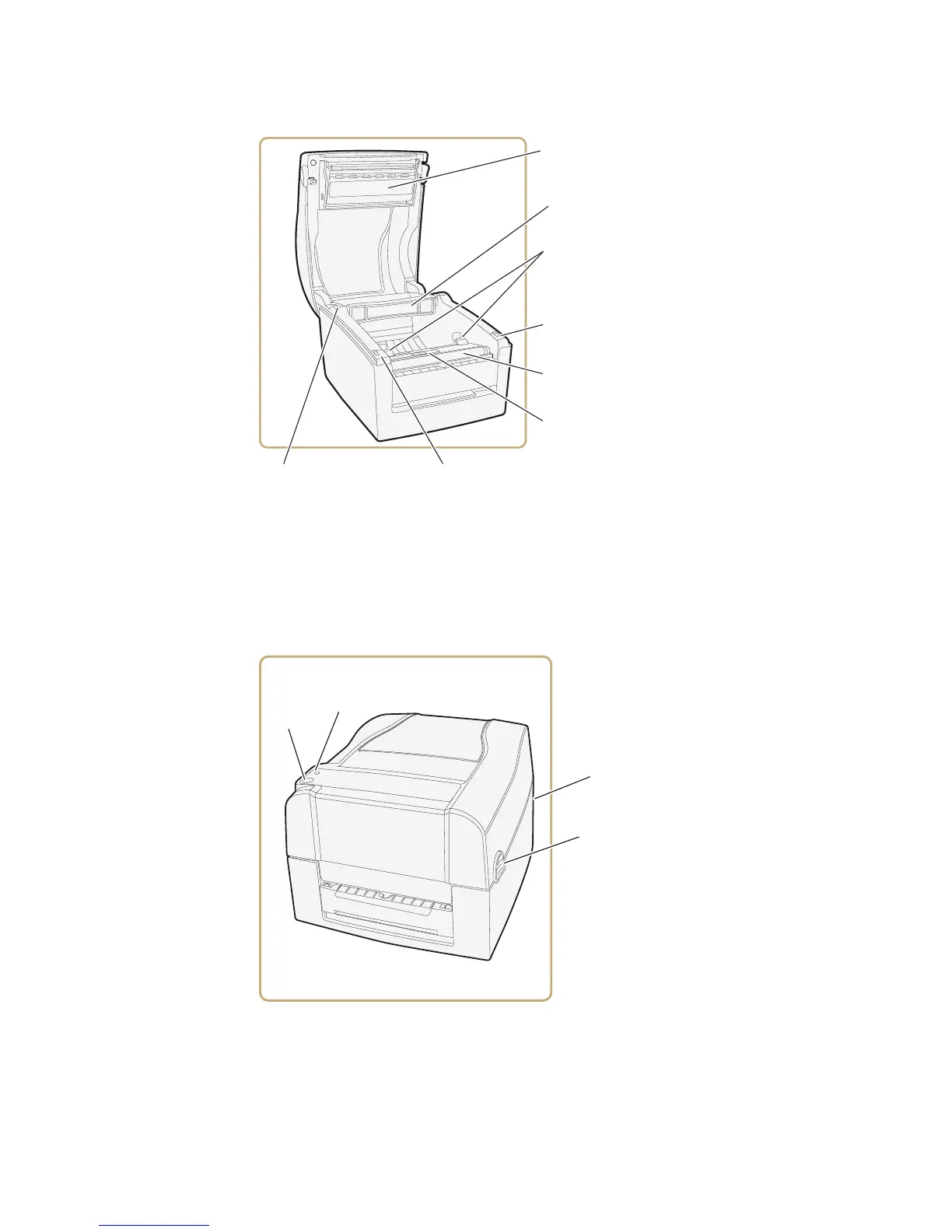

PF8d Media Compartment: The PF8d is a direct thermal printer. The top cover
and the print mechanism are combined into a single unit.
Identifying the Parts of the PF8t
Use the illustrations in this section to identify the parts of the PF8t.
PF8t Front View: The printer controlled by a Power switch (located behind the
printer), a Feed button, and a multi-color status LED. Cover open buttons
located on each side of the printer provide access to the media compartment.
Label guide
(2 places)
Print
mechanism
Black mark
sensor
Platen
roller
Platen
cover
Spindle
Label roll
holder
Platen
cover
Status
LED
Feed
button
Cover
open
button
Power
switch

Intermec PF8D Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
RS-232 ports	1
Standard interfaces	USB 2.0
Connectivity technology	Wired
Flash memory	4 MB
Certification	CE, FCC Class A, cULus, UL, GS, TUVGS, CCC, C-TICK, BSMI
Internal memory	8 MB
Built-in barcodes	MaxiCode, PDF417
Page description languages	EPL
Form factor	Desktop
Dimensions (WxDxH)	168 x 218 x 116 mm
Compatible operating systems	Windows 98/Me/2000/XP Pro/Server 2003/Vista
Core diameter	25.4 mm
Ribbon length	274.32 m
Maximum media length	1727 mm
Maximum roll diameter	127 mm
Supported paper width	104 mm
Maximum media length (imperial)	68 \
Supported paper width (imperial)	4.1 \
Power requirements	100–240 V AC/50–60 Hz, 1.9 A
AC adapter output current	3 A
AC adapter output voltage	24 V
Storage temperature (T-T)	40 - 104 °F
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
