Chapter 2 — Connecting the Printer
PF8d and PF8t Desktop Printer User’s Guide 47

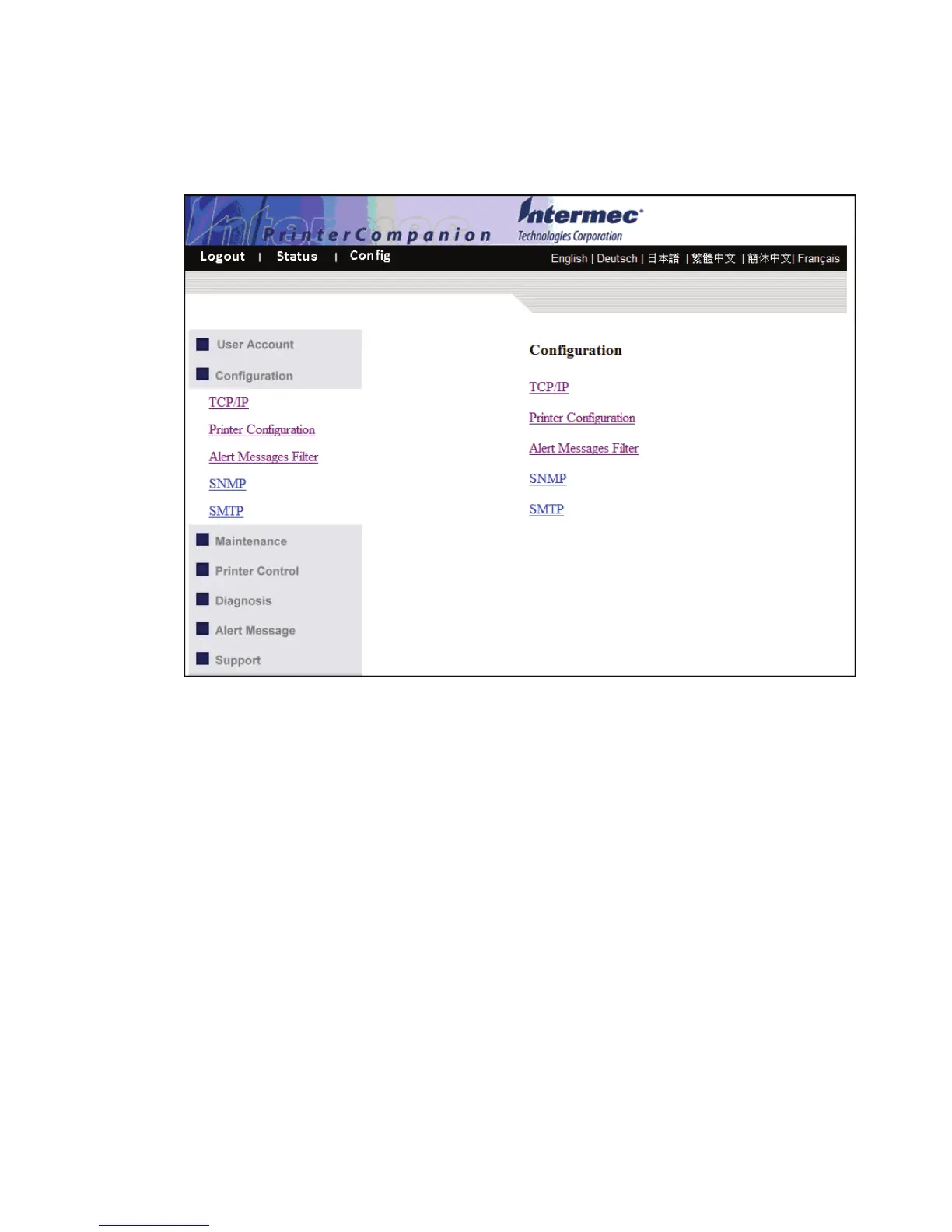

6 From the navigation pane, click Configuration. The
Configuration page appears.
7 Click the link for the settings you want to configure.
Configuring the Printer Using PrintSet
PrintSet is a printer configuration tool that allows you to easily
change your setup parameters. You can also use the setup wizards in
PrintSet to guide you through common configuration tasks.
To configure your printer using PrintSet
1 Make sure that your PC is running Microsoft Windows 98 or later.
2 Download PrintSet from the PF8 Downloads page on the
Intermec web site at www.intermec.com.
3 Connect your printer to your PC using a serial cable. For help, see
“Connecting the Printer Through the Serial Port” on page 38.
4 Install PrintSet and use the PrintSet wizard to guide you through
common configuration tasks.

Intermec PF8D Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
RS-232 ports	1
Standard interfaces	USB 2.0
Connectivity technology	Wired
Flash memory	4 MB
Certification	CE, FCC Class A, cULus, UL, GS, TUVGS, CCC, C-TICK, BSMI
Internal memory	8 MB
Built-in barcodes	MaxiCode, PDF417
Page description languages	EPL
Form factor	Desktop
Dimensions (WxDxH)	168 x 218 x 116 mm
Compatible operating systems	Windows 98/Me/2000/XP Pro/Server 2003/Vista
Core diameter	25.4 mm
Ribbon length	274.32 m
Maximum media length	1727 mm
Maximum roll diameter	127 mm
Supported paper width	104 mm
Maximum media length (imperial)	68 \
Supported paper width (imperial)	4.1 \
Power requirements	100–240 V AC/50–60 Hz, 1.9 A
AC adapter output current	3 A
AC adapter output voltage	24 V
Storage temperature (T-T)	40 - 104 °F
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
