A
WARNING
• Position this product away from the pool, so as to prevent children from climbing
on it and accessing the pool.

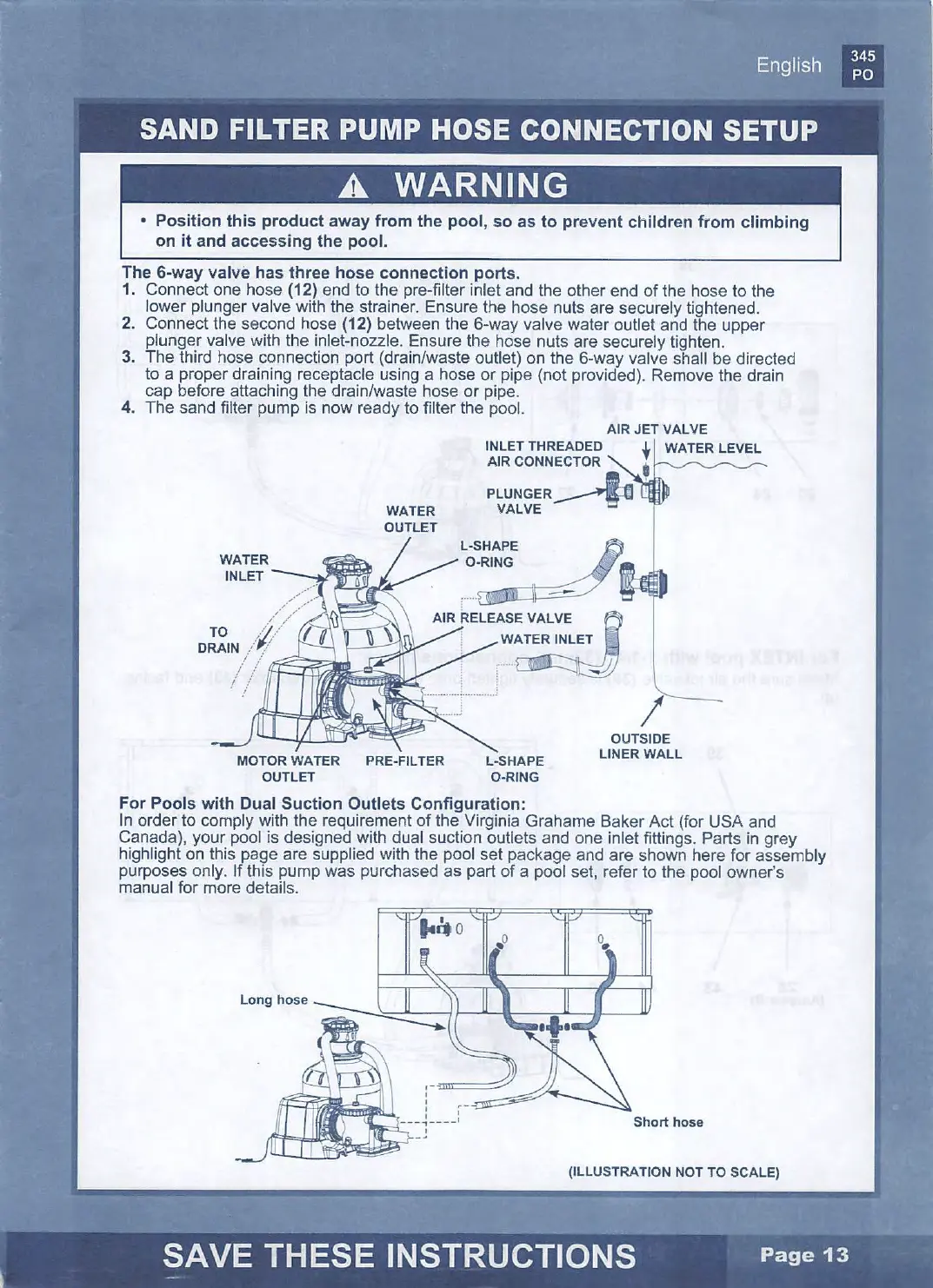

The 6-way valve has three hose connection ports.
1. Connect one hose (12) end to the pre-filter inlet and the other end
of
the hose to the
lower plunger valve with the strainer. Ensure the hose nuts are securely tightened.
2. Connect the second hose (12) between the 6-way valve water outlet and the upper
plunger valve with the inlet-nozzle. Ensure the hose nuts are securely tighten.
3.
The third hose connection port (drain/waste outlet) on the 6-way valve shall be directed
to
a proper draining receptacle using a hose
or
pipe (not provided). Remove the drain
cap before attaching the drain/waste hose
or
pipe.
4. The sand filter pump is now ready to filter the pool.
WATER
INLET
WATER
OUTLET
AIR
JET
VALVE
INLET THREADED
t WATER LEVEL
AIR CONNECTOR
PLUNGER
VALVE
-SHAPE
-RING
..
[C!ld
-
AIR R. ELEASE VALVE ~ ·
! WATER INLET
; r··
~~
MOTOR WATER PRE-FILTER
OUTLET
L-SHAPE
O-RING
For Pools with Dual Suction Outlets Configuration:
I
OUTSIDE
LINER
WALL
In
order
to
comply with the requirement
of
the Virginia Grahame Baker Act (for USA and
Canada}, your pool is designed with dual suction outlets and one inlet fittings. Parts
in
grey
highlight on this page are supplied with the pool set package and are shown here for assembly
purposes only. If this pump was purchased as part
of
a pool set, refer to the pool owner's
manual for more details.
Long
hose
Short
hose
