WARNING
• Risk
of
electric shock. Connect
th
is product
only
to
a groundi
ng
type receptacle protected
by
a ground-fault
circu
it interrupter (GFCI)
or
residual current device (RCD). Contact a
qualified electrician
if
you
cannot verify that
the
receptacle
is
protected by a GFCI/RCD.
Use a qualified electrician
to
install the GFCI/RCD,
wh
ich has a maximum rate
of
30
mA.
Do
not
use a portable residual current device (PRCD).
• To reduce the risk
of
electric shock,
do
not
use extension cords, timers,
plug
adaptors
or
converter plugs
to
connect
unit
to
electric supply; provide a
properly
located outlet.
• Do
not
attempt
to
plug in
or
unplug this
product
while standing in water
or
when
your
hands are wet.
• Never operate
this
product above the maximum
working
pressure stated
on
the
filter
tank.
• Always switch
off
pump
before changing the 6-way valve
pos
ition.
• Operating
this
product
without
water
flow
ing through the system can cause a
build
up
of
hazardous pressure which can result in an explosive situation, serious injury, property
damage
or
death.
• Never
test
this
pump with compressed air. Never operate the system with water
temperature above
35°C
(95°F).

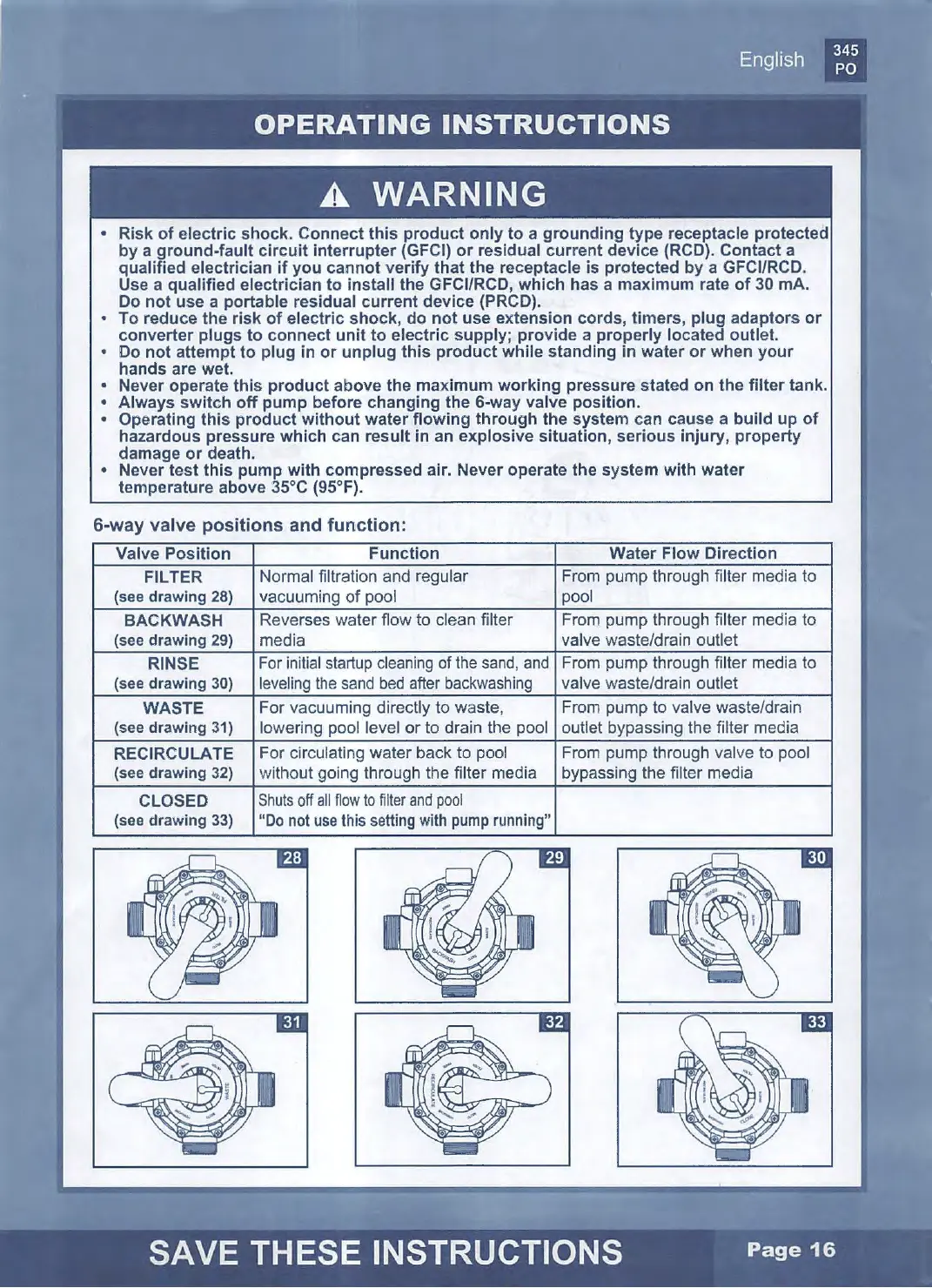

6-way
valve
positions
and
function:
Valve Position Function Water
Flow
Direction
FILTER
Normal filtration and regular
From pump
th
rough filter media
to
(see drawing 28)
vacuuming
of
pool pool
BACKWASH
Reverses water flow to clean
fi
lter From pump through filter media
to
(see drawing 29)
media
valve waste/drain outlet
RINSE
For
initial
startup
cleaning
of
the
sand,
and
From pump through filter media
to
(see drawing 30)
leveling
the
sand
bed
after
backwashing
valve waste/drain outlet
WASTE
For vacuuming directly to waste,
From pump to valve waste/drain
(see drawing 31)
lowering pool level or to drain the pool outlet bypassing the filter media
RECIRCULATE
For circulating water back to pool From pump through valve to pool
(see drawing 32) without going through the filter media bypassing the filter media
CLOSED
Shuts
off
all
flow
to
filter
and
pool
(see drawing 33)
"Do
not
use
this
sett
i
ng
with
pump
running"
