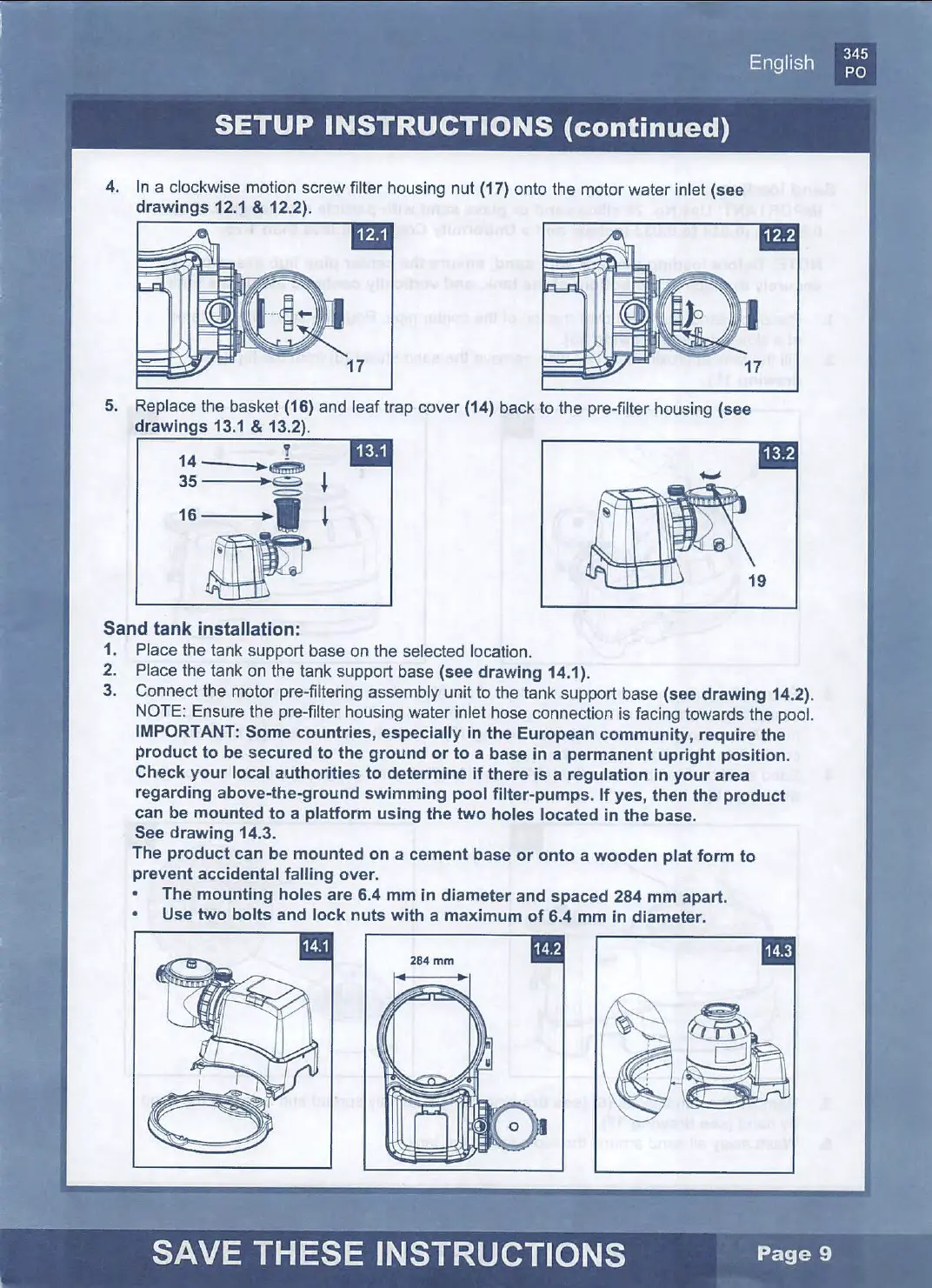

4.
In
a clockwise motion screw filter housing nut (17) onto the motor water inlet (see
drawings
12.1
& 12.2).
17
5.
Replace the basket (16) and leaf trap cover (14) back to the pre-filter housing (see
drawings
13.1
& 13.2).
r
14
---
►►
CJ!9
35
~
!
16--1
!
•
Sand
tank
installation:
1. Place the tank support base
on
the selected location.
2. Place the tank
on
the tank support base (see
drawing
14.1).
3. Connect the motor pre-filtering assembly unit to the tank support base (see
drawing
14.2).
NOTE: Ensure the pre-filter housing water inlet hose connection
is
facing towards the pool.
IMPORTANT: Some countries, especially in
the
European
community,
require the
product
to
be secured
to
the
ground
or
to
a base in a permanent
upright
position.
Check
your
local authorities
to
determine
if
there
is
a regulation in
your
area
regarding above-the-ground
swimming
pool
filter-pumps.
If
yes,
then
the
product
can be
mounted
to
a
platform
using
the
two
holes
located
in
the
base.
See
drawing
14.3.
The
product
can be
mounted
on
a
cement
base
or
onto
a wooden
plat
form
to
prevent accidental
falling
over.
• The
mounting
holes
are 6.4 mm in diameter and spaced 284
mm
apart.
• Use
two
bolts
and
lock
nuts
with
a
maximum
of
6.4
mm
in diameter.
284mm
SAVE THESE INSTRUCTIONS
Page
9
