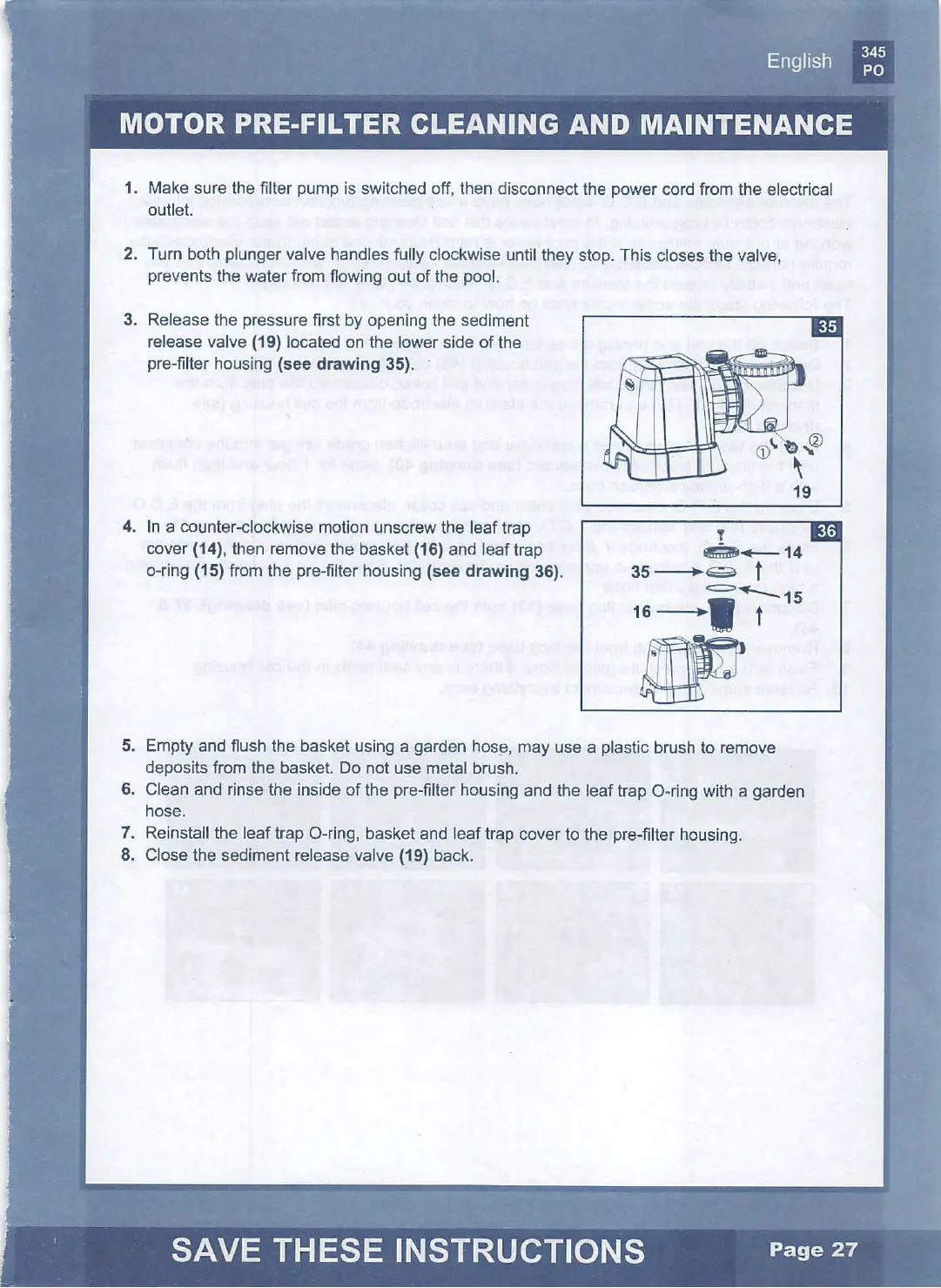

1. Make sure the filter pump is switched
off
, then disconnect the power cord from the electrical
outlet.
2.
Turn both plunger valve handles fully clockwise until they stop. This closes the valve,
prevents the water from flowing out
of
the pool.
3. Release the pressure first by opening the sediment
release valve
(19) located on the lower side
of
the
pre-filter housing
(see drawing 35).
4.
In
a counter-clockwise motion unscrew the leaf trap
cover
(14), then remove the basket (16) and leaf trap
o-ring
(15) from the pre-filter housing (see drawing 36).
T
li0
-.--14
35---.
e3
f
=
....._15
16~,
f
•
5. Empty and flush the basket using a garden hose, may use a plastic brush to remove
deposits from the basket. Do not use metal brush.
6. Clean and rinse the inside
of
the pre-filter housing and the leaf trap O-ring with a garden
hose.
7. Reinstall the leaf trap O-ring, basket and leaf trap cover to the pre-filter housing.
8. Close the sediment release valve (19) back.
