20

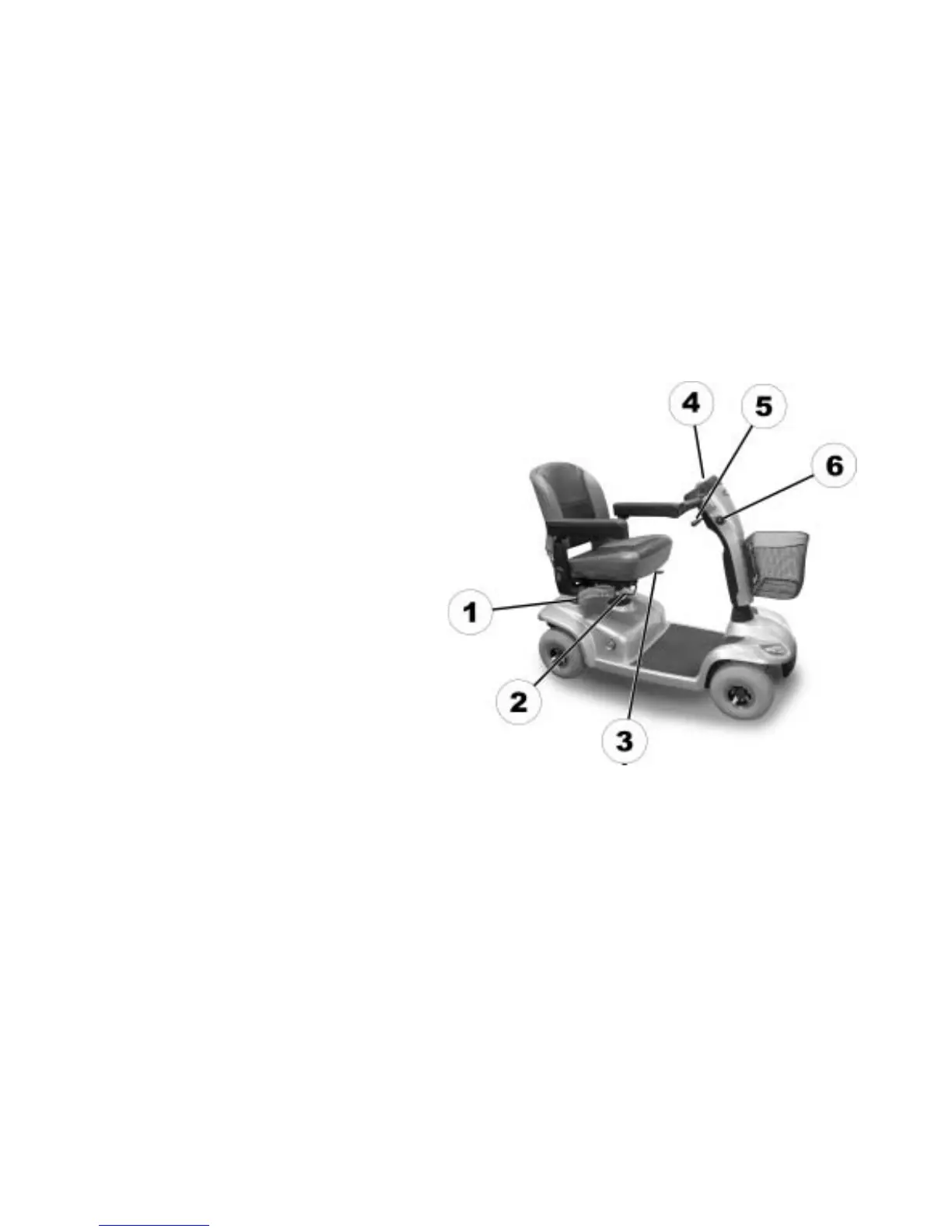

3 Key features
1) Disengaging lever
2) Unlocking lever for sliding seat
rails (front right below seat)
3) Unlocking lever for swivelling and
removing seat (left below seat)
4) Operating console
5) Lever for adjusting steering
column inclination
6) Keyswitch (ON/OFF)

Table of Contents

Other manuals for Invacare Leo

Preview: User Manual
User Manual88 pages
Preview: Service Manual
Service Manual44 pages
Preview: Owner's Operator And Maintenance Manual
Owner's Operator And Maintenance Manual36 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Invacare Leo and is the answer not in the manual?

Invacare Leo Specifications

General IconGeneral
Maximum Speed8 km/h
Weight Capacity136 kg
Ground Clearance7 cm
Battery2 x 12V
Seat Width47 cm
Seat Depth41 cm (16.1 inches)
Maximum Safe Slope10 degrees
Turning Radius43.3 inches (110 cm)
