Invacare Leo Operating Manual

39
7.3 Disengaging the seat to rotate it or remove it
The seat can be turned to one side to make
getting in and out of the scooter easier. The seat
is also easier to remove from this position.

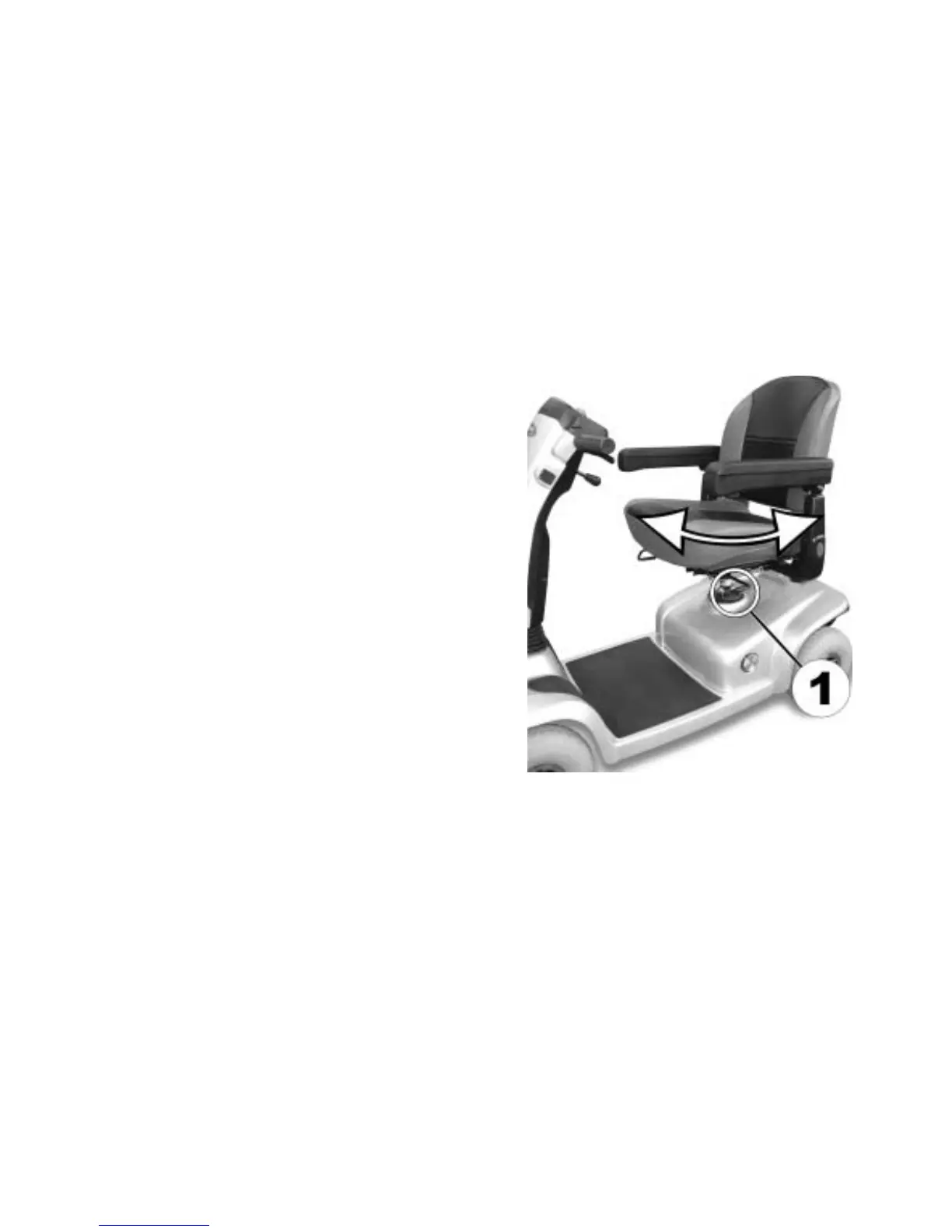

The lever for disengaging the seat is located
under the seat (1) on the right.
• Pull the lever forwards to disengage the seat.
• Turn the seat to one side.
• If you want to remove the seat, hold it firmly
by the backrest and front edge and remove it
upwards.

Invacare Leo Specifications

General

Maximum Speed	8 km/h
Weight Capacity	136 kg
Ground Clearance	7 cm
Battery	2 x 12V
Seat Width	47 cm
Seat Depth	41 cm (16.1 inches)
Maximum Safe Slope	10 degrees
Turning Radius	43.3 inches (110 cm)
