Invacare Leo Operating Manual

37
7 Adjustment facilities

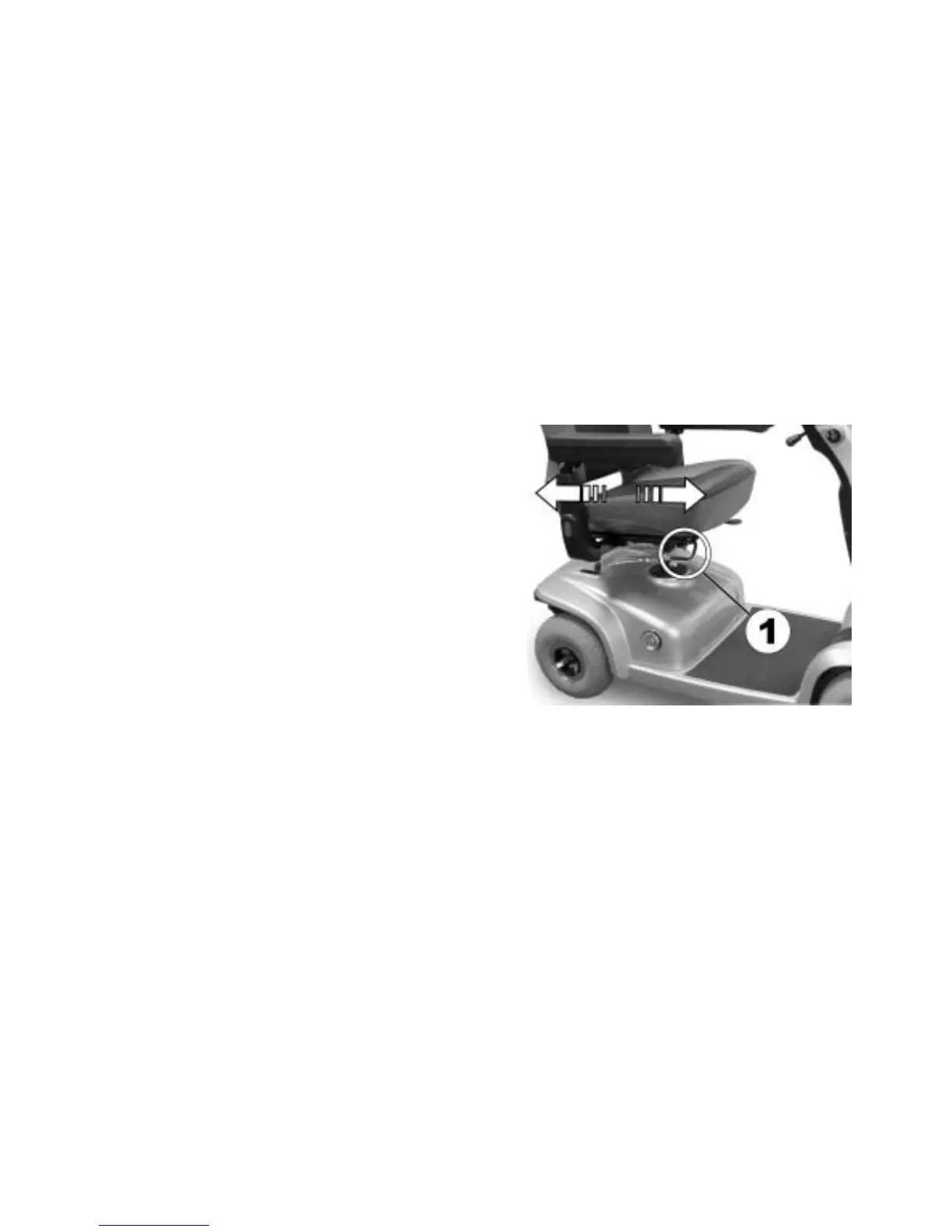

7.1 Moving the seat position forwards or backwards
The disengaging lever for adjusting the seat is
located front right below the seat
• Pull the lever (1) to disengage the seat.
• Slide the seat forwards or backwards into the
required position.
• Let go the lever again to lock the seat into its
required position.

Invacare Leo Specifications

General

Maximum Speed	8 km/h
Weight Capacity	136 kg
Ground Clearance	7 cm
Battery	2 x 12V
Seat Width	47 cm
Seat Depth	41 cm (16.1 inches)
Maximum Safe Slope	10 degrees
Turning Radius	43.3 inches (110 cm)
