ITech IT6000D Series User Manual

Basic Operation
And, the voltage upper limit Vlim will be adjusted according to the parameter
setting of Ch2 and the input voltage of the corresponding pin.

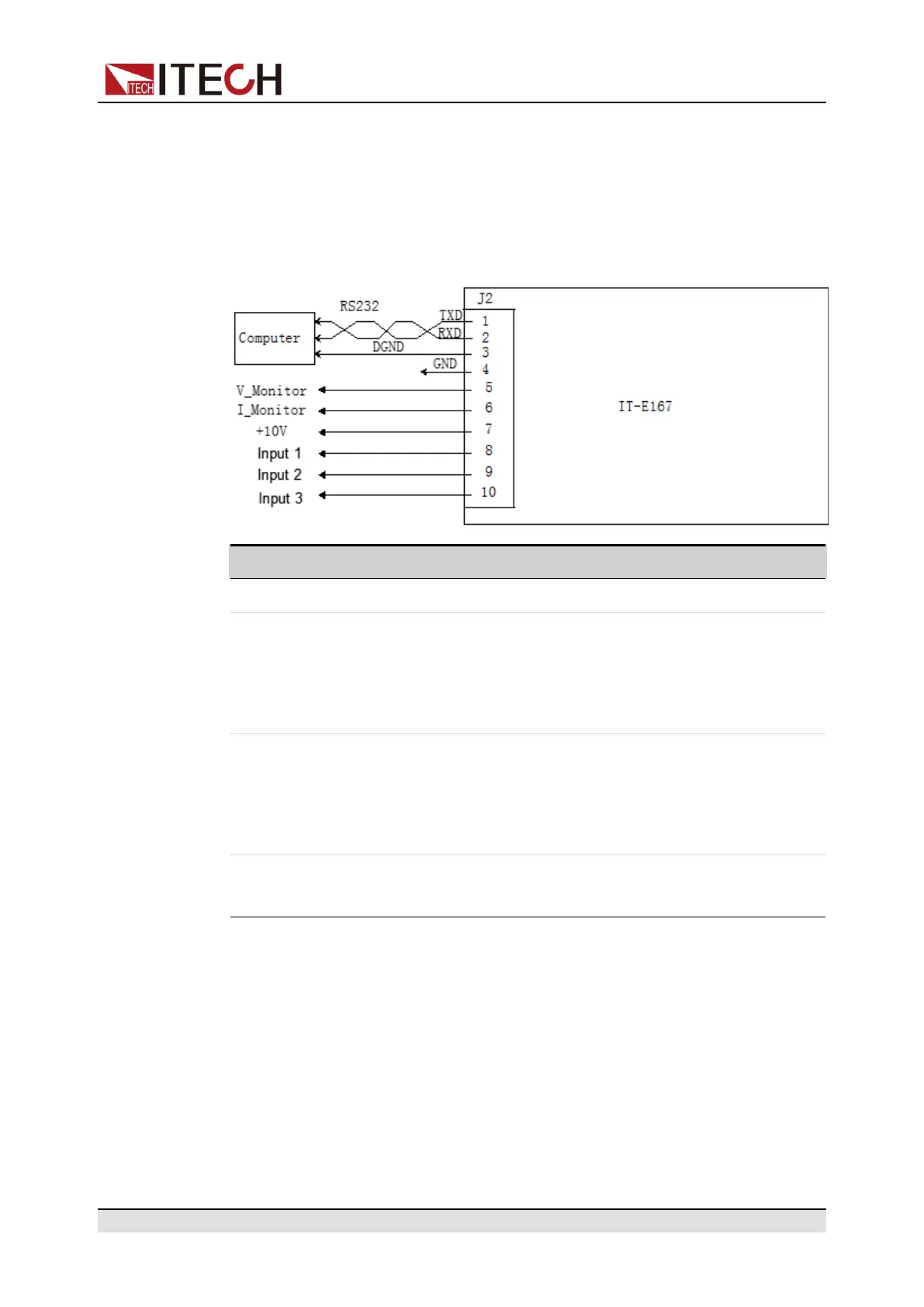

Analog Card Interface Introduction
The analog function interface is located on the optional IT-E167. The pins de-
scription is as below.
Pins Description
4 Ground terminal
8 The setting for the output voltage/current value corresponds to Ch1
in the menu.
• CV priority: Specify the value of Vset.
• CC priority: Specify the value of Iset.
9 The setting for the voltage/current upper limit corresponds to Ch2 in
the menu.
• CV priority: Specify the value of the current upper limit Ilim.
• CC priority: Specify the value of the voltage upper limit Vlim.
10 The setting for the voltage/current lower limit corresponds to Ch3 in
the menu. (IT6000D series models do not need to be set)
Analog Conversion Relationship Introduction
Taking the Ch1 programming channel as an example, the user needs to convert
the values of Mx and Mb according to the following formulas, and then set the
two values through the front panel keys or SCPI remote commands.
Copyright © Itech Electronic Co., Ltd.
115
