Jacuzzi J-135 User Manual

J-100

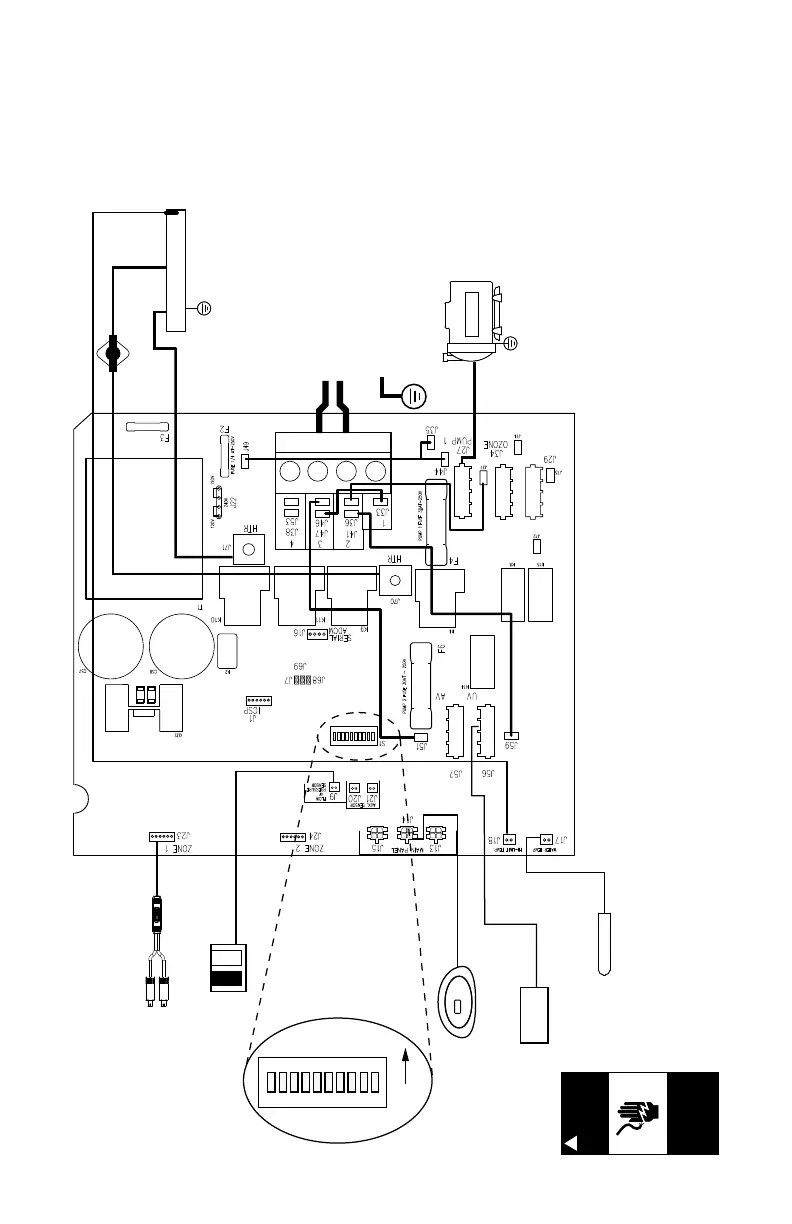

16.2 North American J-115™ and J-125™ Convertible Models
This wiring diagram is used for the 120/240V 60 Hz North American
convertible spa models.
CLEARRAY
PUMP 1 2 SPEED
1 2 3 4
OZONE
PUMP 1
UV
A/V
30A
5AT~250V
30A
120VAC, 15A 3-WIRE CONNECTION 60HZ 1-PHASE SERVICE
WHT BLK
G-GRN
STEP LIGHT
(OPTIONAL)
WATER SENSOR
FLOW SENSOR
WHT BLK
CONTROL PANEL
LIGHT ADAPTER
1.0kW/4.0kW HEATER
THERMAL CUTOFF
S1
ON
1 2 3 4 5 6 7 8 9 10
DANGER
Turn power off before servicing. This task should only be performed by a quali
-
fied technician.
!
RISK OF SHOCK OR ELECTROCUTION!
47
