J-100
Single Service (default setting)
1x20A (J115/J125 Only) This setting will turn the heater off any
time either one of the pumps are running on high speed.
1x32A This setting is for all two pump model spas. Both pumps
and the heater will be allowed to operate at the same
time.
Dual Service
2x16A (J115/J125 Only) Both the jets pump and the heater will
be allowed to operate at the same time.
1x16A/1x20A This setting is for all two pump model spas. Both pumps
and the heater will be allowed to operate at the same
time.
Three Phase Service
3x16A This setting is for all two pump model spas. Both pumps
and the heater will be allowed to operate at the same
time.

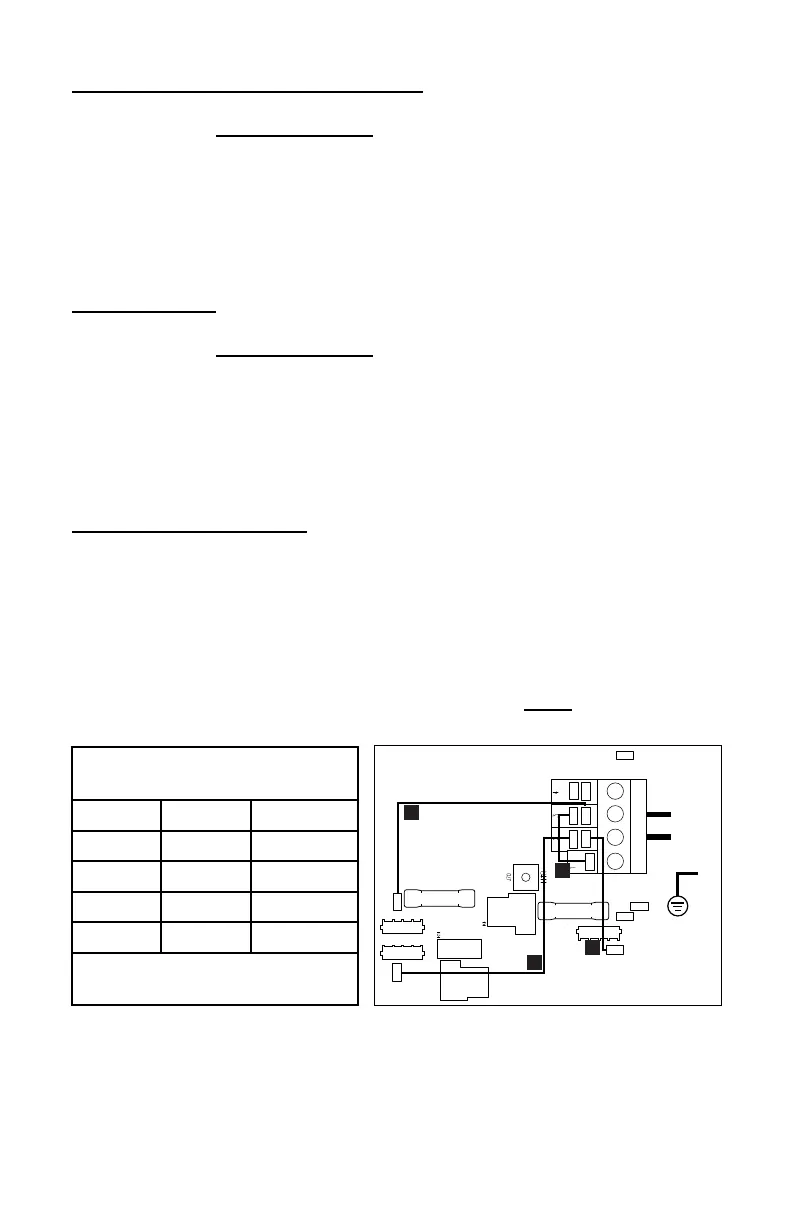

17.3 Single Service 50Hz Connection
Wiring for export models with a single service breaker. The jumper wiring
is shown below. The included extra White wire (1*) must be installed.
G-GRN
L1 BRN
N1 BLU
A
B
C
D
P1 2SPD
UV
A/V
30A (PMP 1)
30A (PMP 2)
J33
J36
J53
J41
J46
J47
J51
J59
J38
J44
J49
F4
F6
J35
J37
1*
2
4
3
ALL MODELS
Single Service Jumper Wiring
Wire From To
1* J33 J47
2 J59 J41
3 J37 J36
4 J46 J51
*Extra connection must be
made
BREAKER TERMINAL
CONNECTIONS
L1 = All components
53
