Jacuzzi J-135 User Manual

J-100

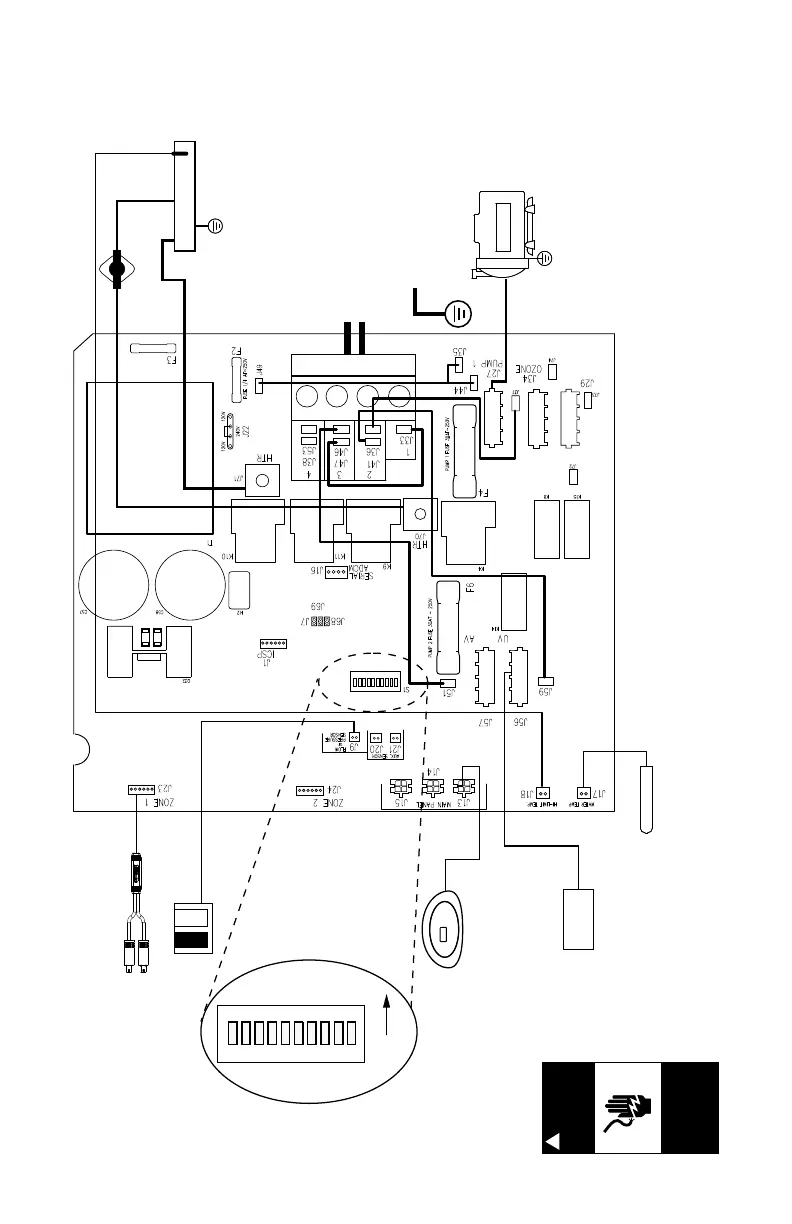

16.5 Export 50 Hz J-115™ and J-125™ Models
This wiring diagram is used for the 230V 50 Hz Export spa models.
G-GRN
L1 BRN N1 BLU
230VAC, 50HZ SINGLE PHASE 21A DUAL PHASE 12A/16A THREE PHASE 14A/7A/7A
CLEARRAY
PUMP 1 2 SPEED
1 2 3 4
OZONE
PUMP 1
UV
A/V
30A
30A
WATER SENSOR
CONTROL PANEL
STEP LIGHT
(OPTIONAL)
FLOW SENSOR
L-BLK
N-WHT
G-GRN
5AT~250V
WHT BLK
LIGHT ADAPTER
2.7kW HEATER
THERMAL CUTOFF
S1
ON
1 2 3 4 5 6 7 8 9 10
DANGER
Turn power off before servicing. This task should only be performed by a quali
-
fied technician.
!
RISK OF SHOCK OR ELECTROCUTION!
