16.4 Export 50 Hz J-135 and J-145 Models

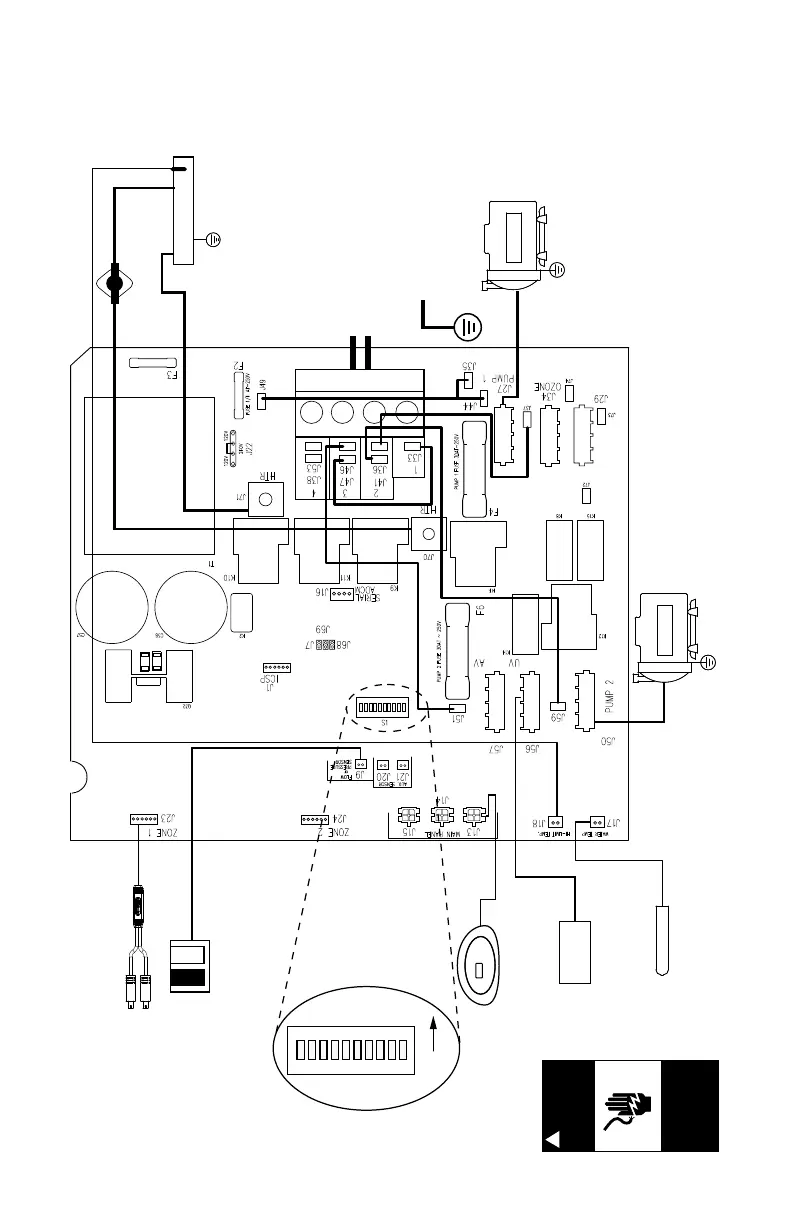

This wiring diagram is used for the 230V 50 Hz Export spa models.
DANGER
Turn power off before servicing. This task should only be performed by a quali
-
fied technician.
!
RISK OF SHOCK OR ELECTROCUTION!
G-GRN
L1 BRN N1 BLU
230VAC, 50HZ SINGLE SERVICE 21A
PUMP 1 2 SPEED
1 2 3 4
OZONE
PUMP 1
PUMP 2
UV
A/V
30A
30A
PUMP 2
STEP LIGHT
(OPTIONAL)
FLOW SENSOR
5AT~250V
LIGHT ADAPTER
CLEARRAY
WATER SENSOR
CONTROL PANEL
S1
ON
1 2 3 4 5 6 7 8 9 10
2.7kW HEATER
THERMAL CUTOFF
49
