Operation
Working with the Dozer Blade
72
9821/6100-4
72
Backfilling
When you backfill on a slope, pile the material on the high side of the trench when possible.
Move the
dozer blade
level to
the ground.
Work
at right
angles to
the trench,
fill a
dozer blades
width at
a time.
Leave any spillage until the trench is filled.
Use the spillage to finish the job by driving the length of the trench with the dozer blade low to the ground.

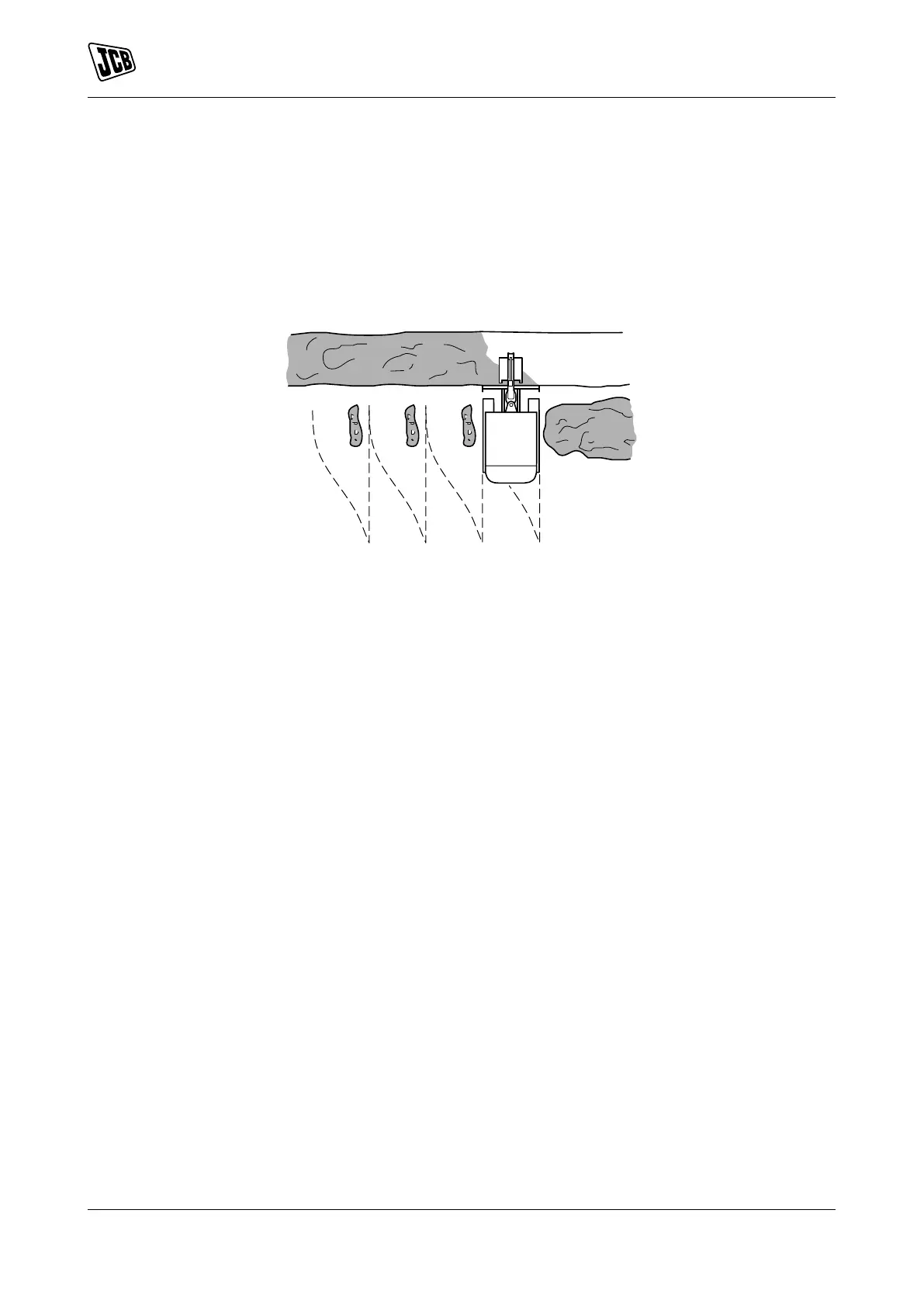

Figure 64.
