Maintenance
Access Apertures
90 9831/7750-1 90
Access Apertures
Engine Compartment Cover
Most of the service points can be access through the engine compartment cover.
Open
1. Make the machine safe.
2. Park the machine on firm level ground.
3. Apply the parking brake (if installed).
4. Engage the articulation lock.
5. Stop the engine and turn the ignition key to the off position.
6. Remove the ignition key.
7. Unlock the latch connected to down left and right side of engine cover. Refer to Figure 51.
8. Use the handle to open the engine cover.
9. Open the cover, it is supported on the retainer rope.
10. Install the stay rod to prevent the bonnet from closing. Refer to Figure 51.

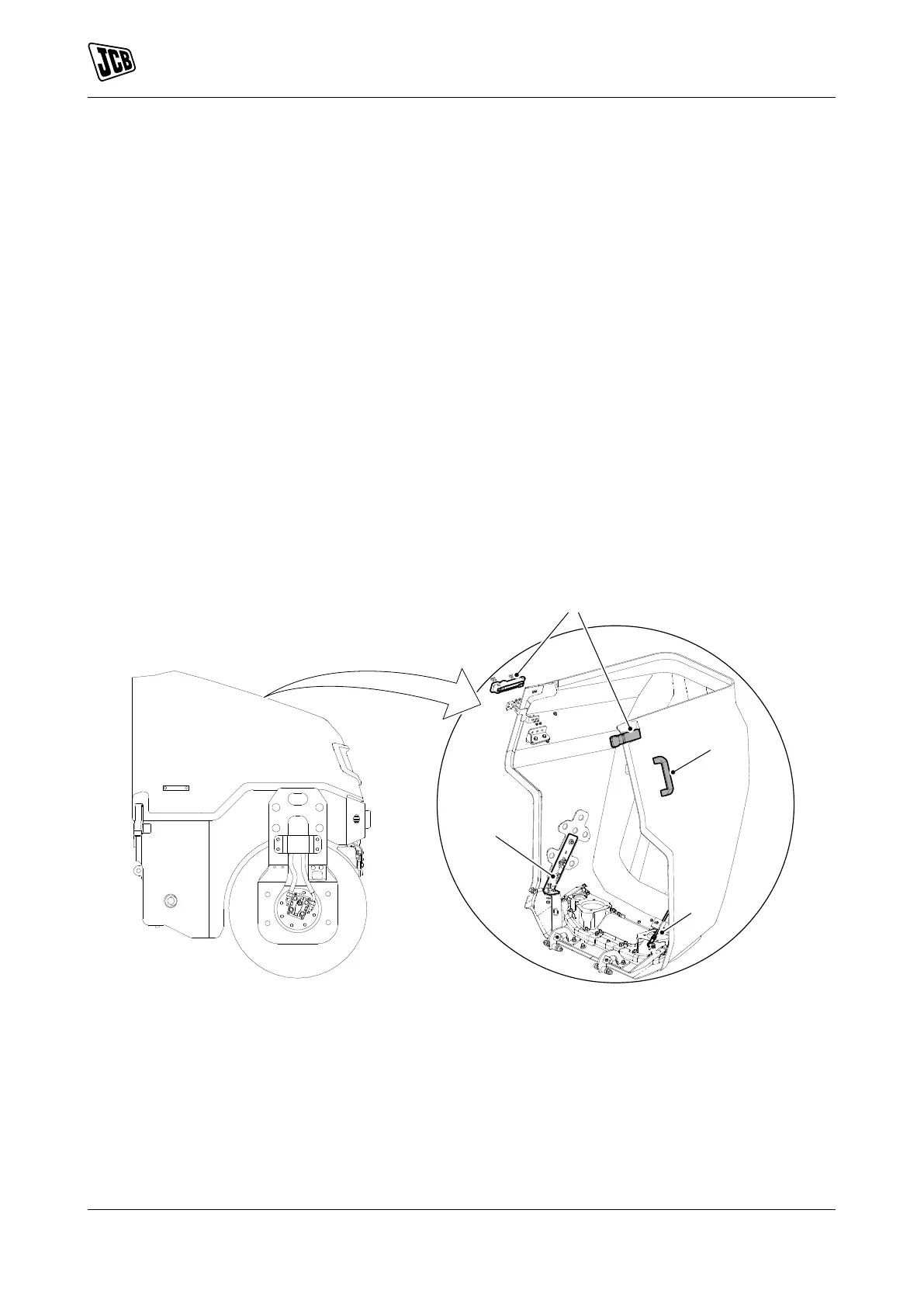

Figure 51.
A Latch B Handle
C Retainer rope D Stay rod
