2 - 1
Circuit Protection;
Fuse rating and circuit names
Fuse Replacement

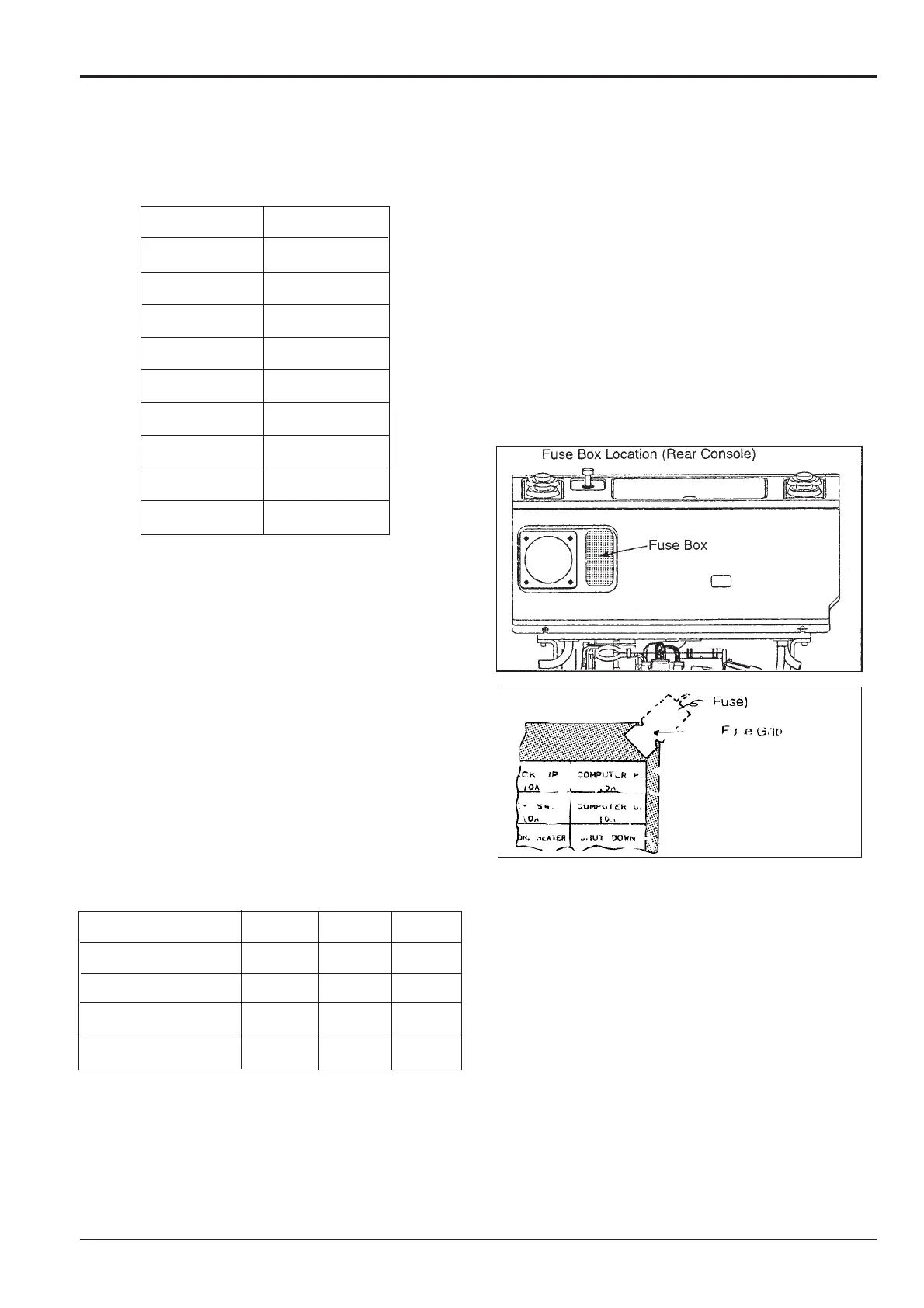

See illustration on the right for location of Fuse Box (A).
1. Prepare the machine, stop the engine remove the
starter key.
2. Prepare an appropriate fuse of the correct
amperage, remove cover.
Note: The fuse cover’s right corner is the grip.
3. Replace the blown fuse with a new one.
4. Install the fuse cover.
Note: If the reason for the blown fuse is unknown or the
fuse
fails repeatedly, check the electrical circuit(s) concerned.
Lighting and Horn
Voltage Wattage No. off
Working light Tank 24 V 70 W 1
Boom 24 V 70 W 1
Roof light Cab 24 V 10 W 1
Horn 24 V 2
Section C Electrics
9803/6410
Section C
2 -1
Issue 1
Technical Data
BACK UP COMPUTER P.
10A 15A
KEY SW. COMPUTER C.
10A 10A
AIRCON., HEATER SHUT DOWN
20A 15A
LAMP LEVER LOCK
15A 10A
LAMP (SPARE) LUBRICATOR
15A 10A
LAMP (SPARE) WARNING BEACON
15A 10A
LAMP (SPARE) OIL PUMP
15A 20A
WIPER, WASHER CONDENSER MOTOR
15A 15A
HORN, ROOM LAMP SPARE
10A 10A
RADIO, LIGHTER SPARE
10A 10A
(A)
