jcb JS160 User Manual

10 - 4
Assembly (cont’d)

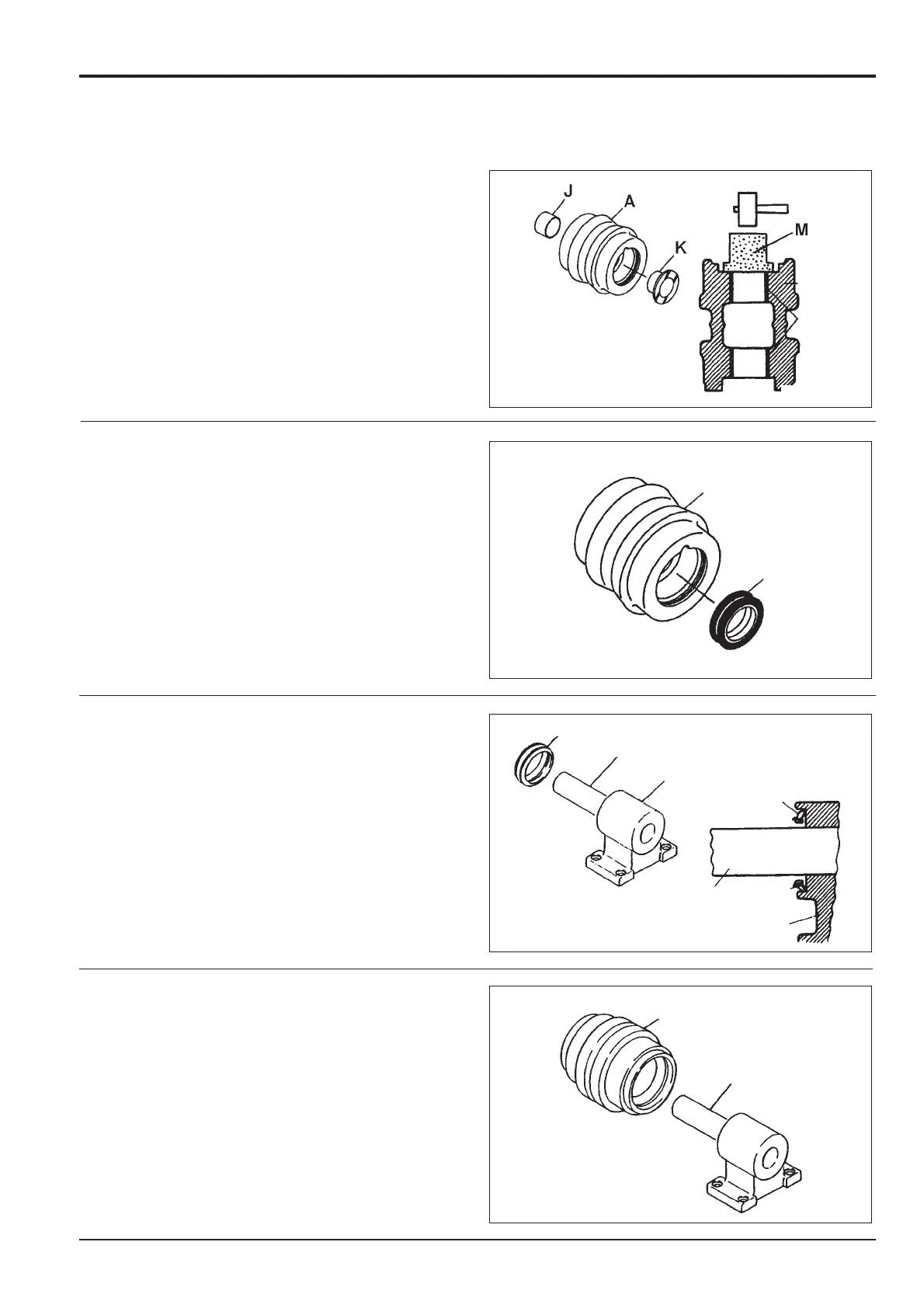

2 Using a jig M, and hammer, insert the bushes J and K
into the roller A.
3 Install a new floating seal I into the roller A.
Coat the metallic face of the seal with engine oil.
4 Install a new seal I into the bracket L.
Coat the metallic face of the seal with engine oil.
5 Coat the shaft H with grease. Install the roller A onto
the shaft H.
Section J Track and Running Gear
9803/6410
Section J
10 - 4
Issue 1
Top Roller
A
I
I
H
L
I
H
L
A
H
JS01550
