7 - 2
Checking/Adjusting the Track Tension
1 Prepare the Machine
Position the machine on level ground. Run it
backwards and forwards several times. Stop after
running it forwards.
Carry out steps 1 to 3 of Cleaning the Tracks. Block
up the undercarriage frame. Finish track rotation by
running the track forwards. Stop the engine and remove
the starter key.
!!
WARNING
NEVER position yourself or any part of your body under a
raised machine which is not properly supported. If the
machine moves unexpectedly you could become
trapped and suffer serious injury or be killed.
INT-3-3-7
2 Check the Tension

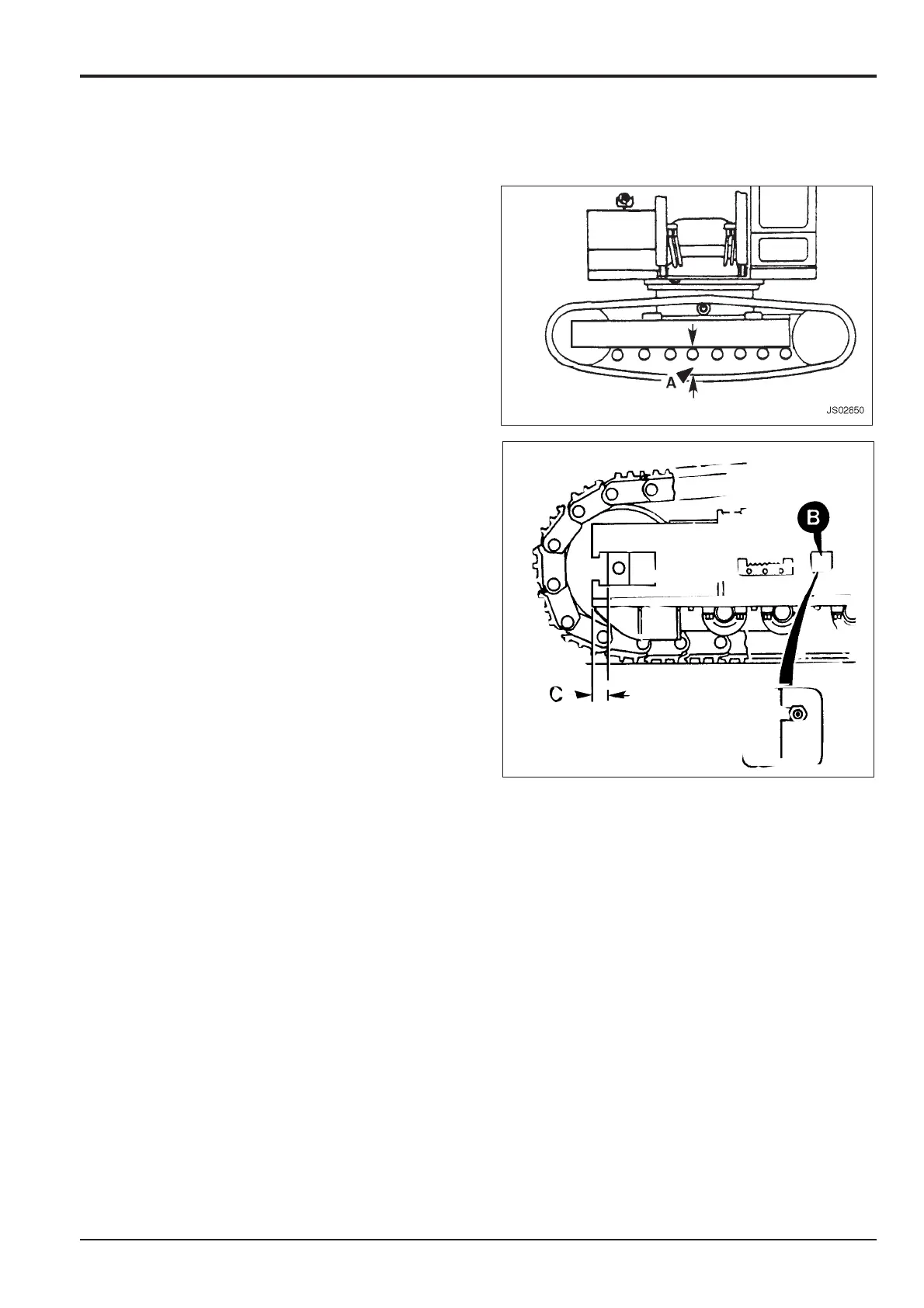

Measure gap A in line with the third roller from the front
and between the lower surface of the track frame and
the upper surface of the shoe. The dimension should be
275-295 mm for hard ground conditons. For operation
on soft sand or sticky mud it should be 320-340mm.
3 Adjust the Track Tension
Adjustment is made by either injecting or releasing
grease from the check valve B. Inject grease to reduce
the gap (increase the tension) or open to release grease
and increase the gap.
! WARNING
When opening the check valve always stand to one side
and loosen a little at a time until grease starts to come
out. If you over-loosen too much grease could spurt out
or the valve cover fly out and cause serious injury.
8-3-4-5
! WARNING
Under no circumstances must the check valve be
dismantled or any attempt made to remove the grease
nipple from the check valve
8-3-4-9
If a gap C exists between the idler wheel shaft and
the track frame, you may use pressure to apply the
grease.If there is no gap C after the application of
grease, then the necessary repairs must be carried out.
Note: Excessive tension can cause the track rail to wear the
drive rollers and sprocket, insufficient tension can cause
wear to the drive sprocket and track rail.
4 Lower the Track
Remove the blocks from beneath the undercarriage
and lower the track to the ground using the boom and
dipper controls.
5 Repeat for the Opposite Track
Slew the boom round to the other side and repeat steps
1 to 4 above.
Section 3 Routine Maintenance
9803/6410
Section 3
7 - 2
Issue 1
Tracks and Running Gear (continued)
