7 - 2
Replacement

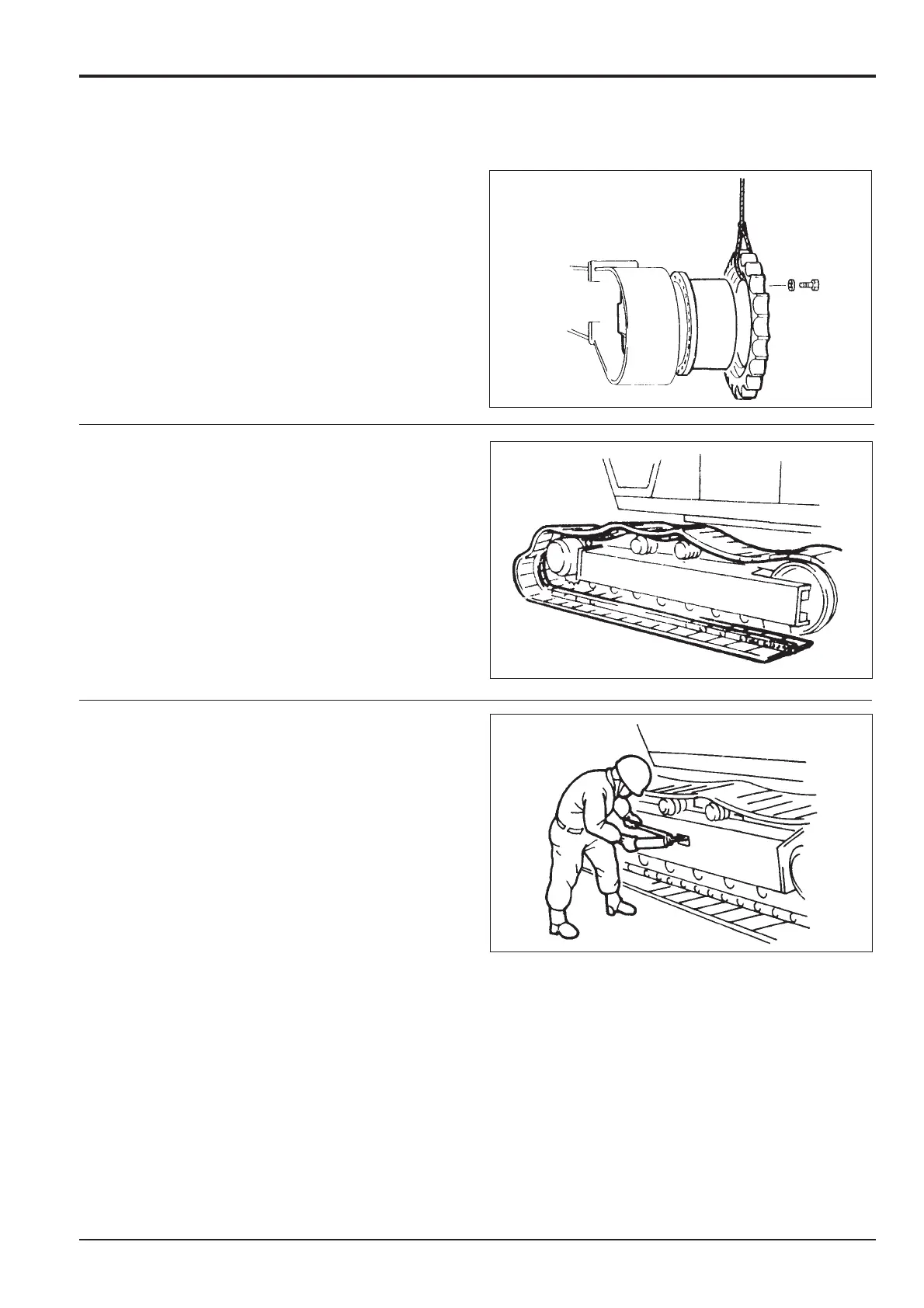

1 Support the sprocket and position it on the gearbox.
Install the bolts and washers, using Loctite 262 on the
bolt threads. Tighten the bolts in a diagonal sequence
to a torque of 267 - 312 Nm (197 - 230 lbf ft, 27 - 31 kgf
m).
2 Remove the wooden blocks. Connect the track link.
3 Apply grease through the check valve to adjust the
track tension (see Checking/Adjusting the Track
Tension, Section 3).
