5 - 4
For location of hydraulic oil tank see Component Location
Diagram.
!!
WARNING
Fine jets of hydraulic fluid at high pressure can penetrate
the skin. Do not use your fingers to check for hydraulic
fluid leaks. Do not put your face close to suspected
leaks. Hold a piece of cardboard close to suspected
leaks and then inspect the cardboard for signs of
hydraulic fluid. If hydraulic fluid penetrates your skin get
medical help immediately.
INT-3-1-10/1

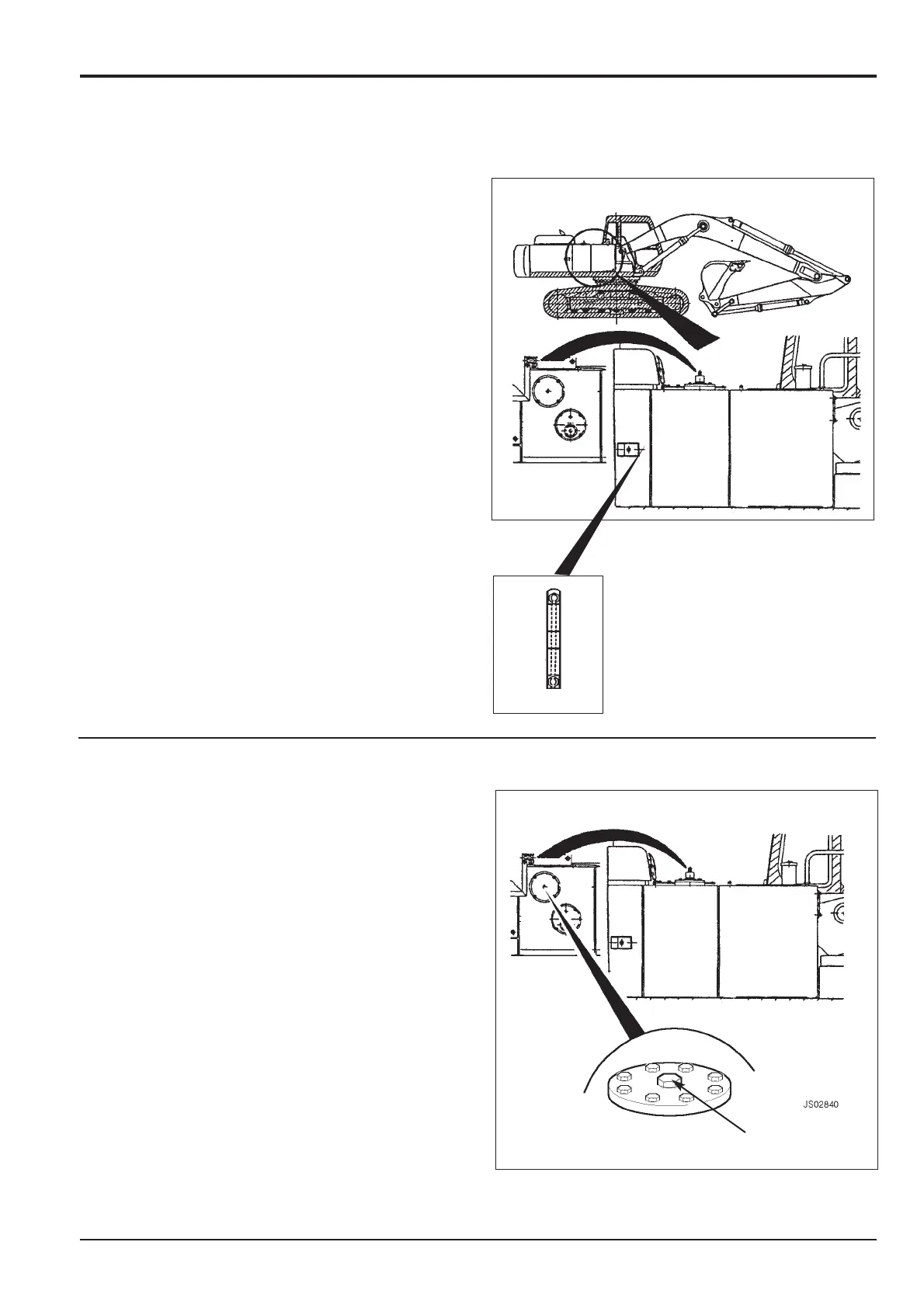

Checking the Fluid Level
1 Prepare the Machine
Position the machine on level ground with the bucket
and dipper rams fully extended and the boom lowered
to rest the attachment on the ground, as at A.
2 Check the Level
Look at the fluid level in the sight tube B. The level
should be between the two marks on the tube. If the
fluid is cloudy, water or air has entered the system.
Water or air in the system could damage the hydraulic
pump.
Topping up Fluid Level
!!
WARNING
DO NOT remove the hydraulic tank filler cap or cover
plate when the engine is running. The hydraulic system
is under pressure. You or others could be injured. First
stop the engine and then release the pressure.
8-3-4-4/1
1 Prepare the Machine
Position the Machine on level ground as at A. Stop the
engine. Remove the starter key.
2 Locate the Hydraulic Oil Tank or Filler Plate
See Component location Diagrams.
3 Release Tank Pressure
See Releasing Tank Pressure.
4 Add Fluid.
a Remove plug C.
b Refill oil through the filler port using a suitable
tundish.
c Check the level through the level gauge on the side
of the tank.
d Refit plug C.
Section 3 Routine Maintenance
9803/6410
Section 3
5 - 4
Issue 1
Hydraulics (continued)
B
A
C
