Front End Accessory Drive Belt
Introduction
The front end accessory drive belt (FEAD) drives the
alternator, water pump and the air conditioning
compressor (if fitted).
The belt is automatically kept in tension so will not need to
be adjusted.
!MWARNING
Make sure the engine cannot be started. Disconnect
the battery before doing this job.
2-3-3-5
!MWARNING
Turning the Engine
Do not try to turn the engine by pulling the fan or fan
belt. This could cause injury or premature component
failure.
0094
To get access to the drive belt for maintenance, open the
engine cover. Refer to Access Panels, Engine Cover.
Inspecting the Drive Belt
T3-029
At the recommended service interval, visually inspect the
belt for damage.
1 Get access to the drive belt. Refer to Front End
Accessory Drive Belt, Introduction.
2 Inspect the belt for cracks A, fraying B or missing
pieces C. K

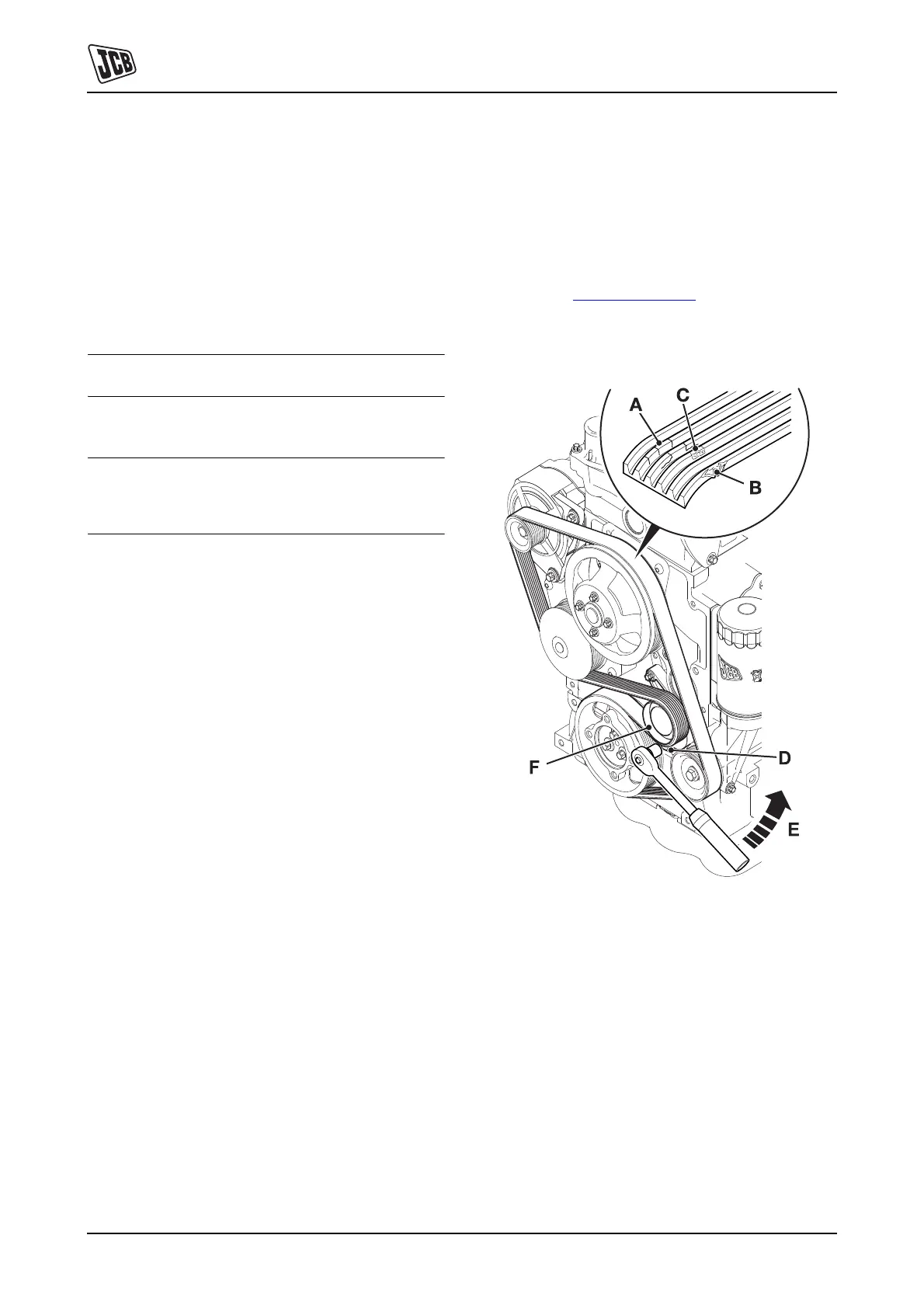

Fig 102. ( T 138).
Fit a new belt as required. Refer to Changing the
Drive Belt.
763440-2
Fig 102.
