Operation
Transporting the Machine
83 83
9811/5700-7
Taking the Mast Out of the Transport Position
The mast must be returned to the normal position before
driving the RTFL off the transporter.
!MWARNING
Mast Tilt
The machine is equiped with special laydown tilt
cylinders. The FULL tilt feature is to be used for
TRANSPORTING on trucks or trailer only and not on
the work site. Both tilt cylinder restraint wires MUST
be secured at both ends while the machine is being
used on the work site.
9-1-3-5
1 Make sure the park brake engaged.
2 Start the engine.
3 Tilt the mast fully back.
4 Lower the forks and stop the engine. Remove the
starter key.
5 Fasten both tilt cylinder restraint wires to the mast.
a Install each restraint wire C (if fitted) to its mast
and tilt cylinder pivot pin.
b Install washer B and bolt A.

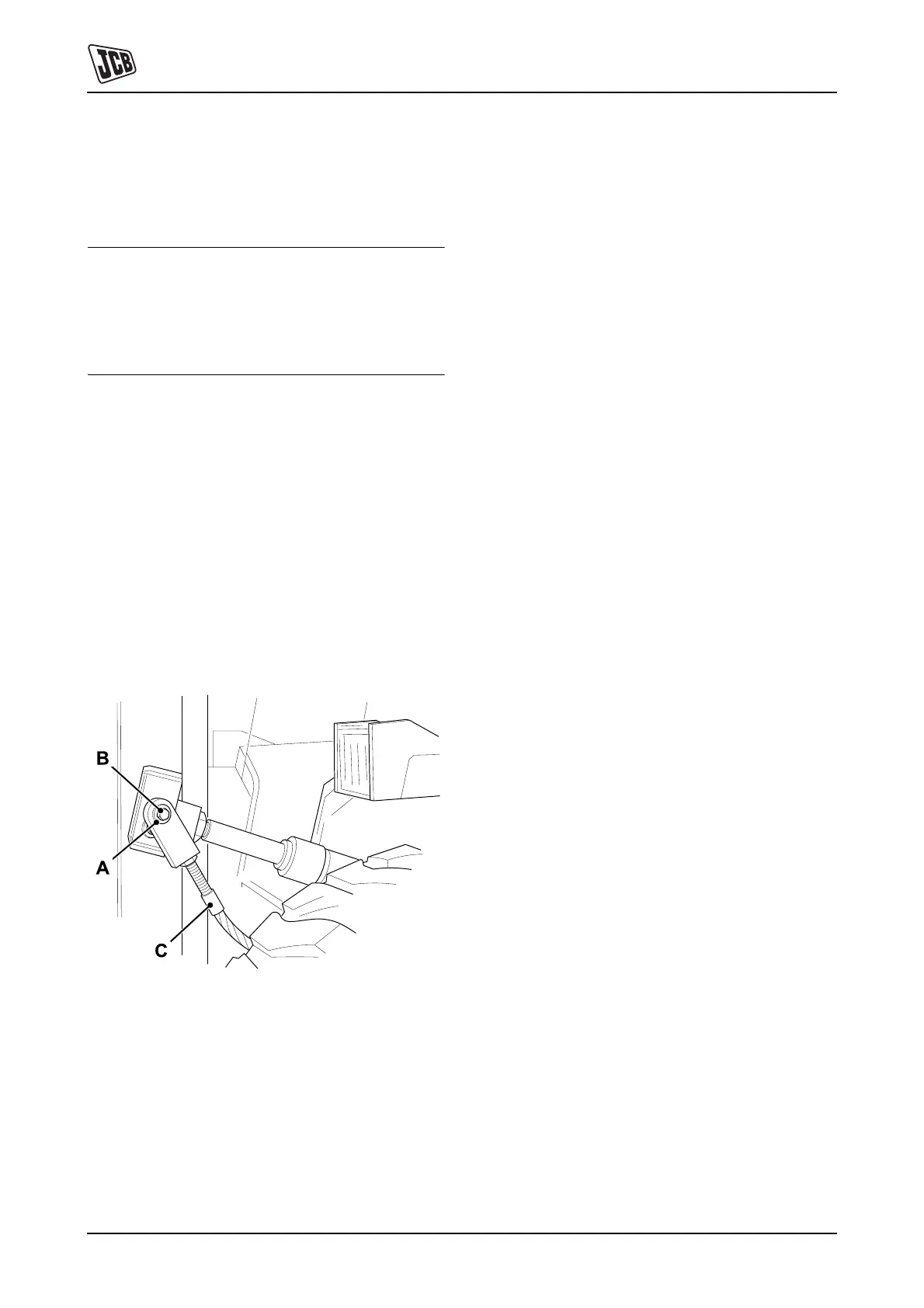

Fig 67.
