18 - English

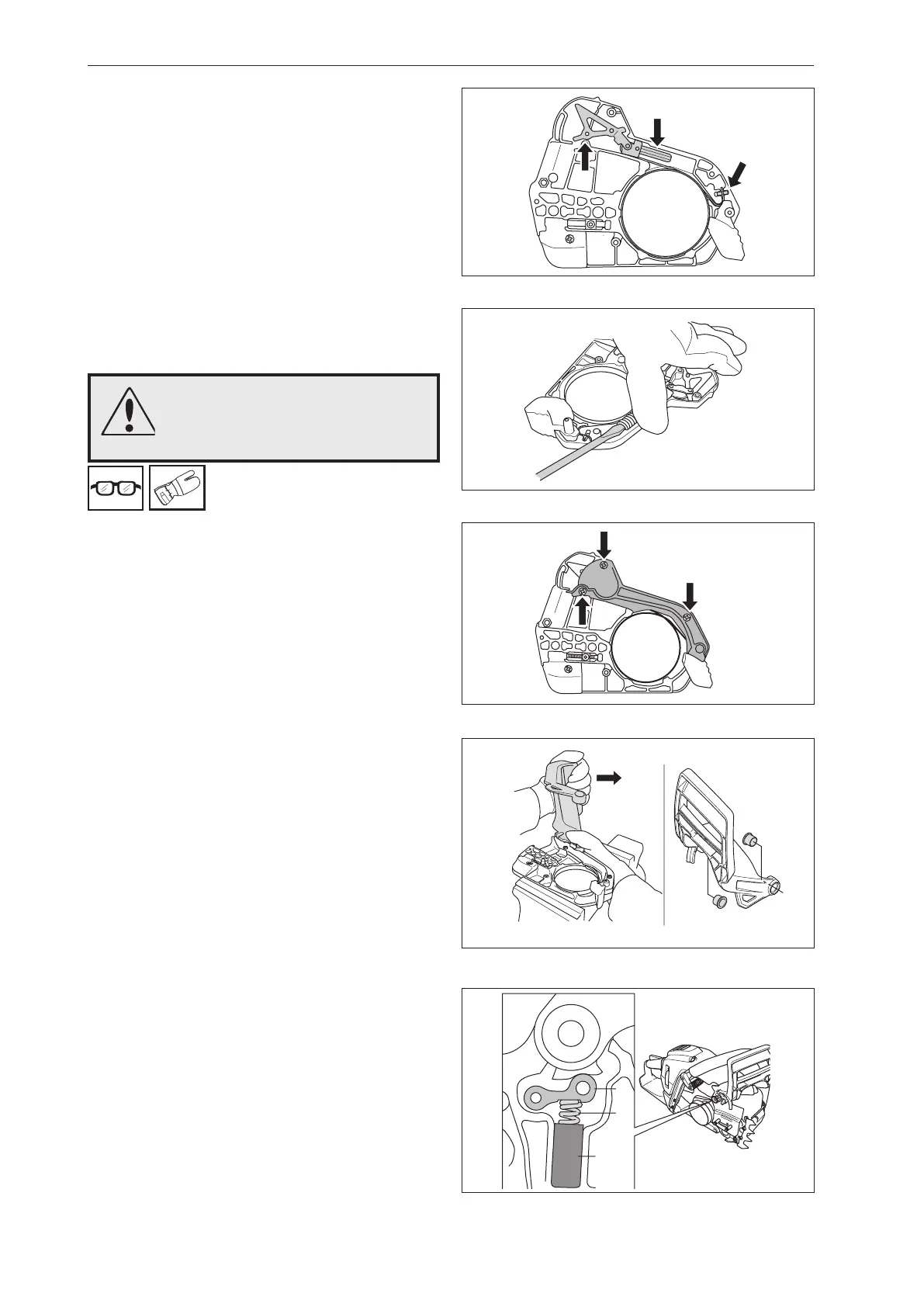

6.2 Assembling the chain brake
1
Screw the knee joint and the brake band together
(see gure 5) using a tightening torque of 1-1.5
Nm. Place the knee joint with the tted chain brake
band in the opening in the clutch cover. The space
for the spring in the cover must be lubricated with
grease. See gure 6.
2
Compress the spring with a wide screwdriver and
press it down with your thumb. See gure 7.
3
Fit the cover over the brake spring using 1-1.5 Nm
tightening torque. See gure 8.
WARNING!
Exercise care to ensure the spring
does not fly out and cause personal
injury. Wear protective goggles.
4
Tighten the brake by using the saw’s hand guard
as a tool. Mesh with the brake and tighten clock-
wise until the brake is in the off position. See
gure 9.
5
NOTE! Make sure the bushings in the kickback
guard’s attachments are kept in place from the
inside. See gure 9.
Screw the kickback guard in place and put the
rocket in position. Position the spring (B) in the
plastic housing (C) (see gure 10) and press the
spring against the rocker and then press the plastic
housing into its groove. Tighten the chain guide
plate in place.
Fit the:
• The bar
• The chain
• The clutch cover
• The cylinder cover
Safety equipment
Fig 6
Fig 7
Fig 8
Fig 9
A
B
C
Fig 10
