Jonsered CS 2258 Workshop Manual

20 - English
6.5 Replacing the chain catcher
A worn chain catcher must always be replaced with
a new one. Always use original spare parts.
1
Release the brake by moving the front hand guard
backward.
Loosen the bar nuts and remove the clutch cover,
chain and bar.
2
Remove the chain catcher and replace it with a
new one.
Make sure that the vibration element is tted cor-
rectly on the crankcase when a new chain catcher
is screwed in place. See gure 13.
Safety equipment
6.6 Dismantling the start/stop control
1
Remove the cylinder cover and air lter. Dismantle
the air lter holder. See the “Dismantling the carbu-
rettor” chapter.
2
Loosen screw B and dismantle the stop control A.
See gure 14. Unhook the rubber collar around the
control from the guide plugs.
Cleaning and inspection
Clean and check carefully all components. Parts
must be replaced if cracked or show signs of other
defects. Always use original spare parts.

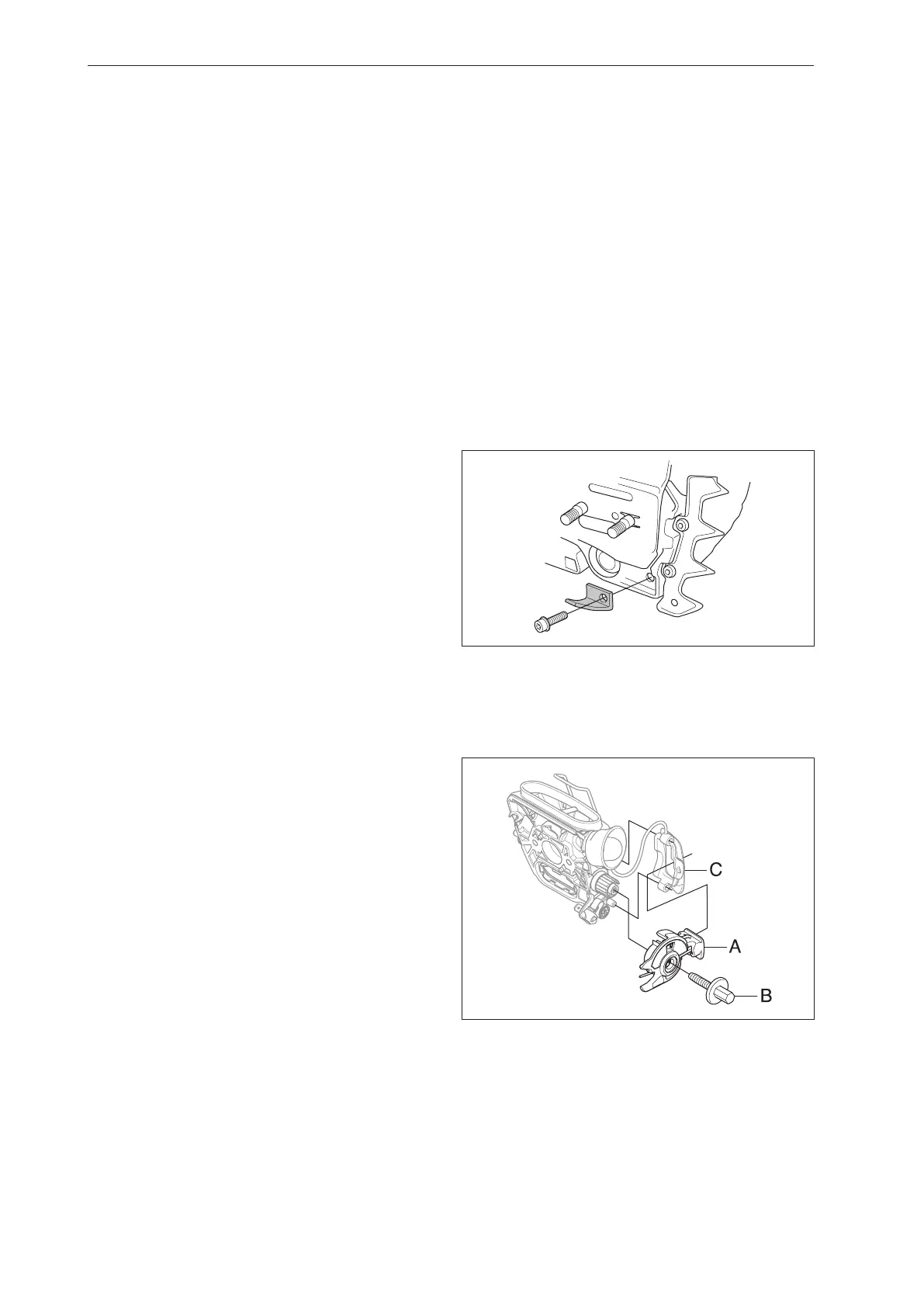

Fig 13
Fig 14
6.4 Assembling the muffler
1
If the saw is tted with a spark arrestor mesh, put
it in place rst. When tting the mesh, make sure
that the mesh is inserted in the right position. If
necessary, use the combination spanner to insert
the mesh.
2
Fit the:
• cooling n
• gasket
• mufer (cylinder screw), tightening torque of 19
Nm.
• mufer (crankcase screw), tightening torque of
14-16 Nm.
• Cylinder cover
3
Warm up the chain saw for at least one minute and
retighten the mufers cylinder screws to 17 Nm.
