30 - English
Repair Instructions
4
Secure the clutch in a vice as shown in gure 3.
Carefully remove the clutch springs. Remove the
clutch shoe springs from the side that does not
have text.
NOTE!
Be careful with the clutch springs, as
opening them too much can result in
material damage.
Cleaning and inspection
• Clean and check all parts carefully. Parts must
be replaced if cracked or showing signs of
other defects. Always use original spare parts.
• Check the thickness of the clutch shoes by meas-
uring them with slide callipers across the whole
clutch hub. If the thickness is below 65 mm,
the clutch must be replaced. See gure 3.
2
Loosen the spark plug hat and remove the
spark plug, and insert the plastic piston stop
(575 29 36-01). See gure 2.
3
Loosen the clutch using tool 575 25 14-01nd a suit-
able socket wrench or combination spanner. Turn
the clutch clockwise to loosen it. See gure 2.

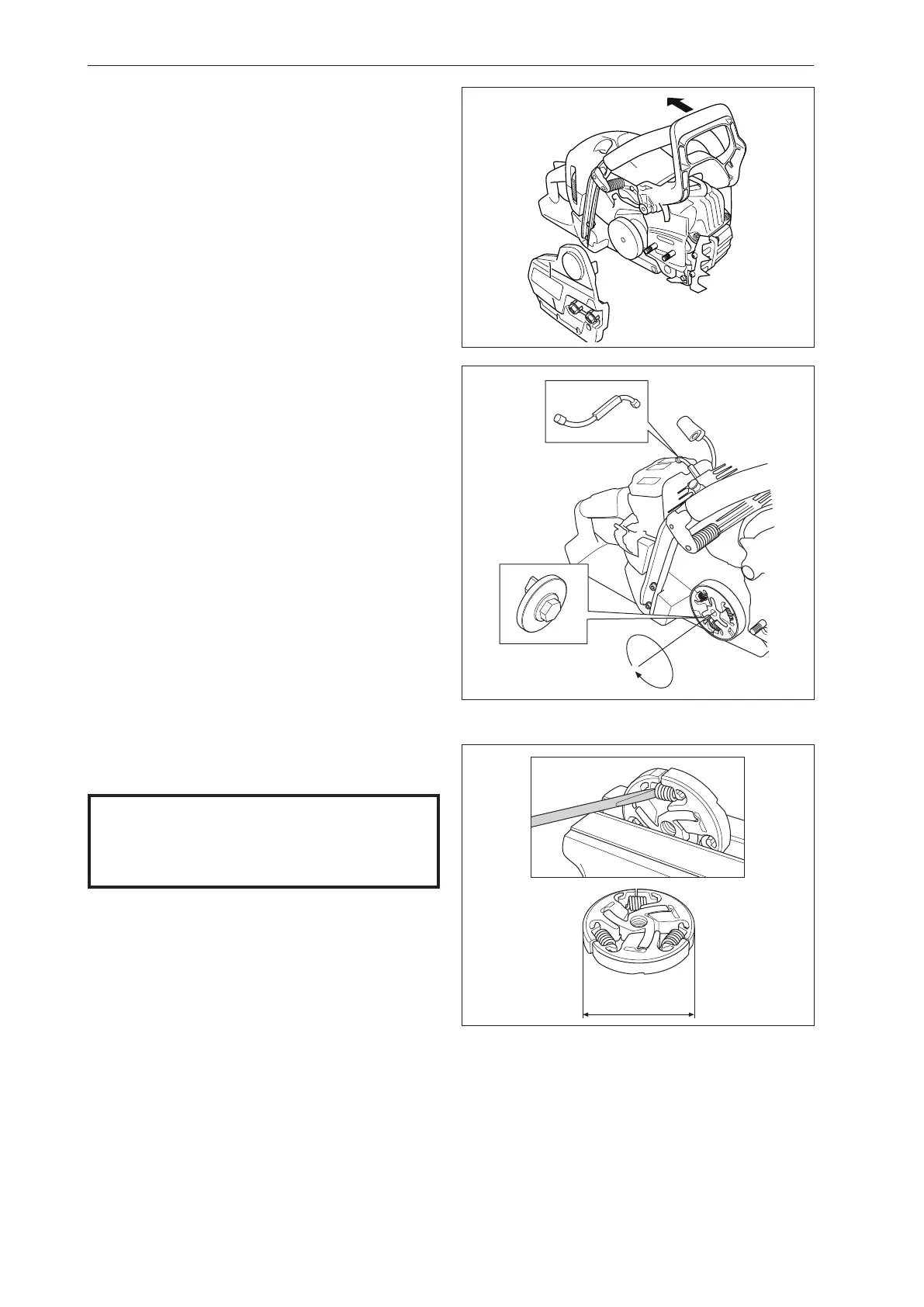

7.8 Dismantling the centrifugal clutch
1
Remove the cylinder cover. Release the brake by
moving the kickback guard backwards. Loosen the
bar nuts and remove the clutch cover, chain and
bar. See gure 1.
Fig 1
Fig 3
Min. 65 mm
Fig 2
