6.10 Assembling the throttle control
lock, throttle control and spring
1
Lubricate the pin and joined surfaces with a light
oil. Hook on the throttle cable (D). Slide in the
throttle control and make sure the spring is tted as
outlined in gure 24.
NOTE! Make sure that the rear end of the throttle
control is correctly aligned inside the cut-out edg-
ing before the pin is pressed in place.
Safety equipment

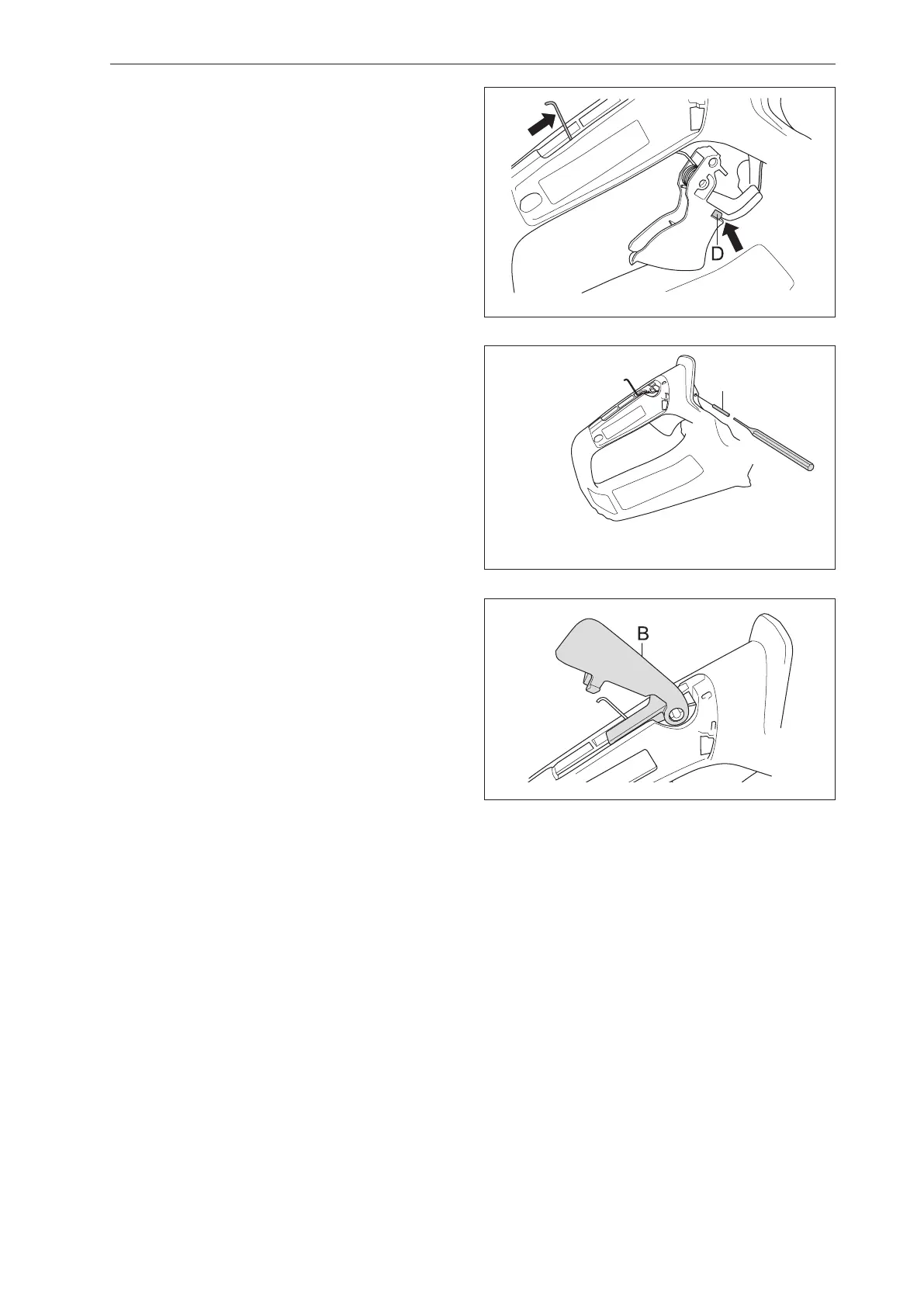

Fig 24
Fig 25
Fig 26
C
2
Fit the throttle control’s pin (C) using a punch. See
gure 25.
3
Fit the throttle control lock (B) by sliding it on the
shaft in the handle. See gure 26. Make sure the
spring is positioned inside the throttle control lock
when you press it down so that the barbs are
hooked in place.
4
Fit the handle insert using a screw, when the
throttle control, spring, throttle cable and throttle
control lock with pin are tted correctly.
