Repair Instructions
7.11 Assembling the oil pump and screen
1
Lower the oil lter in place and replace the oil pump
as outlined in gure 19 and tighten the screws.
2
Fit the pump drive wheel, the needle bearing, the
drive sprocket, the clutch drum and the clutch, us-
ing a tightening torque of 25 Nm.
3
Adjust the oil pump. See Figure 21.
4
Fit the clutch. See the “Assembling the centrifugal
clutch” chapter.
5
Fit the chain, bar and clutch cover.
WARNING!
Insufficient chain lubrication can
result in chain breakage, which
can cause serious personal injury.
7.12 Dismantling the intake system
The intake system consists of:
• The inlet manifold, A
• The partition wall, B
• The intake ange, C
See Figure 22.
1
Dismantle the cylinder cover.
2
Loosen screws D and the movement limiter E as
outlined in gure 23. Loosen the ignition cable.

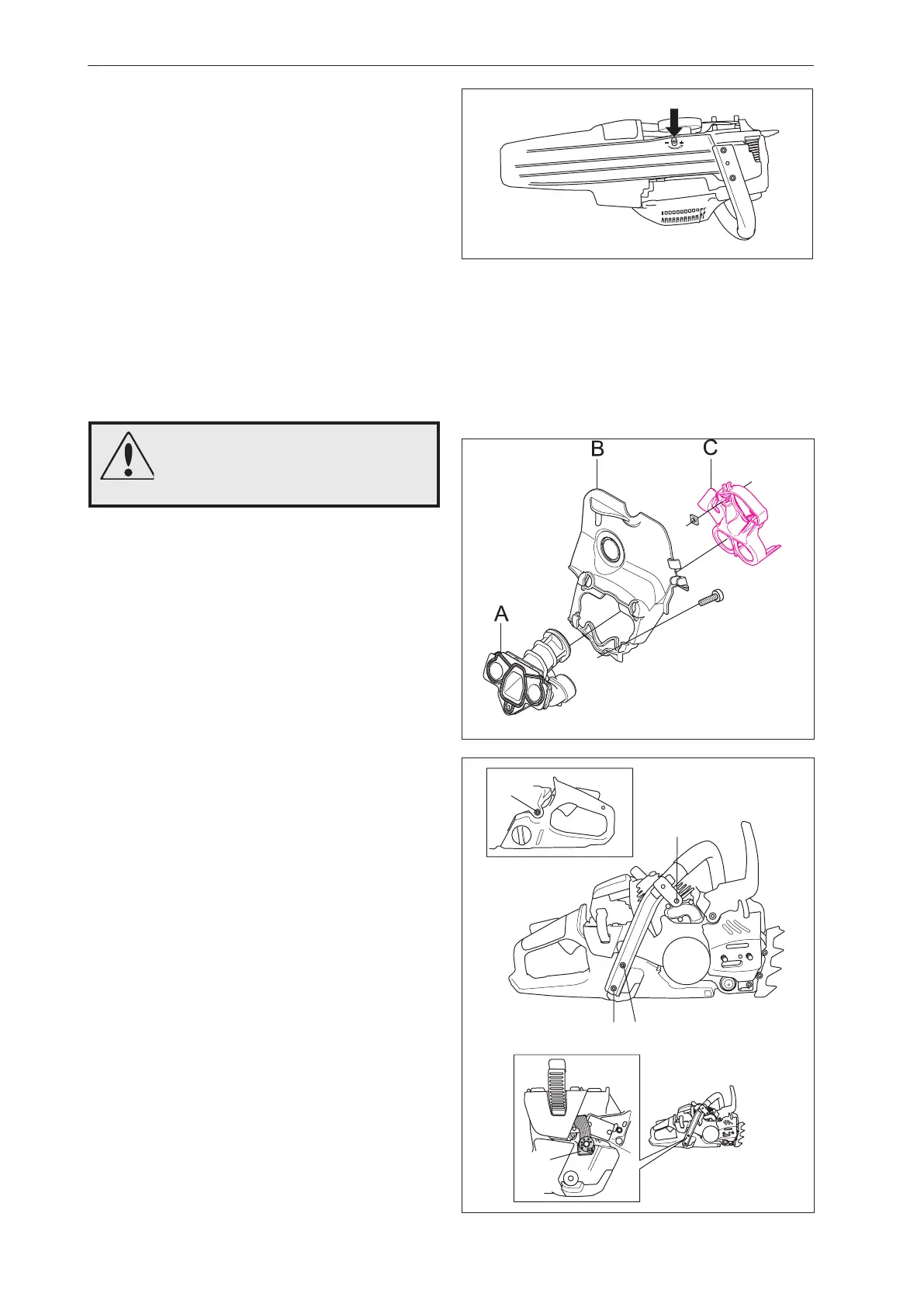

Fig 21
Fig 22
Fig 23
