English - 31

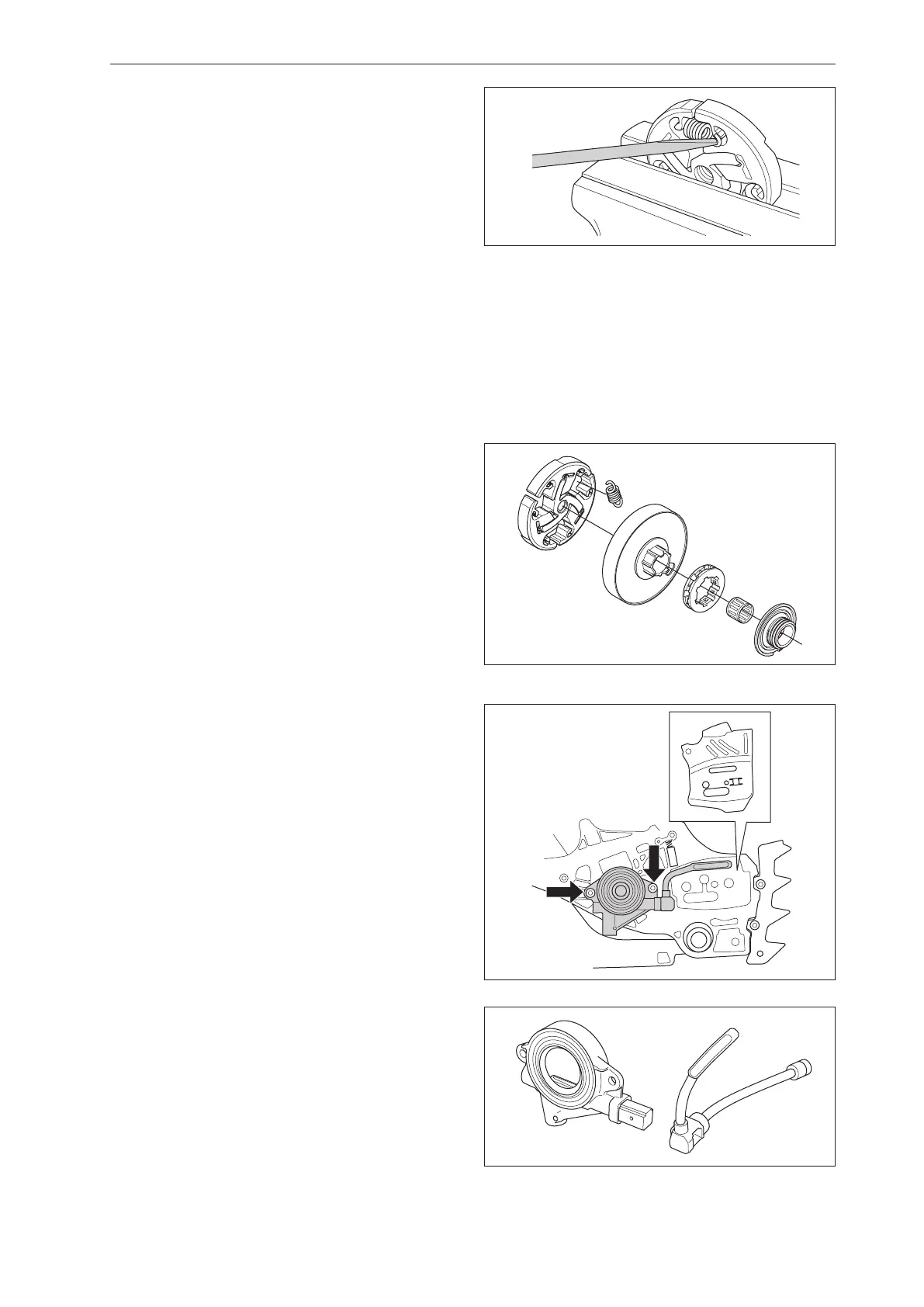

7.9 Assembly of centrifugal clutch
1
Insert the clutch springs on the side of the shoes
without text. See gure 1.
2
Screw in the clutch (anti-clockwise) until it stops.
Then tighten the clutch using tool 575 25 14-01
and a suitable socket wrench or combination span-
ner. Tightening torque of at least 25 Nm.
3
Remove the piston stop and t the spark plug
using a tightening torque of 20 Nm and the spark
plug hat.
Then t:
• The cylinder cover
• The bar
• The chain
• The clutch cover
7.10 Dismantling the oil pump and
screen
1
Empty and clean the oil tank.
Dismantle the centrifugal clutch as outlined in
“Dismantling the centrifugal clutch”.
2
Loosen the clutch drum, the drive sprocket, the
needle bearing and the pump drive wheel. See
gure 18.
3
Unscrew the chain guide plate. See gure 19.
4
Loosen the screws on the oil pump from the crank-
case and remove it together with the oil pressure
hose. See gure 20.
Cleaning and inspection
• Clean and check all parts carefully. Parts must
be replaced if cracked or showing signs of
other defects. Always use original spare parts.
• Lubricate all moving parts with chain oil.
Repair Instructions
Fig 1
Fig 19
Fig 18
Fig 20
