Jonsered CS 2258 Workshop Manual

English - 43
Assembly

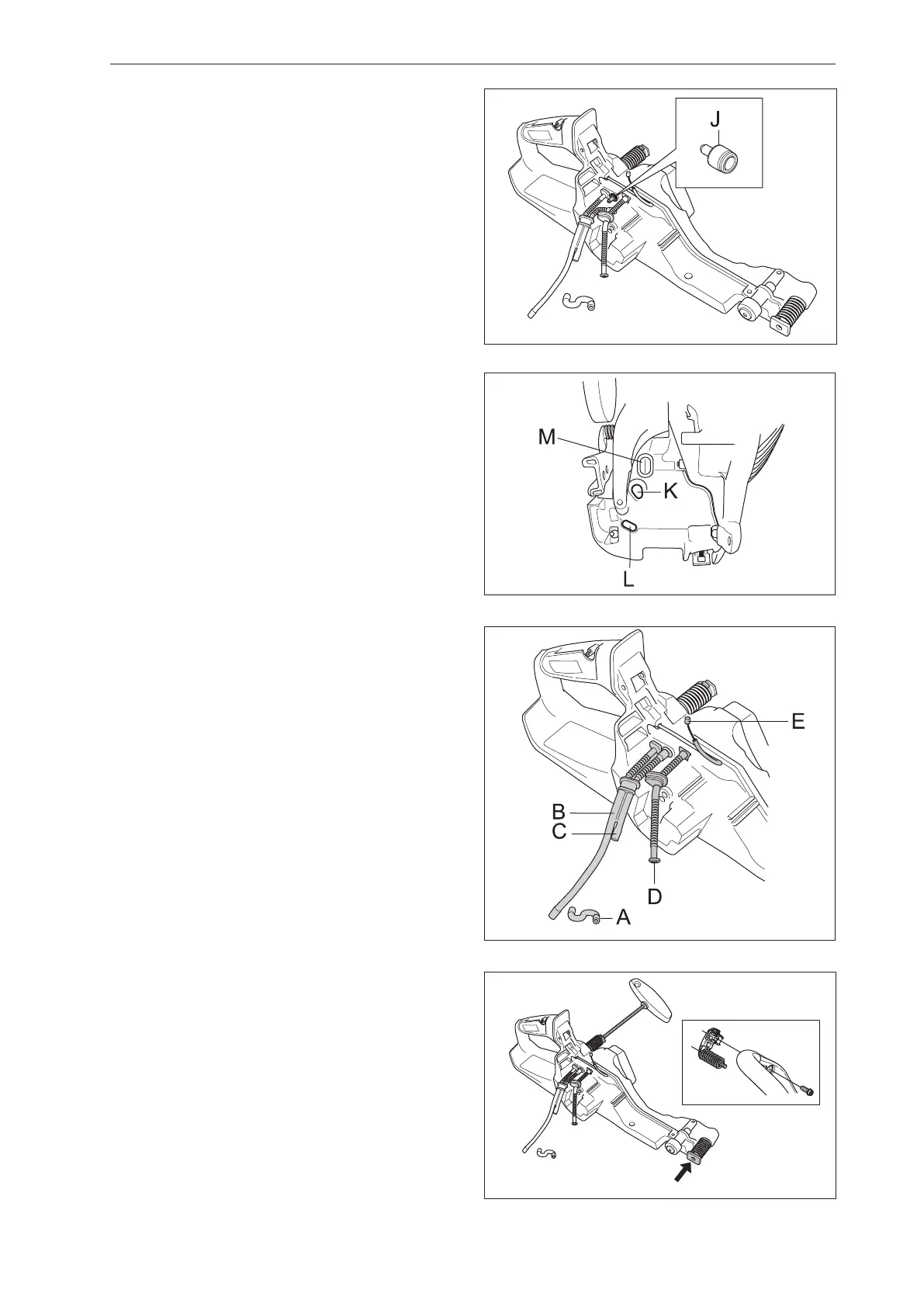

1. Thread the throttle cables in the connection M
as outlined in gure 55. NOTE! The gure is
shown from underneath.
2. Run the fuel hose D through hole K and hoses
B and C in hole L. See gure 55. Pull the
hoses so that the collars are on each side of
the bottom on the carburettor compartment.
3. Tighten the chain catcher in place.
4. Press the movement limiter H into position. See
gure 53.
5. Tighten the screws F. See gure 51.
6. Hook on the throttle cable E in the intake bel-
low. See gure 50.
7. Fit the tank unit. The two short screws are tted
to the bottom of the handle bar.
8. Assemble the carburettor as outlined in “As-
sembling the carburettor”. Assemble the air
lter and cylinder cover.
Repair Instructions
7.17 Vibration damping system
Dismantling
1. Dismantle the following parts:
• Bar and chain. See the Operator’s Manual.
• Cylinder cover. See the Operator’s Manual.
• Tank unit and handle. See “Dismantling the
tank unit”.
2. Dismantle the spring on the handle bar using a
4 mm Allen key (see gure 57).
3. Dismantle the springs on the tank unit using
a 4 mm Allen key (tool 502 50 18-01). See
gure 57.
Cleaning and inspection
Clean and inspect all parts.
Assembly
1. Fit the springs on the handle bar using a 4 mm
Allen key (tool 502 50 18-01).
2. Assemble the following parts:
• Tank unit and handle. See “Assembling the
tank unit”.
• Cylinder cover. See the Operator’s Manual.
• Bar and chain. See the Operator’s Manual.
Fig 55
Fig 54
Fig 56
Fig 57
