– 6 –
8.
油量(跡)調整方法
/
ADJUSTING THE AMOUNT OF OIL (OIL SPLASHES)
/
油量(迹)调整方法

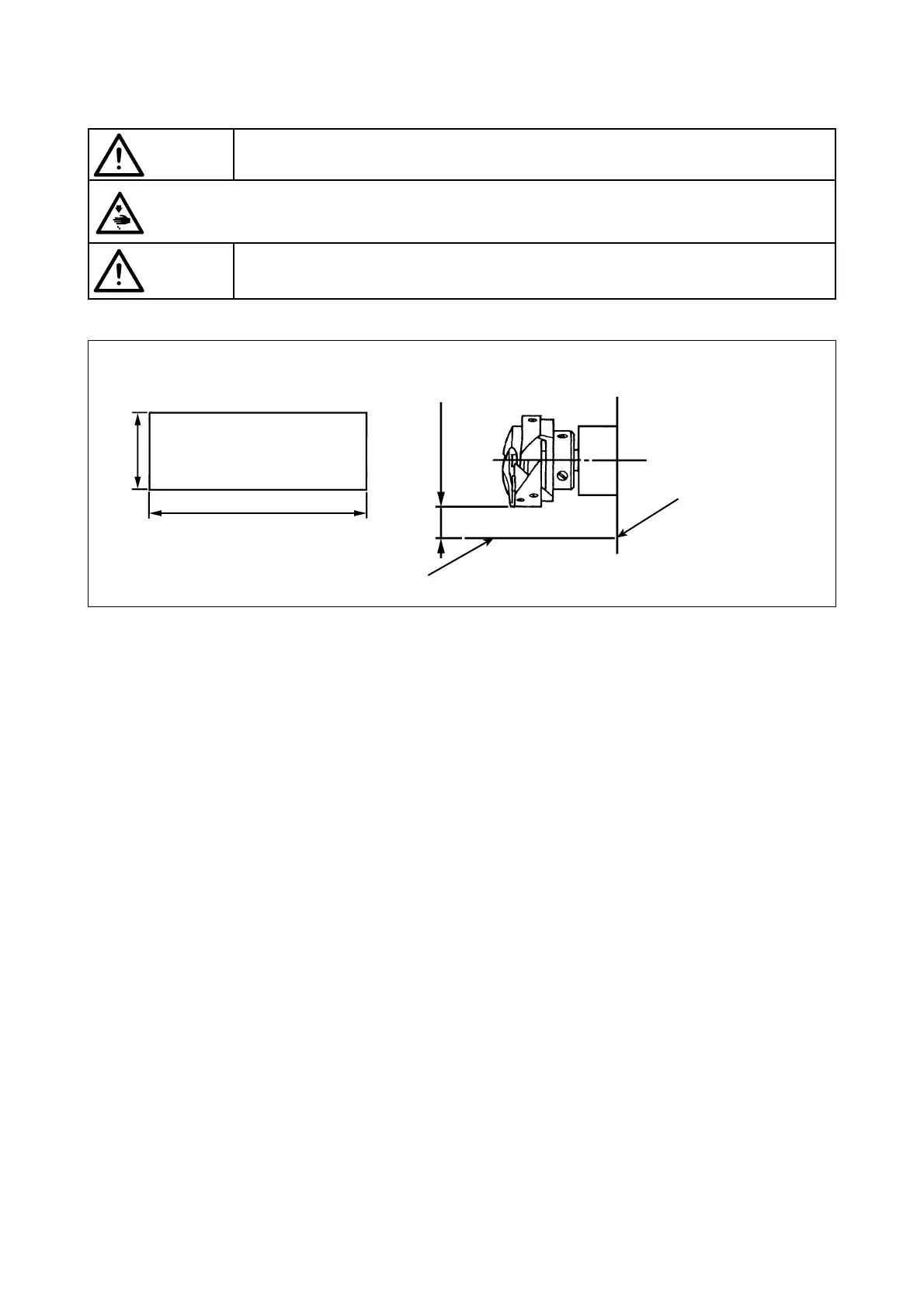

① 油量(跡)確認用紙
Amount of oil (oil splashes) con rmation paper
油量(迹)确认专用纸
② 油量(跡)確認位置
Position to con rm the amount of oil (oil splashes)
油量(迹)确认位置
ベッドの壁に当てること
Closely t the paper against
the wall surface of the bed.
应顶到接油槽壁
油跡確認用紙
Oil splashes con rmation paper /
油迹确认专用纸
3 - 10 mm
25 mm
70 mm
※以下 2)の作業を行う時は、すべり板を外し、指が釜に触れないよう十分注意してください。
1)冷えた頭部の場合は、3 分程度の空運転を行ってください。(適度な断続運転)
2)油量(跡)確認用紙は、ミシンを運転した状態で挿入してください。
3)油溜りの油面の高さは、HI LOW の範囲内にあることを確認してください。
4)油量(跡)確認所要時間は、5 秒間で行ってください。(時計で計ってください。
* When carrying out the procedure described below in 2, remove the slide plate and take extreme caution not to
allow your ngers to come in contact with the hook.
1) If the machine has not been suf ciently warmed up for operation, make the machine run idle for approximately
three minutes. (Moderate intermittent operation)
2) Place the amount of oil (oil spots) con rmation paper under the hook immediately after the machine stops running.
3) Con rm the height of the oil surface in the oil reservoir is within the range between “HIGH” and “LOW”.
4) Con rmation of the amount of oil should be completed in ve seconds. (Check the period of time with a watch.)
进行下列 2)的作业时,请卸下滑板,同时要充分注意手指不要碰到旋梭。
1) 冷机头时,请进行 3 分钟左右的空运转。(适当的断续运转)
2) 油量(迹)确认专用纸在缝纫机转动后的状态下插进去。
3) 请确认油量的油面高度应在 HI LOW 的范围之内。
4) 确认油量(迹)所需要的时间为 5 秒钟。(应看着表)
(1)
釜部油量確認/
Con rmation of the amount of oil in the hook /
旋梭油量确认
警告
警告
ミシンの不意の起動による事故を防ぐため、電源を切ってから行ってください。
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
为了防止意外的起动造成的事故,请关掉电源后进行操作。
