JUKI LS-1300 Series User Manual

−16 −

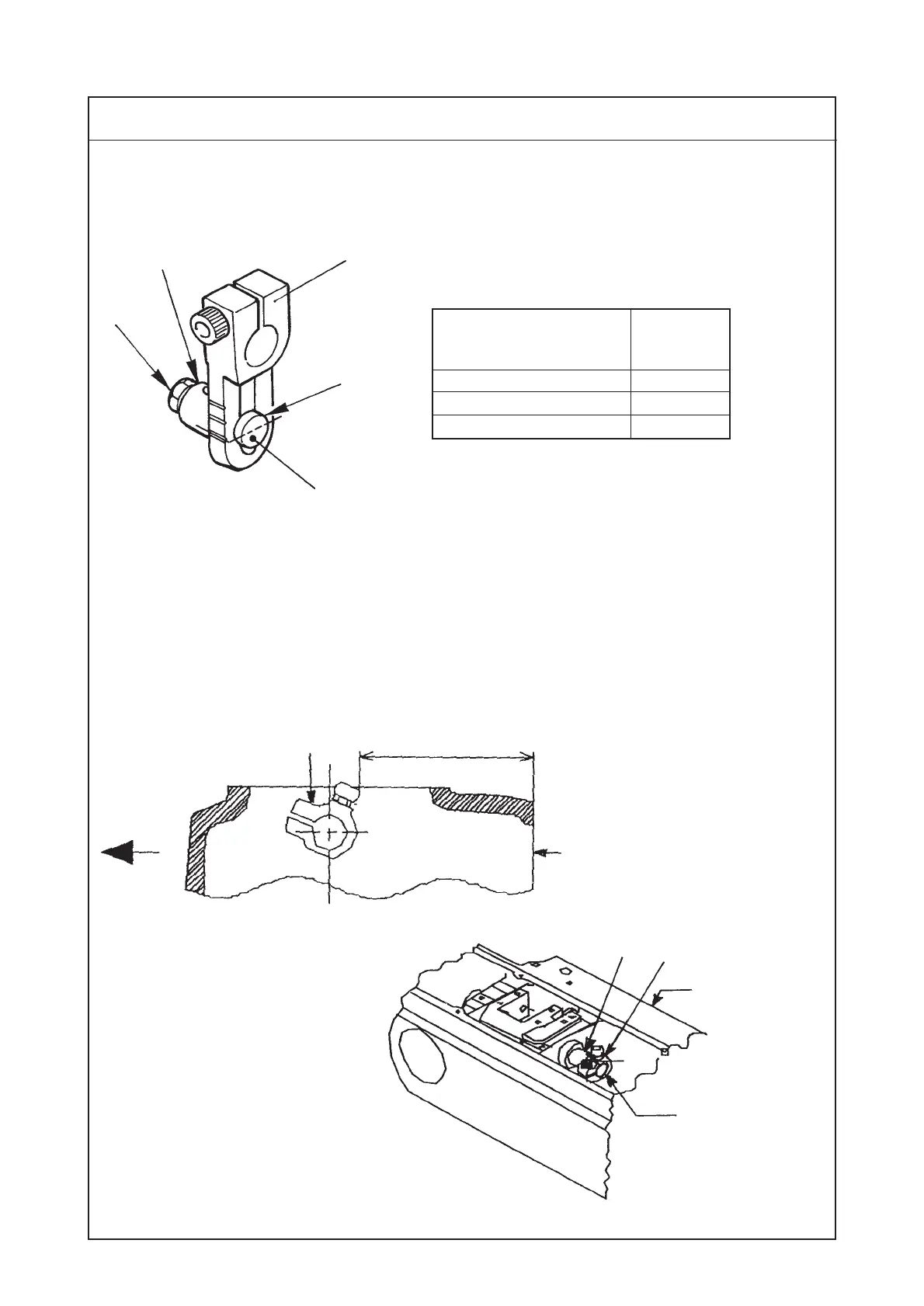

Standard Adjustment
(10) Feed motion
1) Amount of alternate vertical movement
™ In case of LS-1340 and LS-1341
1
2
4
5
6
7
8
73 to 74 mm
5
Hinge screw
Standard : When hinge screw 4 is in the lowest point.
Standard of amount of alternate vertical movement
: Upper engraved marker line : Approx. 5 mm
: Medium engraved marker line : Approx. 4 mm
: Lower engraved marker line : Approx. 3 mm
Table of sewing speed
™ In case of LS-1340 and LS-1341
™ In case of LS-1342 and LS-1342-7, refer to “3. (2)-1)
Installing position of the detection switch of the amount
of alternate vertical movement”.
™ In case of LS-1342 and LS-1342-7
Operator’s
side
Edge of
machine arm
To align
with edge
Top feed rear arm
Amount of alternate vertical
movement of the walking foot and
presser foot
Less than 3 mm
3 mm to less than 4 mm
4 mm to less than 6.5 mm
Stitch length :
6 mm or less
2500 rpm
2000 rpm
1600 rpm
