No. Portion to which LOCKTITE is applied Part No. LOCKTITE No.
1 Alternate dial shaft bushing 10715100 LOCKTITE #638
2 Vertical change base arm pin 10715308 LOCKTITE #638
3 Feed adjusting rod hinge screw SD0800402TP LOCKTITE #638
4 Verticsal change base support shaft screw 21337803 LOCKTITE #243
5 Thread release bar 21441209 LOCKTITE #243
5. PORTION TO WHICH LOCKTITE IS APPLIED
LOCKTITE has been applied to the following parts at the time of assembly at the factory.When an assembly
which includes the aforementioned parts has been disassembled, be sure to wash the LOCKTITE applied
part using a paint thinner or the like, and re-assemble it using LOCKTITE after removing any moisture from
the mating faces.
If it is hard to remove a part which has been fixed using LOCKTITE, heat it using a torch lamp or the like to
help remove the part.

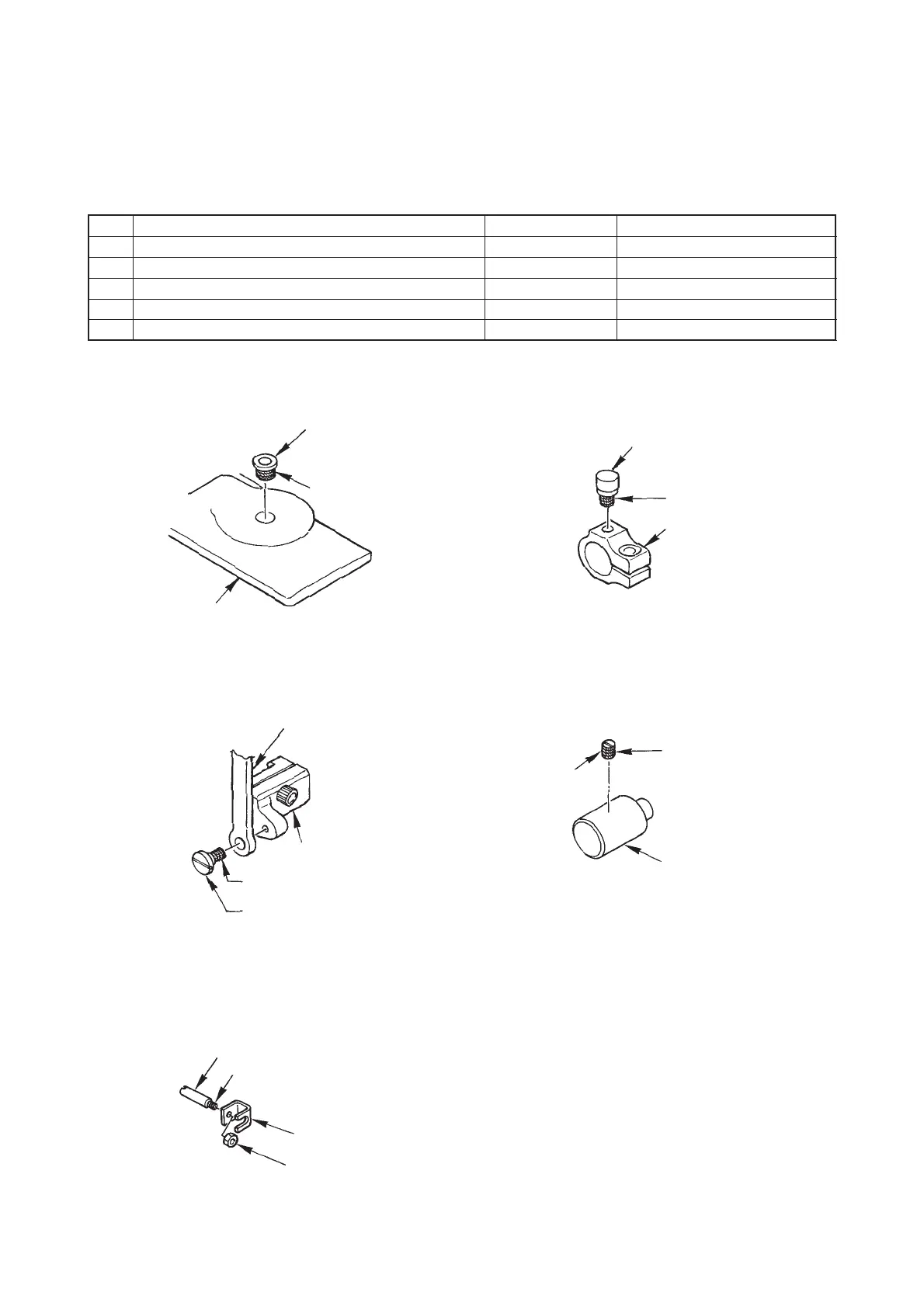

No.1
Alternate dial shaft bushing
LOCKTITE
applied
Top cover B
No.2
Vertical change
base arm pin
LOCKTITE
applied
Vertical adjusting
arm
No.3
Feed adjusting rod
Fedd adjusting
base
LOCKTITE applied
Feed adjusting rod
hinge screw
No.4
Setscrew
LOCKTITE
applied
Vertical change base
support shaft
No.5
Thread release bar
LOCKTITE applied
Thread release bar coupling
Thread release bar coupling nut
(Caution) Avoid disassembling these parts to the most.
