Standard Adjustment
Standard Adjustment

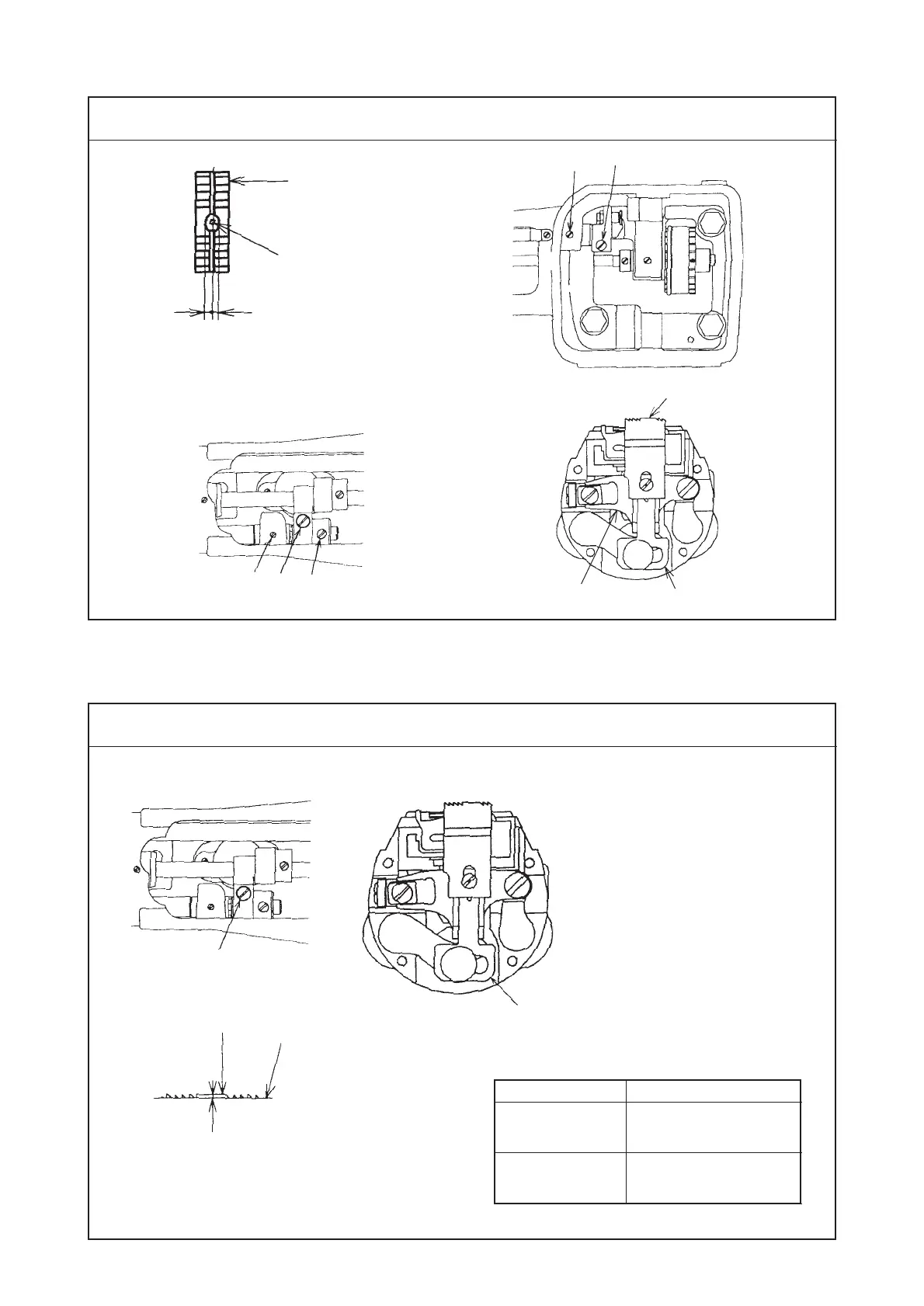

(4) Height of the feed dog
(3) Lateral position of the feed dog
1
2
1
2
aa’
Conditions : Needle bar at lowest dead point
: Feed amount : 0 mm
Conditions : Feed amount : 0 mm
: Height of feed dog is
maximum.
4
3
5
6
7
3
4
A
Model Dimension A
LS-1340 0.8 ±0.1 mm
LS-1341
LS-1342 0.5 ±0.1 mm
LS-1342-7
2
9
8
