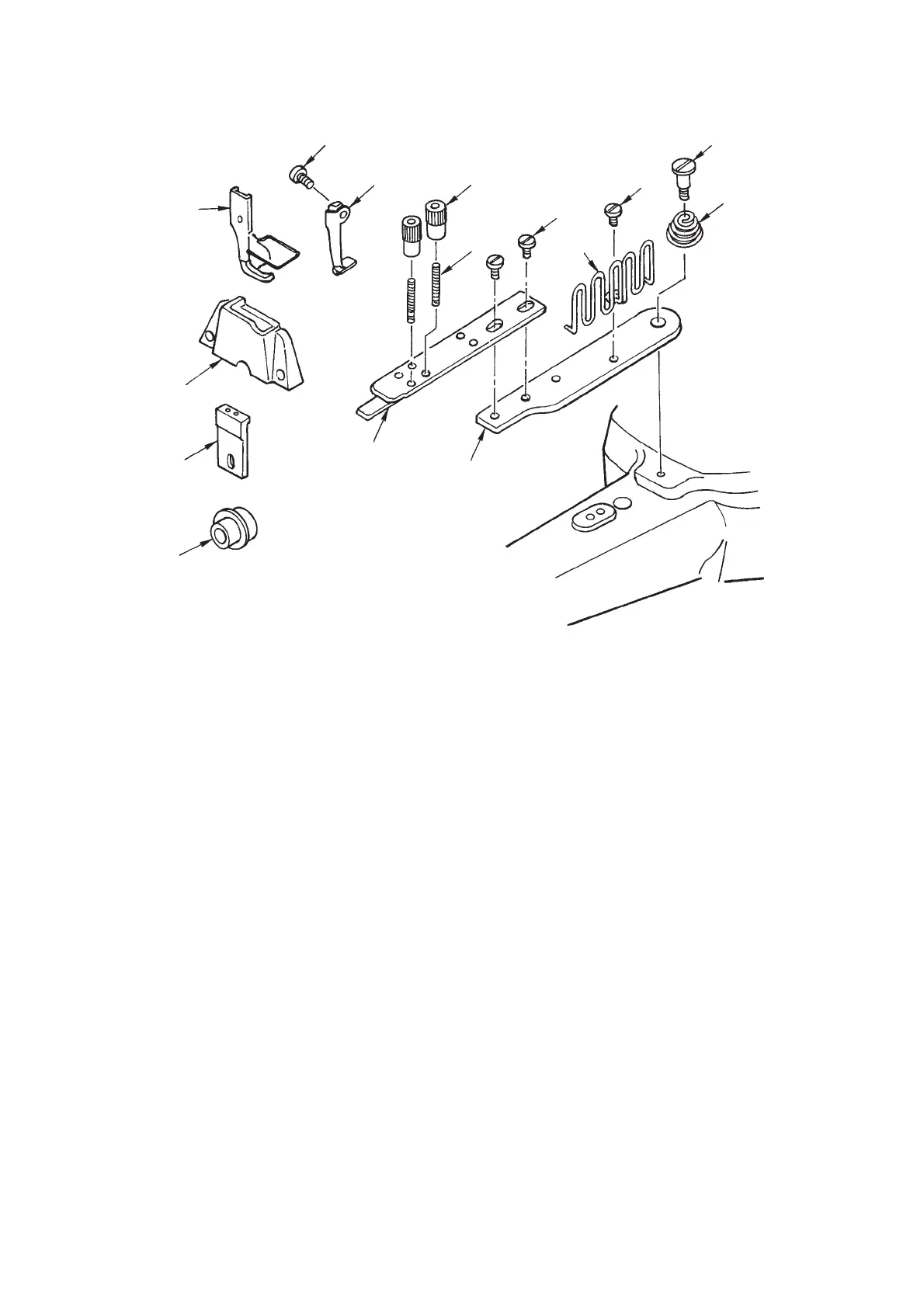

(5) Binder kit
1) Installing procedure of the binder kit after set-up of the machine
1. Attach tape guide 4 to feed plate B 1 with tape guide setscrew 5.
2. Attach binder setscrews 8 to feed plate A 6 and attach binder lock nuts 9 to binder setscrews 8.
3. Temporarily tighten feed plate A 6 which has been assembled at the step 2. to feed plate B 1 with feed
plate connecting screws 7.
4. Pass feed plate hinge screw 3 through feed plate presser spring 2 and with the screw assemble feed
plate B 1 which has been assembled at the step 3. to the binder installing section on the machine bed.
5. Remove the throat plate and the feed dog, and install feed dog !0 and throat plate !1.
6. Remove the presser foot (asm.) and the walking foot (asm.), and install walking foot !3 and presser foot
(asm.) !2. (Walking foot !3 setrscrew !4)
7. Remove the knee press plate and tilt the machine head.
8. Draw out the hook driving shaft, remove the vertical feed cam and install vertical feed cam !5.
9. Loosen feed plate connecting screws 7, adjust the projection of feed plate A 6 to the hole of feed dog
!0 and tighten the setscrews.
(Caution) When drawing out the hook driving shaft, needle-to-hook timing changes. Re-adjust the
timing. Refer to “ (5) Needle-to-hook timing”.
