JUKI LS-1300 Series User Manual

− 37 −
1
2) Installing the pneumatic device components
◎ When installing the automatic presser foot lifter to LS-1342-7 after set-up of the machine
◎ When installing the automatic presser foot lifter only to LS-1340, LS-1341 and LS-1342 after set-up of the
machine
™ Pneumatic device used : AK-123A and AK-123B

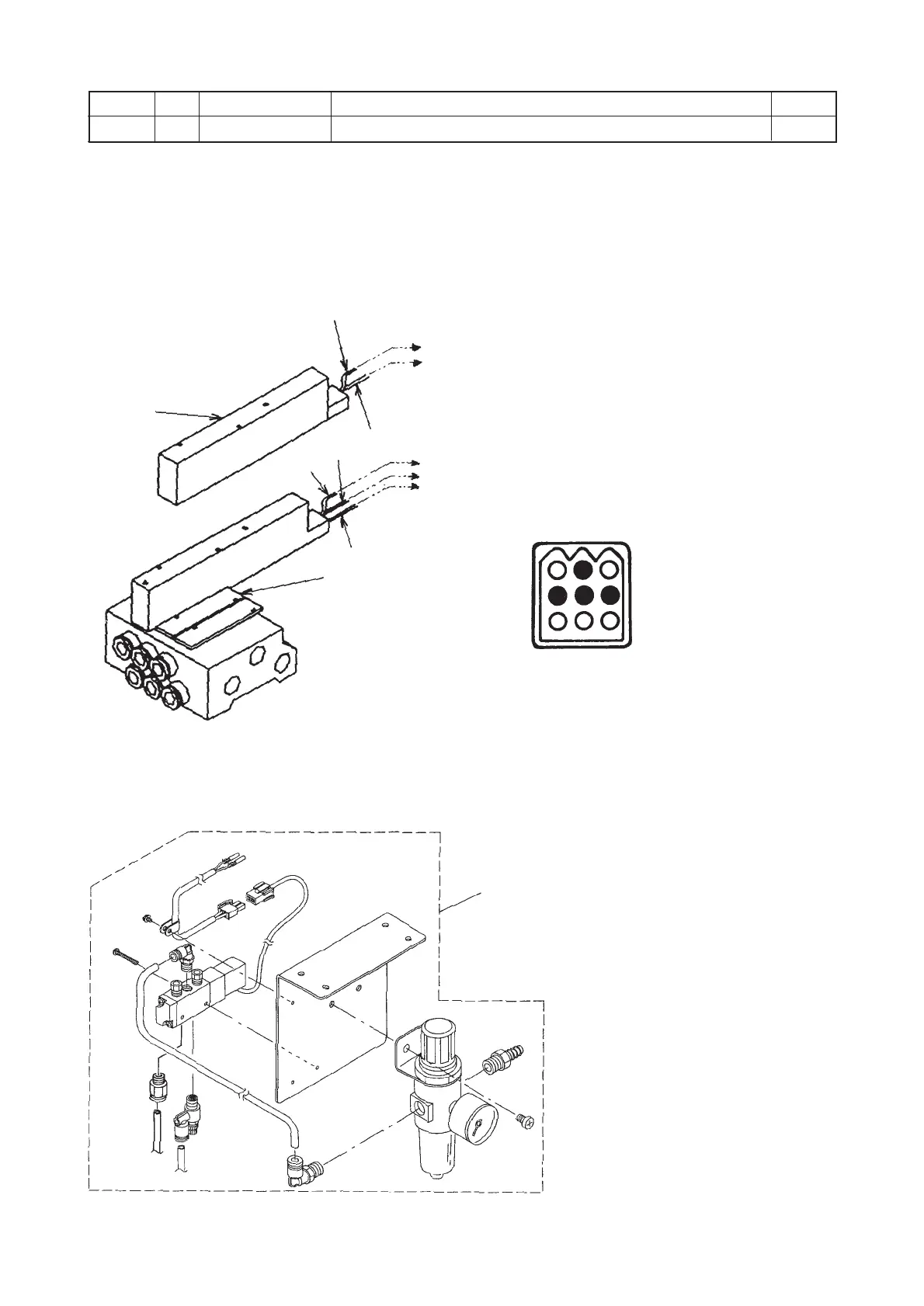

1.Remove block plate 1 and install solenoid
valve E 2 in the form of adding it to solenoid
valve A (asm.) which is being used now.
2.Caulk the pin terminal, male to the top end of
the cord.
3.Insert the pin terminal, male into the plug CN1.
Insert it after making sure of the inserting
position.
™ Pneumatic device used : AK-120A and AK-120B
• Install pneumatic components (asm.) 1 as listed.
※ Specifications of the pneumatic device
• AK- □□□ A : Knee switch type
• AK- □□□ B : Pedal switch type
CN1
3
6
9
1
4
7
1
2
CN1-5
CN1-6
CN1-1
CN1-2
CN1-4
Red
Black
White
Red
Black
Part No.
GAKA14010A0
No.
1
Note Name of part
Pneumatic components (asm.)
Q’ty
1
◎ Neumatic device components (For LS-1340, LS-1341 and LS-1342)
(Caution) When simultaneously installing the automatic reverse feed device and the automatic
presser foot lifter, install the pneumatic device as described below.
Part No. : GAKA17010A0
Name of Part : Pneumatic components (asm.)
