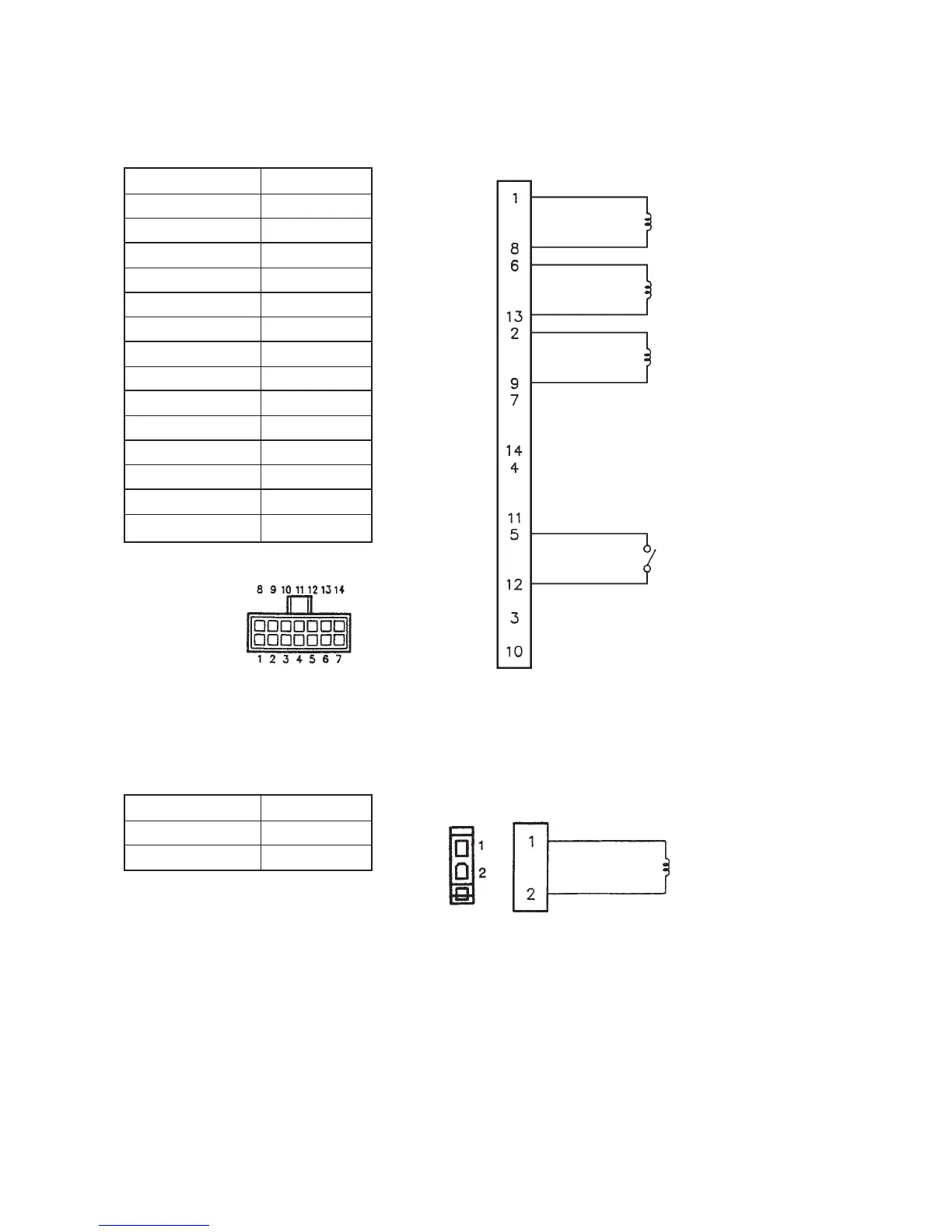

10. CONNECTOR CONNECTION DIAGRAM
Layout of CN36 pins
(1) Solenoid for machine head
Name of signal
Pin No.
TRMD
1
TRM COM
8
BTD
6
BTD COM
13
WPD
2
WPD COM
9
SUB BTD
7
SUB COM
14
OP_IN (FL SW)
3
FLSW
4
BTSW
5
BTSW RTN
12
GND
11
FG
10
TRM (Thread trimming)
Approx. 7.5
Ω
BT (Touch back)
Approx. 6.5
Ω
WP (Wiper)
Approx. 8.5
Ω
BT SW Touch back switch
CN36
CN36
(2) Solenoid Connector for lifting presser foot
FL (Presser foot lifter)
Approx. 5.4
Ω
CN37
CN37
Layout of CN37 pins
Name of signal
Pin No.
FLD
1
FL COM
2
Pin side (insertion side)
