− 3 −
4
3
6
7
8
9
!0
!1
!2
!3
!4 !5
!7
!8
!6
!9

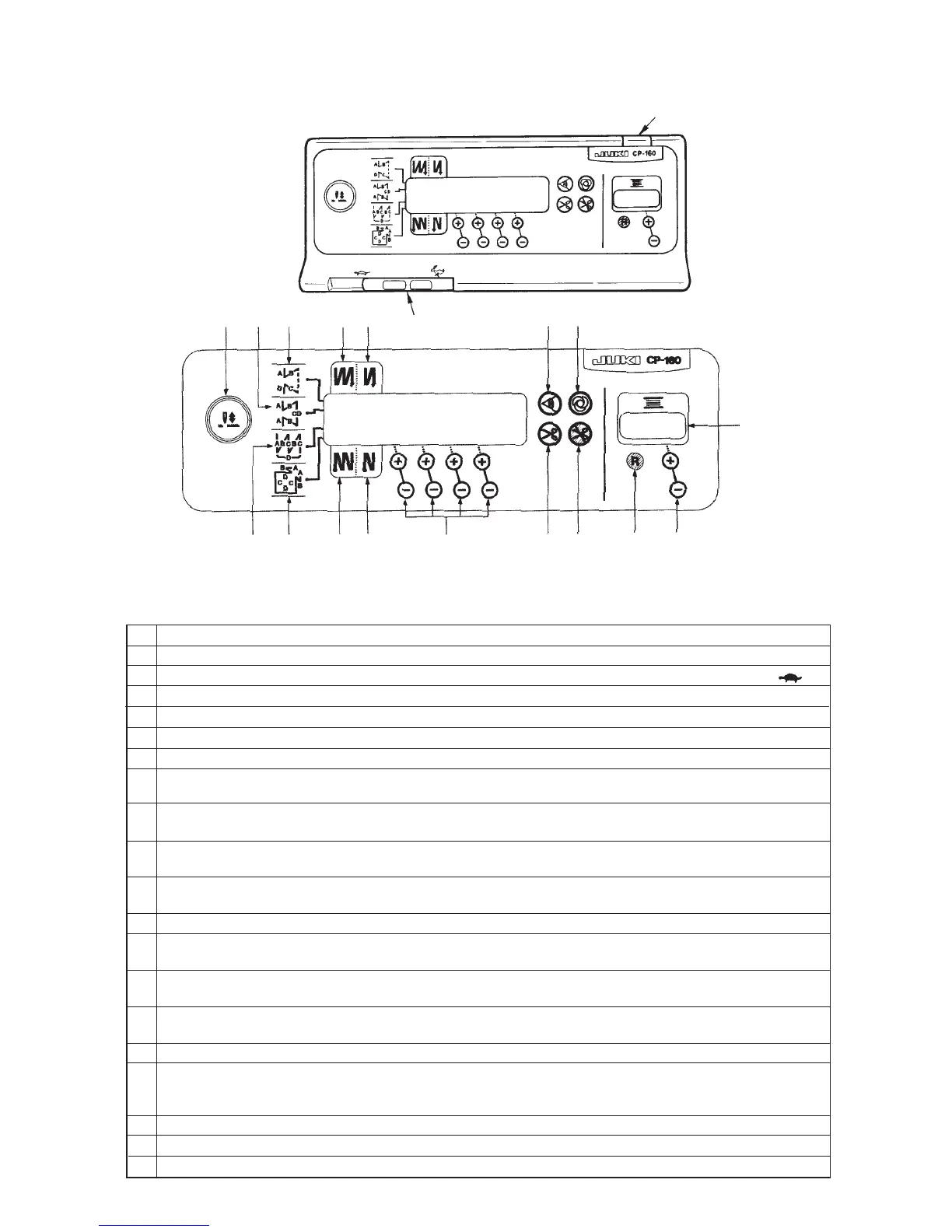

4. EXPLANATION OF OPTIONAL CONTROL PANEL
1) For the connecting destination of the connector, refer to the item (3) of 7. CONNECTING PROCEDURE
WITH JUKI OPTIONAL DEVICES.
2) By connecting of CP-160, all displays of standard operation panel of SC-510 go off.
However, error code No. is displayed only at the time of occurrence of error.
Description
Power indication LED : Lights up when the power switch is turned ON.
Max. speed limit variable resister : Maximum speed is limited when this resister is moved in the left direction (
).
Reverse stitching pattern switch : Used for specifying the reverse stitching pattern to be sewn.
Overlapped stitching pattern switch : Used for specifying the overlapped stitching pattern to be sewn.
Constand dimension stitching pattern switch : Used for specifying the constant dimension stitching pattern to be sewn.
Rectangular stitching pattern switch : Used for specifying the rectangular stitching pattern to be sewn.
Automatic reverse stitching at the start of sewing switch : Used for turning ON / OFF the automatic reverse stitching
at the start of sewing.
Automatic reverse stitching at the end of sewing switch : Used for turning ON / OFF the automatic reverse stitching at
the end of sewing.
Automatic double reverse stitching at the start of sewing switch : Used for turning ON / OFF the automatic double
reverse stitching at the start of sewing.
Automatic double reverse stitching at the end of sewing switch : Used for turning ON / OFF the automatic double
reverse stitching at the end of sewing.
Switches for setting the number of stitches : Used for setting the number of stitches to be sewn in processes A through D.
Material edge sensor ON / OFF switch : Rendered effective when the material edge sensor is installed on the machine.
Used for selecting whether or not the material sensor is used during sewing.
One-shot automatic stitching switch : Start the sewing machine with this switch, and the sewing machine will run
automatically until the material edge is detected or the end of the set number of stitches is reached.
Automatic thread trimming switch : When the material edge is detected, the machine will perform thread trimming even
when keeping depressing the front part of the pedal.
Thread trimming prohibition switch : Used for prohibiting thread trimming at any occasion.
Bobbin thread counter : Indicates the amount of bobbin thread while counting it by subtracting from the set value. When
the bobbin thread remaining amount detecting device is installed on the machine, the counter indicates the number of
times of detecting.
Bobbin counter reset switch : Used for returning the value shown on the bobbin thread counter to the initial value.
Bobbin thread amount setting switch : Used for setting the amount of bobbin thread.
Needle up/down compensating switch : Used when performing needle up / down compensating stitching.
No
(1) List of control panel of CP-160
1
2
3
4
5
6
7
8
9
!1
!2
!3
!4
!5
!6
!7
!8
!9
!0
5
1
2
