I/O Card SRX3K-16GE-SFP
The SRX3K-16GE-SFP IOC (Figure 5 on page 10) adds 16 ports for Gigabit Ethernet traffic
from either copper or fiber interface media. It is inserted horizontally into the midplane
of the services gateway to communicate with the SFB and to receive power. To use fiber
interface media, install small form-factor pluggable (SFP) transceivers on the desired
ports. LEDs on the faceplate of the IOC indicate port status and connectivity. Ports are
numbered from top to bottom and left to right, 0-15.

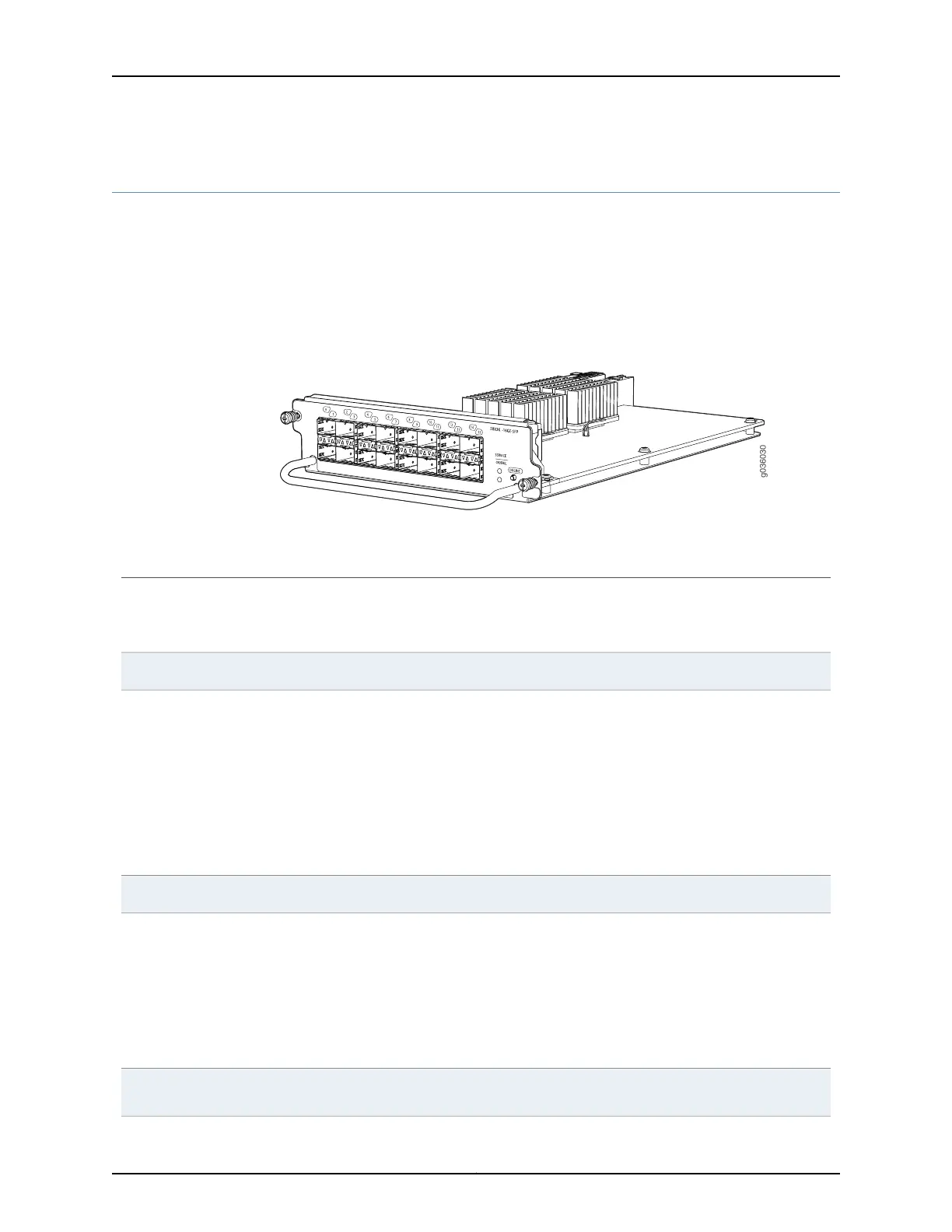

Figure 5: 16-Port SFP Gigabit Ethernet IOC
g036030
For detailed information about supported transceivers, see the SRX Series Services Gateway
Transceiver Guide at www.juniper.net/techpubs/.
•
16-port Ethernet SFP IOC for SRX3400, SRX3600, and SRX1400
•
Power requirement: 52 W maximum
•
Weight: 2.4 lb (1.1 kg)
Description
•
Junos OS Release 9.3 and laterSoftware release
Sixteen SFP sockets for Ethernet transceivers
Supported SFP transceivers:
1000BASE-LH (model numbers SRX-SFP-1GE-LH, SRX-SFP-1GE-LH-ET)
1000BASE-LX (model numbers SRX-SFP-1GE-LX, SRX-SFP-1GE-LX-ET)
1000BASE-SX (model numbers SRX-SFP-1GE-SX, SRX-SFP-1GE-SX-ET)
1000BASE-T (model numbers SRX-SFP-1GE-T, SRX-SFP-1GE-T-ET)
Cables and connectors
ONLINE Button–The ONLINE button on the IOC front panel does not perform any function.Controls
•
SRX1400: Front slot labeled 2
•
SRX3400: Front slots labeled 1 through 4 (except as noted below)
•
SRX3600: Front slots labeled 1 through 6 (except as noted below)
NOTE: When an SRX3400 or SRX3600 Services Gateway is in the Express Path (formerly known
as Services Offload) mode supported in Junos OS release 12.1X44-D10 and later, IOCs are only
supported in front panel slots 1 through 3. See the Junos OS documentation for more information
about Express Path mode.
Supported Slots
IOCs are cold-swap-only modules. You must power-off the services gateway before removing,
replacing, or adding IOCs.
Swapping
Copyright © 2016, Juniper Networks, Inc.10
