Network Processing I/O Card SRX1K3K-NP-2XGE-SFPP
The Network Processing I/O card (NP-IOC) SRX1K3K-NP-2XGE-SFPP
(Figure 9 on page 14) is an IOC that includes its own Network Processing Unit (NPU), so
that traffic traversing the NP-IOC does not have to also traverse the services gateway
bus to a remote NPC. This feature makes the NP-IOC well-suited to low-latency
applications . It is inserted horizontally into the midplane of the services gateway to
communicate with the SFB and to receive power. To use fiber interface media, install
enhanced small form-factor pluggable (SFP+) transceivers on the desired ports. LEDs
on the faceplate of the NP-IOC indicate port status and connectivity. The SFP+ ports
are numbered from left to right, 0-1.

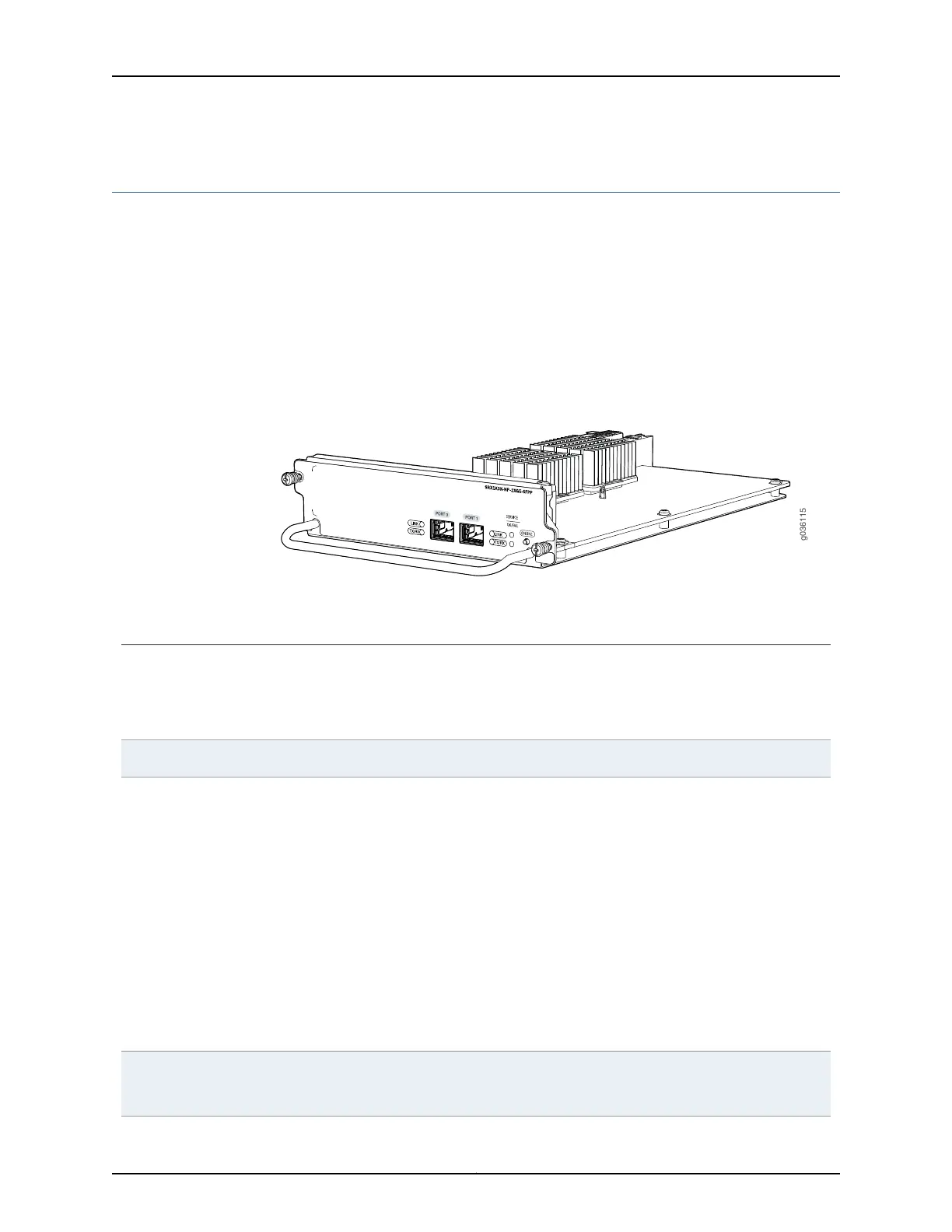

Figure 9: NP-IOC SRX1K3K-NP-2XGE-SFPP
For detailed information about supported transceivers, see the SRX Series Services Gateway
Transceiver Guide at www.juniper.net/techpubs/.
•
2-port Ethernet SFP+ NP-IOC for SRX3400, SRX3600, and SRX1400 Services Gateways
•
Power requirement: 52 W maximum
•
Weight: 2.4 lb (1.1 kg)
•
Maximum configurable MTU: 9192 bytes
Description
•
Junos OS Release 12.1X44-D10 and laterSoftware release
Two SFP+ sockets for Gigabit Ethernet transceivers
Supported SFP+ transceivers:
10GBASE-ER (model number SRX-SFP-10GE-ER)
10GBASE-LR (model number SRX-SFP-10GE-LR)
10GBASE-SR (model number SRX-SFP-10GE-SR)
10GBASE-LRM (model number SFPP-10GE-LRM)
Supported SFP+ direct attach cables:
SRX-SFP-10GE-DAC-1M
SRX-SFP-10GE-DAC-3M
Cables and connectors
•
SRX1400: Front slot labeled 2
•
SRX3400: Front slots labeled 1-4 and rear slots labeled 5-7.
•
SRX3600: Front slots labeled 1-6 and rear slots labeled 7-12.
Supported Slots
Copyright © 2016, Juniper Networks, Inc.14
SRX1400, SRX3400, and SRX3600 Services Gateway Module Guide
