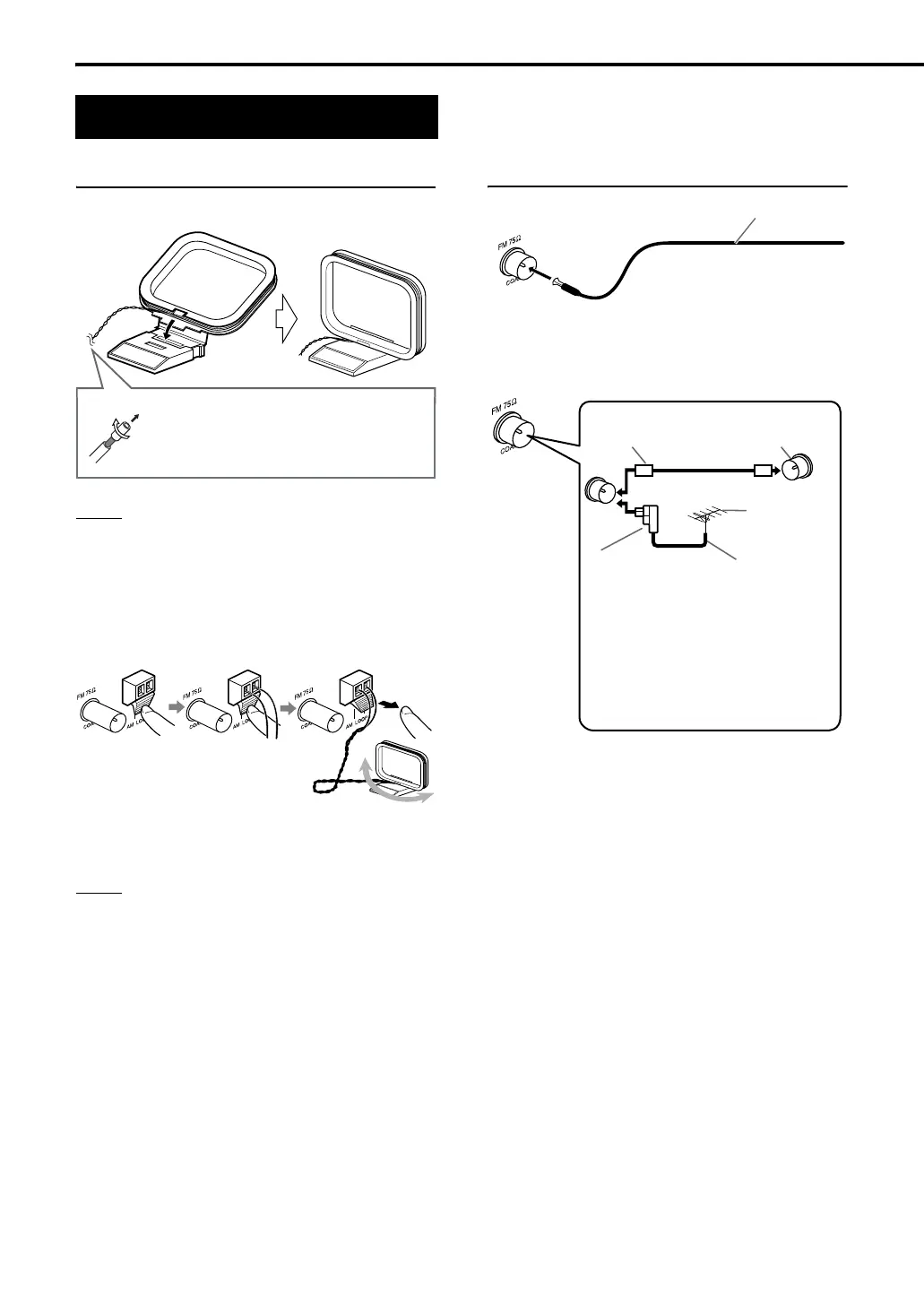

Connecting antennas
C
onnecting AM loop antenna
(
supplied
)
Setting up the AM loop antenna
NOTE
• Keep the AM loop antenna cable wrapped around
the AM loop antenna frame, otherwise the effective-
ness and sensitivity of the AM loop antenna may be
reduced.
Connecting the AM loop antenna
Turn the AM loop antenna to find the best position
for radio reception.
NOTE
• Make sure that the antenna conductors do not touch
any other terminals. This could cause poor
reception.
If insulation covers the tips of the
antenna cable, twist and pull off the
insulation.
Main unit (rear view)
Connecting FM antenna (supplied)
When radio reception with the supplied FM
antenna is poor, or when using a communal
antenna
When using an antenna other than those supplied
with this system, refer to the operation manuals for
the antenna and converter for details of
connection.
When positioning the antennas, find the best
position for reception while listening to an actual
radio program (refer to “Listening to a radio
broadcast” on page 37).
Main unit (rear view)
FM antenna
Stretch out the FM antenna
to the best position for radio
reception.
Main unit (rear view)
Antenna cable
(not supplied)
Outdoor FM
antenna
(not supplied)
Converter (not
supplied:
compatible with
300 C/75 C)
Coaxial cable
(not supplied)
Depending on the radio reception
conditions, an FM feeder antenna
(not supplied: compatible with
300 C) can be used. In this case, a
converter (not supplied) is required.
or
Communal
antenna terminal
Connecting up
– Do not turn on the power until the connection is complete –
