JVC GY-HM600U Instructions

Settings and Adjustments
Before Use
.

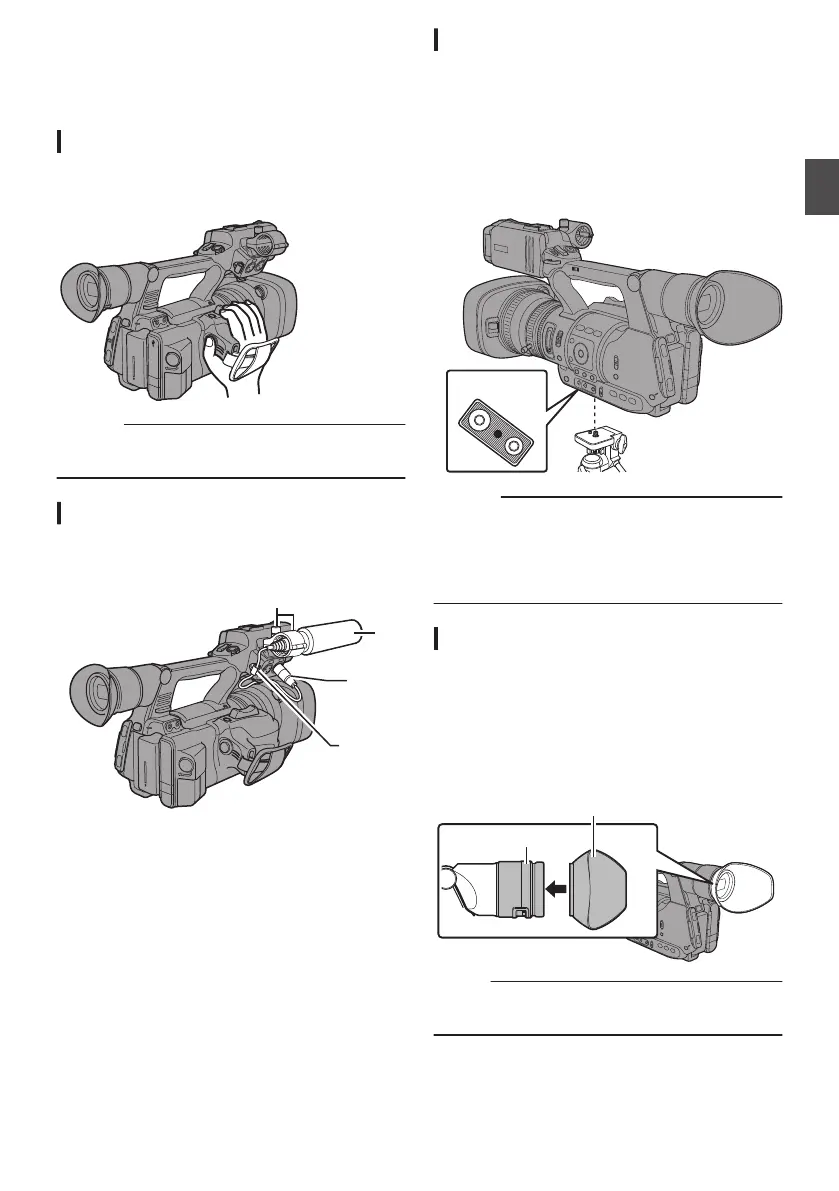

Adjusting the Grip Belt
Open the pad and adjust the position of the grip belt
accordingly.
.
AUX
INPUT2
INPUT1
DEVICE
AV
A
BAT
T.RELEA
SE
POWER
/CHG
B
HDMI
REMOTE
DC
HD/SD
SDI
REC
Caution :
0
If
the grip is loose, the camera recorder may fall
off resulting in injuries or malfunction.
Attaching an External Microphone
You can attach a separately sold microphone to the
microphone holder.
.
4
5
1, 3
2
1
Turn the knob on the microphone holder
anticlockwise to loosen and open the
microphone holder.
2
Place the microphone in the microphone
holder.
3
Turn the knob on the microphone holder
clockwise to secure the microphone.
4
Connect the microphone cable to the
[INPUT1]
or [INPUT2] terminal.
5
Pin the microphone cable to the clamp.
6
Perform the settings for the microphone
correctly.
(A P
61 [Audio Recording] )
Attaching the Tripod
Use the screw hole at the bottom of this camera
recorder.
(3/8×16UNC, 1/4×20UNC)
Use the screw hole that suits the tripod.
To prevent the camera recorder from falling off,
which may result in injuries or damages, read the
instruction manual of the tripod to be used and
make sure that it is securely attached.
.
o Bottom
Caution :
0
Use the tripod on a stable surface.
0
To prevent the camera recorder from falling,
attach securely using the rotation prevention
hole.
0
Use
screws with screw length 5 mm and below.
Attaching the Large Eyecup
0
Attach the large eyecup (supplied) to prevent
external light from entering the viewfinder
screen and cameraman’s vision.
0
Align and attach to the groove of the eyecup
mounted on the camera recorder.
0
The large eyecup can be attached in any
direction.
.
Large Eyecup (supplied)
Eyecup
Memo :
0
Do not remove the eyecup that is premounted
on the camera recorder.
25
Preparations
