JVC HR-A637E User Manual

EN 23
You can use a camcorder as the source player and your video
recorder as the recorder.
Edit From A
Camcorder

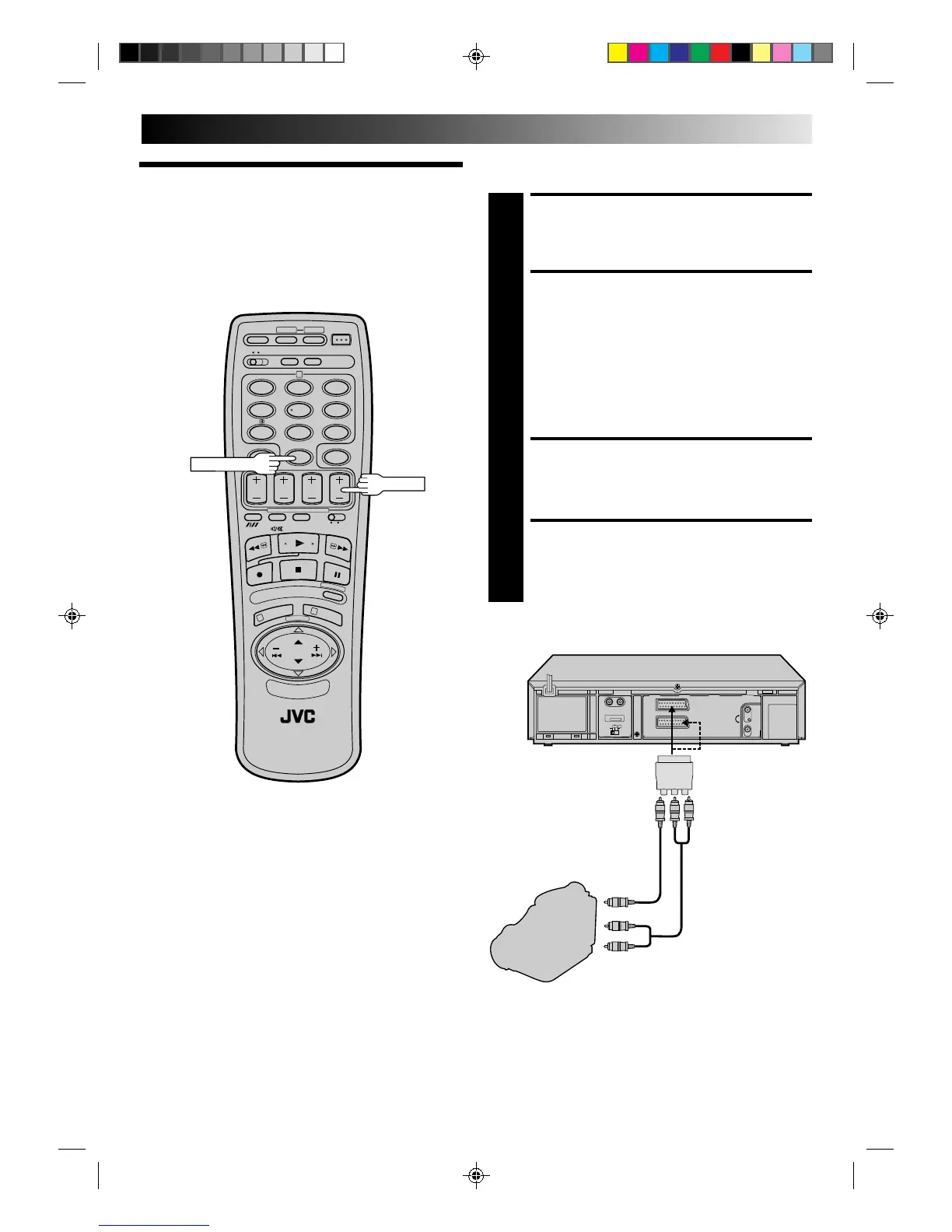

MAKE CONNECTIONS
1
Connect the camcorder’s AUDIO/VIDEO OUT
connectors to the recorder’s AUDIO/VIDEO input
connectors.
SET RECORDER’S INPUT
MODE
2
● If you’re using the AV1 IN/OUT connector . . .
. . . select “AU1” by pressing NUMBER key “0” and/or
TV PROG.
● If you’re using the AV2 IN connector . . .
. . . select “AU2” by pressing NUMBER key “0” or TV
PROG.
If you own the A637EH, make sure that the AV2
SELECT switch is set to “AV2”.
START CAMCORDER
3
Engage its Play mode.
START RECORDER
4
Engage its Record mode.
12
45
3
6
8
0
7
9
1
3
2
NUMBER "0"
TV PROG.

Player
Camcorder
Audio/Video signals
Cable adapter
Recorder
Your recorder
VIDEO
OUT
AUDIO OUT

JVC HR-A637E Specifications

Power

power requirement	AC 220 – 240 V, 50/60 Hz
power consumption	24 W

Operating Environment

operating temperature	5°C to 40°C
storage temperature	–20°C to 60°C
operating position	Horizontal only

Video/Audio

signal system	PAL-type colour signal and CCIR monochrome signal, 625 lines/50 fields
signal-to-noise ratio	45 dB
horizontal resolution	250 lines

Tuner/Timer

tv channel storage capacity	99 positions
channel coverage	VHF 47 – 89/104 – 300/302 – 470MHz, UHF 470 – 862MHz
aerial output	UHF channel 36 (Adjustable 32 – 40)

Weight and Dimensions

dimensions	400 x 94 x 338 mm
weight	4.3 kg
